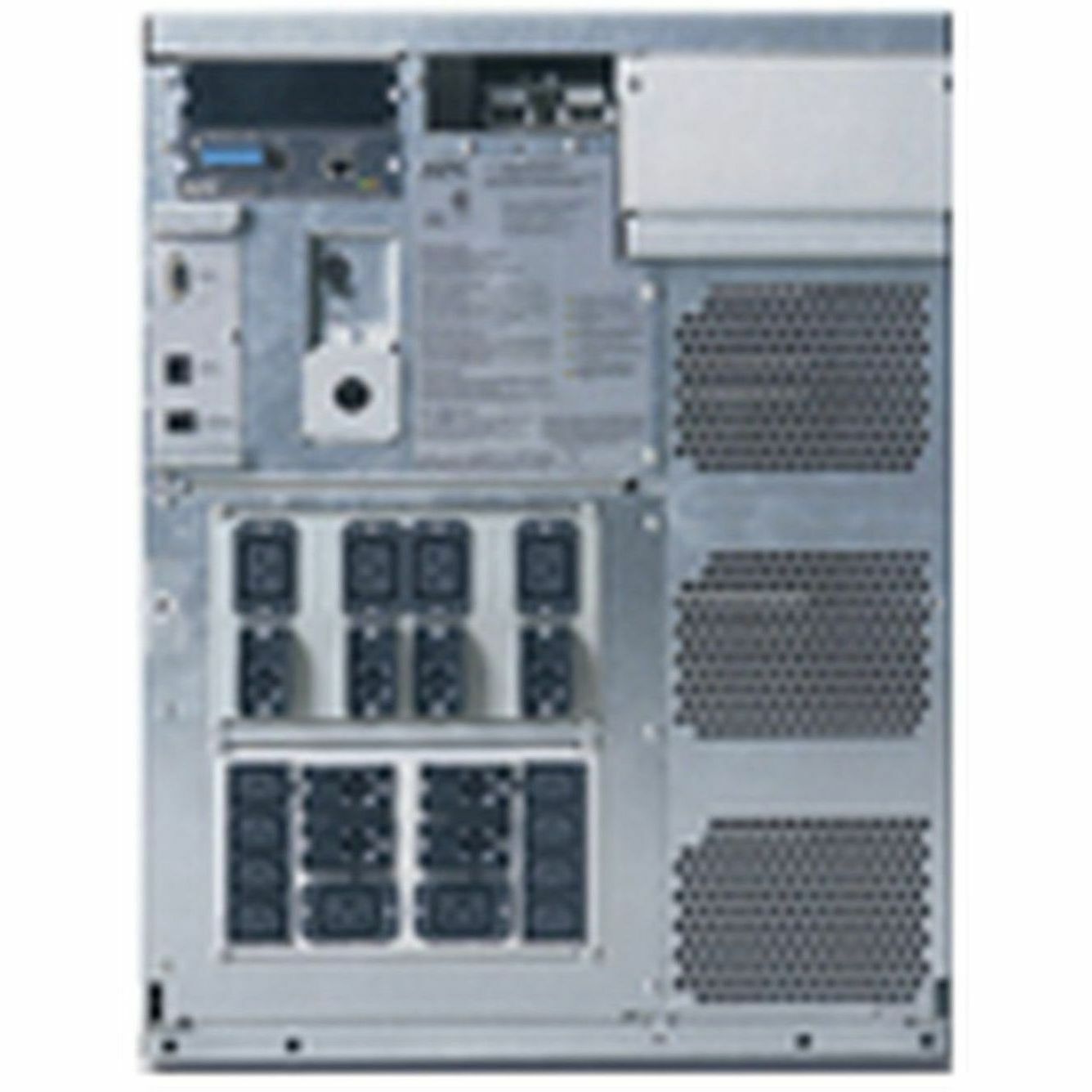

APC SYA8K8RMI SYMMETRA LX 8KVA SCALABLE 8KVA N+1 RACK-MOUNT 220/230/240V

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA8K8RMI
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	IEC 60320 C13
Receptacle Type	IEC 60320 C19
Receptacle Detail	6 x IEC 60320 C19
Receptacle Detail	8 x IEC 60320 C13
Number of Battery & Surge Outlets	15
Overload Protection	Yes
Power Description
Load Capacity (VA)	8000 VA
Input Voltage	480 V AC
Input Voltage	230 V AC
Output Voltage	230 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	36 A
Waveform Type	Sine Wave
Management
Network Management	SNMP Manageable
Bypass Switch	Manual
Bypass Switch	Automatic
Emergency Power OFF	Yes
Interfaces/Ports
Modular Slots	1 x SmartSlot
Battery Information
Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7.50 Minute
Backup/Run Time (Half Load)	20.20 Minute
Typical Battery Recharge Time	3 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	809.46 W
Physical Characteristics
Color Family	Dual Color
Product Color	Silver
Product Color	Black
Form Factor	Rack-mountable
Rack Height	13U
Mounting Location	Front
Mounting Preference	Lower
Height	22.5"
Width	18.6"
Depth	27.1"
Weight (Approximate)	392.82 lb
Miscellaneous
Package Contents	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown InfraStruXure Manager Compatible Plug-and-Play external batteries Audible and visible alarms prioritized by severity Configurable for 220, 230 or 240 nominal output voltage
Certifications & Standards	C-tick|CE|GOST|VDE
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K8RMI_ROHS_DECLARATION&p_FileName=SYA8K8RMIKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036097&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036097&lang=en-us
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace
