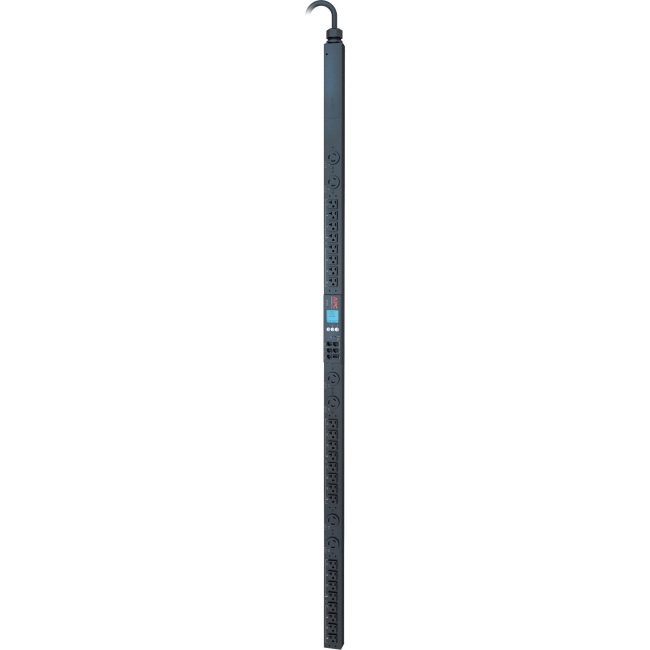

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8863 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Metered Rack PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA L21-20P |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 24 x NEMA 5-20R |
| Receptacle Detail | 6 x NEMA L6-20R |
| Protection Type | Circuit Protection |
| Power Description | |
| Input Voltage | 208 V |
| Input Voltage Range | 120 V AC - 230 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 5760 VA |
| Input Current | 20 A |
| Circuit Breaker | Yes |
| Management | |
| Management |
|
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Form Factor | Tower |
| Rack Height | 0U |
| Number of Cord/Cable | 1 |
| Cord Length | 5.97 ft |
| Height | 72" |
| Width | 2.2" |
| Depth | 1.7" |
| Weight (Approximate) | 14.51 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8863_ROHS_DECLARATION&p_FileName=AP8863KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134894&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134894&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
