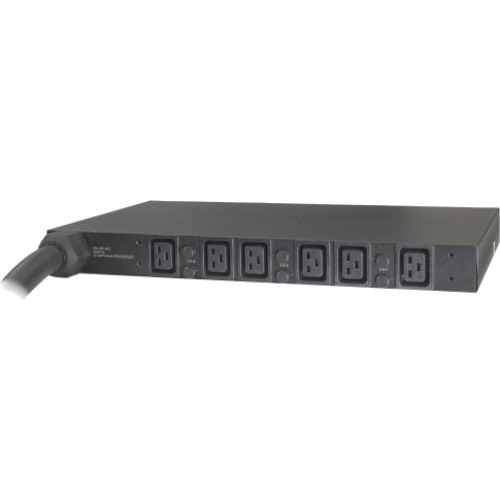

Image may not reflect the actual item.
Price: $1,081.41
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 01, 2026
No Sales Tax except these states
, PO and Wire.
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7516 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC |
| Product Line | Basic Rack |
| Product Name | Basic Rack 14.4kW 40A PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | Hubbell CS8365C |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 200 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 14.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Rear |
| Placement | Front |
| Rack Height | 1U |
| Cord Length | 7.87 ft |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 10" |
| Weight (Approximate) | 17.59 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|METI Denan|UL Listed |
| Product Take Back Program | No |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP7516_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=AP7516_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512009EN&p_File_name=ENVPEP1512009_V2.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1512009_EN&p_File_name=ENVEOLI1512009_V2.pdf |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Reach Compliance Date | 12/10/2025 |
| Halogen Content Performance | Product contains halogen above thresholds |
| Sustainable Packaging | No |
| Packaging Contains Recycled Cardboard | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Product | - |
| Number of Outlets | - |
| Surge Energy Rating | - |
| Data Line Protection | - |
| Cord Length | - |
| Mounting Style | - |
| Output Voltage | - |
| Current Rating | - |
APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments.
| Main Specifications |
| Product Description | APC Basic Rack PDU power distribution strip |
| Device Type | Power distribution strip |
| Form Factor | Rack-mountable 1U |
| Dimensions (WxDxH) | 17.2 in x 10 in x 1.7 in |
| Weight | 14.6 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output connector(s) | 6 x power IEC 320 EN 60320 C19 |
| General | |
| Device Type | Power distribution strip |
| Form Factor | Rack-mountable |
| Height (Rack Units) | 1U |
| Width | 17.2 in |
| Depth | 10 in |
| Height | 1.7 in |
| Weight | 14.6 lbs |
| Power Device | |
| Input Voltage | AC 208 V |
| Input Voltage Margin | ± 10% |
| Input Wiring | 3-phase |
| Frequency Required | 47 - 63 Hz |
| Input Connector(s) | 1 x Hubbell CS8365C |
| Output connector(s) | 6 x power IEC 320 EN 60320 C19 |
| Max Electric Current | 40 A |
| Circuit Protection | Circuit breaker |
| Miscellaneous | |
| Cables Included | 1 x power cable - 8 ft |
| Compliant Standards | UL, cUL, UL 60950, CSA 22.2 No. 60950 |
| Environmental Parameters | |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 95% |
