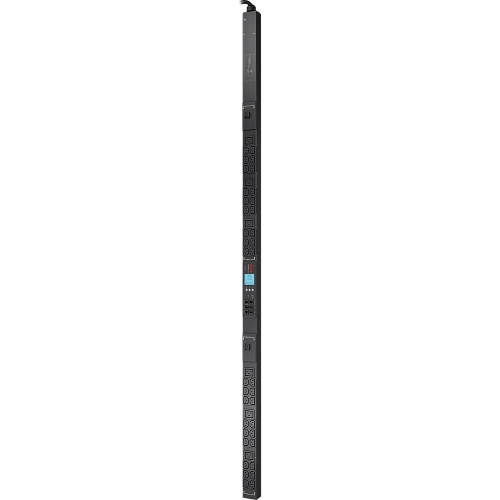

APC Metered Rack AP8841 42-Outlets PDU

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	AP8841
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Metered Rack
Product Model	AP8841
Product Name	Metered Rack AP8841 42-Outlets PDU
Product Type	PDU
Technical Information
PDU Type	Metered
Plug/Connector Type	NEMA L6-30P
Protection Type	Overload Protection
Power Description
Input Voltage	200 V
Input Voltage	208 V
Output Voltage	200 V AC
Output Voltage	208 V AC
Management
Management	Protocols: SNMP Telnet
Physical Characteristics
Mount Type	Rack-mountable
Rack Height	0U
Cord Length	9.84 ft
Height	70.5"
Width	2.2"
Depth	1.7"
Weight (Approximate)	15.08 lb
Miscellaneous
Package Contents	Metered Rack AP8841 42-Outlets PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Certifications & Standards	METI Denan|PSE|VDE
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
REACH free of SVHC	Yes
Mercury Free	Yes
Lead Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8841_ROHS_DECLARATION&p_FileName=AP8841KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033438&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033438&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace

Specifications

• Mfr Part Number: AP8841
• Output:
• Nominal Output Voltage: 200V,208V
• Maximum Total Current Draw per Phase: 30A
• Output Connections: 36x IEC 320 C13; 6x IEC 320 C19
• Overload Protection: Yes
• Input:
• Nominal Input Voltage: 200V,208V,230V
• Input Frequency: 50/60 Hz
• Regulatory Derated Input Current: 24A
• Input Connections: NEMA L6-30P
• Cord Length: 3 meters
• Number of Power Cords: 1
• Acceptable Input Voltage: 200-240 VAC
• Maximum Input Current per phase: 30A
• Maximum Input Current per phase: 30A
• Regulatory Approvals: CSA C22.2 No. 60950, IEC 60950, METI Denan, UL 60950-1, VDE
• Color: Black
• Dimensions (WxDxH): 56.0 x 44.0 x 1791.0 mm
• Weight: 6.84 kg
