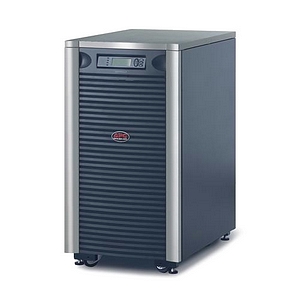

SYA8K16I APC Symmetra LX 8kVA Scalable to 16kVA N+1 Tower UPS

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA8K16I
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 8kVA Scalable to 16kVA N+1 Tower UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hard Wire 5-wire
Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	Hard Wire 3-wire
Receptacle Detail	1 x Hard Wire 3-wire
Number of Battery & Surge Outlets	1
Overload Protection	Yes
Power Description
Load Capacity (VA)	8000 VA
Input Voltage	230 V AC
Input Voltage	480 V AC
Output Voltage	230 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	36 A
Waveform Type	Sine Wave
Management
Network Management	SNMP Manageable
Bypass Switch	Manual
Bypass Switch	Automatic
Emergency Power OFF	Yes
Interfaces/Ports
Modular Slots	1 x SmartSlot
Battery Information
Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	7.50 Minute
Backup/Run Time (Half Load)	20.20 Minute
Typical Battery Recharge Time	3 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	1086.41 W
Physical Characteristics
Color Family	Dual Color
Product Color	Black
Product Color	Silver
Form Factor	Tower
Mounting Location	Front
Height	36.9"
Width	19"
Depth	28.6"
Weight (Approximate)	484.02 lb
Miscellaneous
Package Contents	Symmetra LX 8kVA Scalable to 16kVA N+1 Tower UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown Audible and visible alarms prioritized by severity InfraStruXure Manager Compatible Configurable for 220, 230 or 240 nominal output voltage
Certifications & Standards	C-tick|CE|GOST|VDE
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K16I_ROHS_DECLARATION&p_FileName=SYA8K16IKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=766162&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=766162&lang=en-us
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace

•  Symmetra LX 8kVA Scalable to 16kVA N+1 Tower
•  220/230/240V or 480/400/415V

High performance, redundant power protection with scalable power and runtime for space-constrained computer rooms and voice and data networks
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Features:
Audible Alarms
Automatic internal bypass
Automatic restart of loads after UPS shutdown
Automatic self-test
Battery modules connected in parallel
Cold-start capable
Configurable for N+1 internal redundancy
Disconnected battery notification
Field-replaceable power distribution panel
Frequency and voltage regulation
Generator Compatible
Hot-swappable batteries
Hot-swappable intelligence modules
Hot-swappable power modules
InfraStruXure Manager Compatible
Input Power Factor Correction
Intelligent Battery Management
LCD display
Manageable external batteries
Modular design
Network manageable
Plug-and-Play external batteries
Power conditioning
Power Modules connected in parallel
Predictive failure notification
Programmable Frequency
Rack/Tower Convertible
Redundant Intelligence Modules
Removable input/output wiring tray
Resettable circuit breakers
Safety-agency approved
Scalable Power Capacity
Scalable runtime
Shippable with modules installed
SmartSlot
User-replaceable batteries
User-replaceable intelligence modules
User-replaceable power modules

Includes:
CD with software
Documentation CD
Installation Guide
User Manual
Web/SNMP Management Card
