APC
APC AP7869B RACK PDU METERED 208V 0U 14.4KW 24XC13 4XC19 2XL6-30R
Mfg Part Number: AP7869B , Item #: 2838688

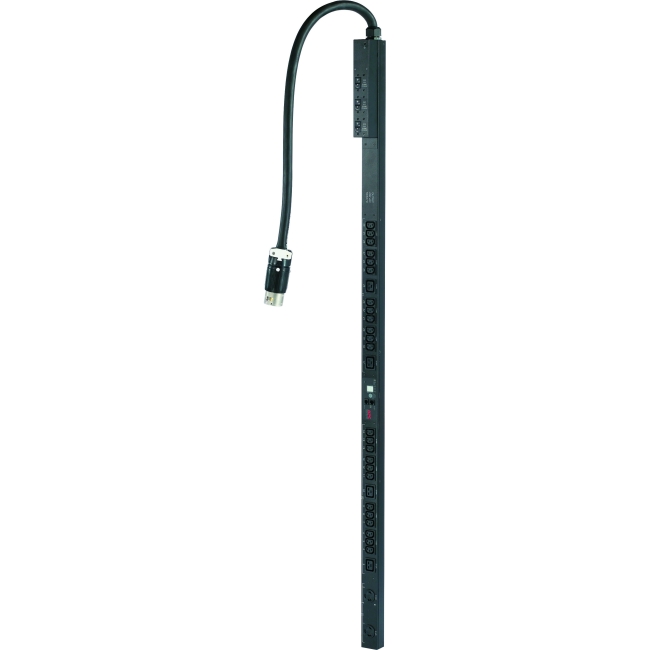

Image may not reflect the actual item.
Price: $1,659.91
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.
Metered rack Power Distribution Units (PDUs) provide real-time remote monitoring of connected loads. User-defined alarms warn of potential circuit overloads before critical IT failures occur.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7869B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | Schneider Electric |
| Product Name | 30-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug/Connector Type | CS8365 |
| Plug/Connector Detail | 1 x CS8365 |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 14.40 kW |
| Input Current | 50 A |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 3 ft |
| Height | 70" |
| Width | 2.2" |
| Depth | 3.7" |
| Weight (Approximate) | 22.84 lb |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|Industry Canada|METI Denan|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7869B_ROHS_DECLARATION&p_FileName=AP7869BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899685&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899685&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
