APC

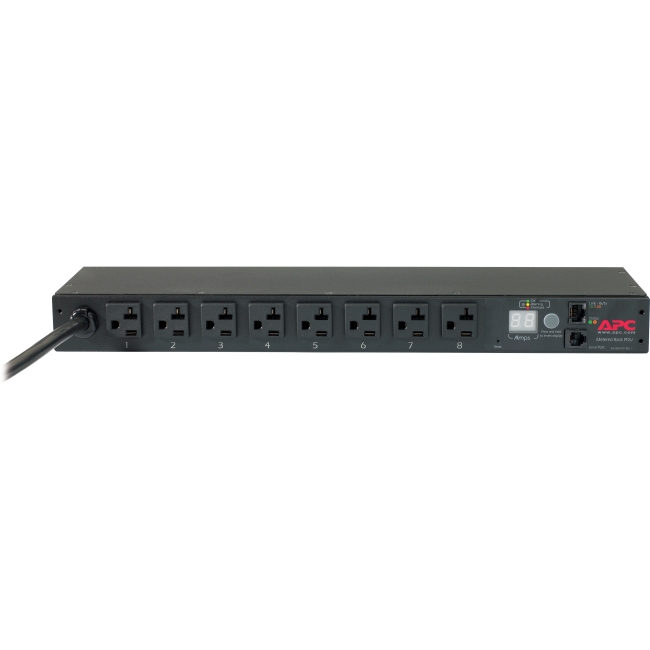

APC AP7801B RACK PDU, METERED, 1U, 20A, 120V, (8) 5-20
Mfg Part Number: AP7801B , Item #: 2782372
Image may not reflect the actual item.
Price: $569.98
Quantity:
In Stock: 1
Last Updated: Jan 21, 2026
No Sales Tax except these states
, PO and Wire.
It is a metered rack PDU designed for 1U horizontal mounting. It supports a maximum current of 20A and operates at 120V. The PDU features 8 NEMA 5-20R outlets and a 12-foot power cord with a NEMA L5-20P plug. It has a load capacity of 1920 VA and includes a cord retention bracket, installation guide, and rack mounting brackets.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP7801B |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Rack PDU, Metered, 1U, 20A, 120V, (8) 5-20 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Power Description | |
| Input Voltage | 120 V |
| Input Voltage | 100 V |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1920 VA |
| Input Current | 20 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Rear |
| Placement | Front |
| Rack Height | 1U |
| Cord Length | 11.98 ft |
| Height | 1.7" |
| Width | 17.5" |
| Depth | 4" |
| Weight (Approximate) | 3.81 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP7801B_ROHS_DECLARATION&p_FileName=AP7801BKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465899650&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465899650&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
