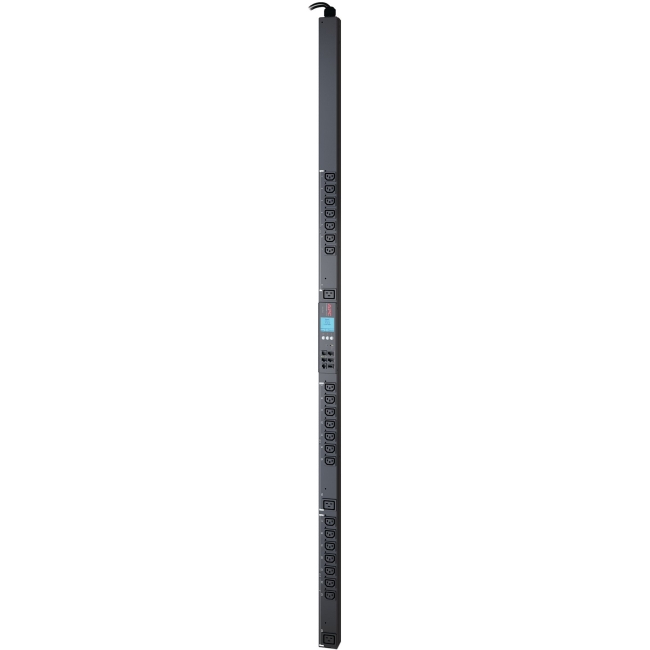

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8681 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Metered-by-Outlet Rack 24-Outlets 11kW PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered-by-Outlet |
| Plug/Connector Type | IEC 60309 20A 3P+N+PE |
| Plug/Connector Type | IEC 60309 16A 3P+N+PE |
| Power Description | |
| Input Voltage | 400 V |
| Output Voltage | 230 V AC |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Placement | Side |
| Form Factor | Tower |
| Rack Height | 0U |
| Cord Length | 5.91 ft |
| Height | 72" |
| Width | 2.2" |
| Depth | 2" |
| Weight (Approximate) | 18.14 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|UL Listed|VDE |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Mercury Free | Yes |
| Lead Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8681_ROHS_DECLARATION&p_FileName=AP8681KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=323194458&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=323194458&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | India |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
