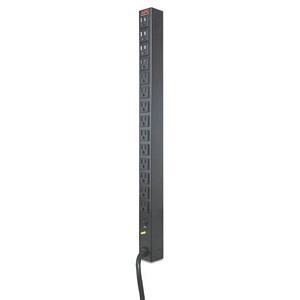

Image may not reflect the actual item.
Price: $239.00
Quantity:
In Stock: 31
Last Updated: Jan 13, 2026
No Sales Tax except these states
, PO and Wire.
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 20A and operates at 120V. The PDU features 14 NEMA 5-15R outlets, providing ample connections for IT equipment. It includes a 12-foot power cord with a NEMA L5-20P plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a toolless mounting kit.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9551 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Basic Rack |
| Product Name | Basic Rack 2400VA PDU |
| Packaged Quantity | 1 Each |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA L5-20P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 14 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V |
| Input Voltage | 100 V |
| Input Voltage Range | 120 V AC - 132 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2400 VA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mounting Preference | No Preference |
| Mount Type | Rack-mountable |
| Placement | Side |
| Rack Height | 0U |
| Cord Length | 11.98 ft |
| Height | 24" |
| Width | 1.7" |
| Depth | 1.7" |
| Weight (Approximate) | 4.85 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | cUL Listed|CSA|UL Listed |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759546&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759546&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Parts Warranty/Labor | 2 Year |
| General Information | |
| Product | - |
| Number of Outlets | - |
| Surge Energy Rating | - |
| Data Line Protection | - |
| Cord Length | - |
| Mounting Style | - |
| Output Voltage | - |
| Current Rating | - |
Zero U Rack Mounting Abilities
Output Connections (14)NEMA 5-15R
Maximum Total Current Draw 20A
Always on Outlets 16
Overload Protection No
Nominal input voltage 120
Input frequency (Hz) 50/60 Hz
Input Connection Type NEMA L5-20P
Acceptable Input Voltage 125 VAC
Maximum Line Current 20 A
Maximum Input Current 20 A
Color Black
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
