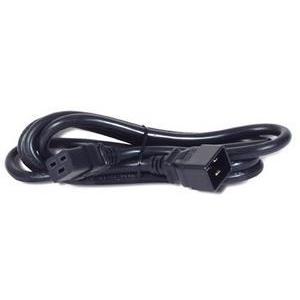

Image may not reflect the actual item.
Price: $47.35
Quantity:
In Stock: 4
Last Updated: Jan 25, 2026
No Sales Tax except these states
, PO and Wire.
AP9877 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. It is designed to handle a maximum line current of 20A, making it suitable for high-power applications. It features IEC 60320 C19 outlet and an IEC 60320 C20 connector, allowing it to connect seamlessly with a wide range of power distribution units (PDUs) and equipment. The cord has a length of 2.0 meters, providing flexibility in setup and usage, especially in larger installations.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP9877 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Model | AP9877 |
| Product Name | Power Extension Cable |
| Packaged Quantity | 1 Each |
| Product Type | Power Extension Cord |
| Technical Information | |
| First End Connector Type | IEC 60320 C20 |
| First End Connector Detail | 3-pin IEC 60320 C20 Male |
| Second End Connector Type | IEC 60320 C19 |
| Second End Connector Detail | 3-pin IEC 60320 C19 Female |
| Device Supported | PDU |
| Device Supported | Rack Server |
| Power Description | |
| Voltage Rating | 230 V AC |
| Current Rating | 20 A |
| Physical Characteristics | |
| Mounting Preference | No Preference |
| Color Family | Black |
| Product Color | Black |
| Cord Length | 6.50 ft |
| Weight (Approximate) | 0.79 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Certifications & Standards | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Product Take Back Program | No |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759710&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759710&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511004EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511004_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Conductor Color Coding | - |
| Current Rating | 16 A |
| Jacket Color | Black |
| Length | 6 ft 5 in |
| Plug | C20 |
| Power Rating | - |
| Receptacle | C19 |
| Shielding | - |
| Voltage Rating | 230 V |
| Wire Gauge - AWG | - |
APC offers power cords (also known as jumper cords), which provide connector options to fulfill a variety of power requirements. Use these power cords to connect your equipment to an APC Rack-Mount power distribution unit (PDU)/outlet strip, MasterSwitch product, Automatic Transfer Switch (ATS), or UPS. These power cords can also be used to connect your APC Rack-Mount (PDU)/Outlet Strip to a power source, such as an APC UPS, ATS, or separate branch circuit.
| Main Specifications |
| Product Description | APC power cable - 6.5 ft |
| Type | Power cable |
| Length | 6.5 ft |
| Connector(s) | 1 x power IEC 320 EN 60320 C19 - female |
| Connector(s) (Other Side) | 1 x power IEC 320 EN 60320 C20 - male |
| General | |
| Type | Power cable |
| Length | 6.5 ft |
| Color | Black |
| Connectivity | |
| Connector(s) | 1 x power IEC 320 EN 60320 C19 - female |
| Connector(s) (Other Side) | 1 x power IEC 320 EN 60320 C20 - male |
