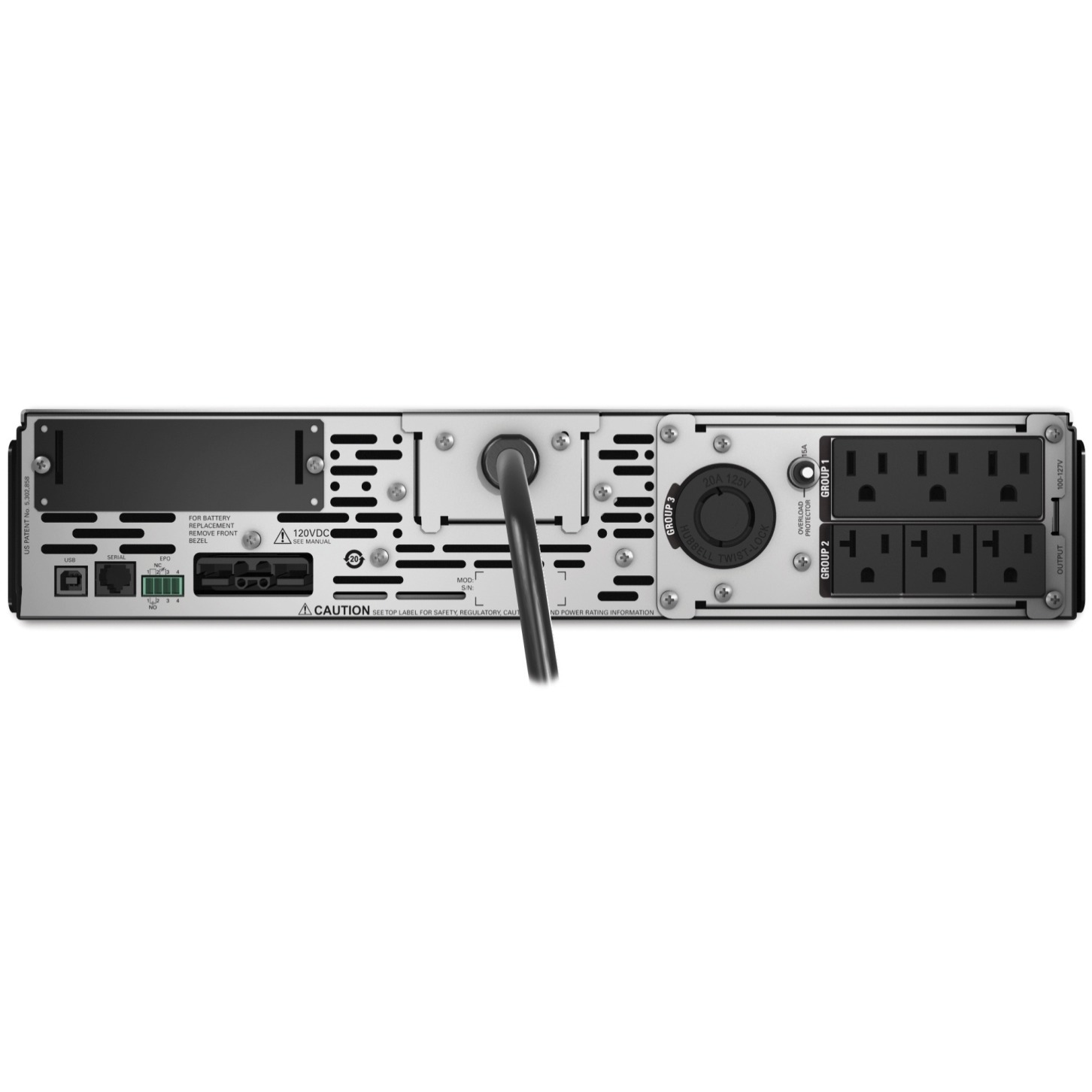

APC SMX2KR2UX145 SMART-UPS X 2000VA RACK/TOWER LCD 100-127V WITH 10 FT INPUT CORD

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX2KR2UX145
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS X
Product Name	Smart-UPS X 2000VA Tower/Rack Convertible UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P
Receptacle Detail	3 x NEMA 5-15R
Receptacle Detail	1 x NEMA L5-20R
Receptacle Detail	3 x NEMA 5-20R
Number of Battery & Surge Outlets	7
Cord Length	10 ft
Transfer Time	4 ms
Application/Usage	Switch
Application/Usage	Server
Application/Usage	POS
Application/Usage	Network Device
Application/Usage	Hub
Application/Usage	Router
Power Description
Load Capacity (VA)	1920 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V
Input Voltage Range	75 V AC -154 V AC
Input Voltage Range	70 V AC - 153 V AC
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	540 J
Management
Alarm	Low Battery
Alarm	On Battery
Alarm	Configurable Delay
Controls/Indicators
Status Indicators	LED: On Line On Battery Replace Battery Overload Indicators
Interfaces/Ports
EPO Port	Yes
USB (HID Compliant) Port	Yes
Battery Information
Battery Chemistry	Lead Acid
Battery Life	5 Year
Typical Battery Recharge Time	3 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	10000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	59.49 W
Physical Characteristics
Color Family	Black
Product Color	Black
Height	3.3"
Width	17"
Depth	26.3"
Rack Height	2U
Form Factor	Tower/Rack Convertible
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	84.59 lb
Miscellaneous
Package Contents	Smart-UPS X 2000VA Tower/Rack Convertible UPS CD With Software Documentation CD Installation Guide Rack Mounting Hardware Rack Mounting Brackets Rack Mounting Support Rails Removable Support Feet Smart UPS Signalling RS-232 Cable USB Cable
Certifications & Standards	BSMI|CSA|NOM|TÜV|VCCI Class A
Software Included	Powerchute Serial Edition
Optimized Energy Efficiency	Yes
Product Take Back Program	No
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2KR2UX145_ROHS_DECLARATION&p_FileName=SMX2KR2UX145KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557301550&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557301550&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
