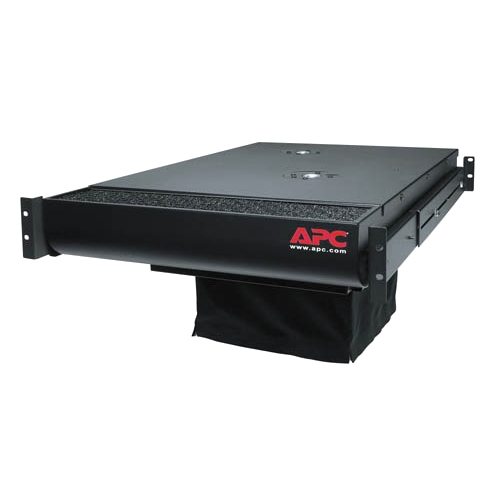

APC ACF001 Airflow Cooling System

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	ACF001
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Model	ACF001
Product Name	ACF001 Airflow Cooling System
Packaged Quantity	1
Product Type	Airflow Cooling System
Technical Information
Cooling Power Consumption	3500 W
Maximum Air Flow	503 CFM
Plug Type	NEMA 5-15P
Receptacle Type	IEC 60320 C13
Mounting Preference	Lower
Power Description
Input Voltage	120 V
Input Current	2 A
Power Consumption	240 W
Plug/Connector Type	IEC 60320 C13
Physical Characteristics
Compatible Rack Height	2U
Color Family	Black
Product Color	Black
Height	3.5"
Width	16.6"
Depth	29"
Weight (Approximate)	41.09 lb
Miscellaneous
Package Contents	ACF001 Airflow Cooling System Rack Mounting brackets User Manual
Certifications & Standards	UL Recognized
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=758436&lang=en-us
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace

The Air Distribution Unit is a unique 2U rack-mounted fan unit that works with an existing precision A/C system to deliver cool air to the equipment contained in a rack enclosure. The Air Distribution Unit connects into the raised floor and pulls supply air directly into the enclosure thereby preventing the conditioned air from mixing with warmer room air before it reaches the equipment. In environments without raised floors, the Air Distribution unit pulls supply air from around the bottom of the enclosure where the air is the coolest. With dual fans, the unit works to eliminate dangerous hot spots by boosting the airflow within the enclosure and can improve air delivery in poor static pressure areas, solving many of the heat issues facing today's data center manager.

Features:
Utilizes the existing precision A/C system to deliver increased airflow to rack enclosures with dangerous hot spots or with low static pressure due to it's location on the raised floor.
Pulls the conditioned supply air directly from the raised floor plenum into the enclosure; or from around the bottom of the enclosure, where the air is the coolest.
Provides additional airflow to maintain an optimal environment for densely-packed equipment.
Improves the quality of the air reaching the equipment by providing 30% efficient filtration as per the ASHRAE 52.1-1992 standard.
Provides an air pattern to deliver more equalized flow from the top to bottomof the rack enclosure. Even the equipment in the top of the enclosure receives lower inlet temperatures, which improves the life of the equipment.
Ensures maximum uptime and continuous availability by providing redundancy through dual independently controlled blower fans and A-B power input feeds.
The unit's depth is adjustable to fit APC's NetShelter enclosure or other 19" EIA-310-D enclosure with a removable bottom plate. The flexible design allows the unit to also be used in non-raised floor environments by removing the bellows
