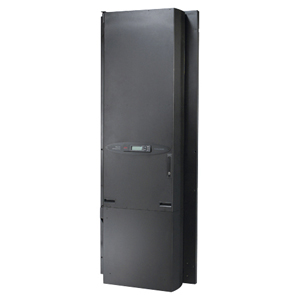

High-density equipment creates an environment where traditional air distribution methods are often not effective. Densely packed enclosures can cause IT equipment to overheat, resulting in downtime. The Rack Air Removal Unit SX captures exhaust heat, returns the warm air to the plenum and eliminates hot spots from the data center. Through automatic fan speed control based upon temperature, the fans will self-adjust for optimal performance. With a unit-mounted LCD display, users can view temperatures at the rack, monitor alarm conditions and adjust unit set points. The integrated network management card allows for remote monitoring and control. This space-saving solution mounts to the back of either the NetShelter SX or VX enclosure, requiring zero U space.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | ACF402 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Model | ACF402 |
| Product Name | ACF402 Air Cooling System |
| Product Type | Airflow Cooling System |
| Technical Information | |
| Cooling Power Consumption | 16.50 kW |
| Maximum Air Flow | 1600 CFM |
| Application/Usage | IT |
| Plug Type | NEMA 5-15P |
| Receptacle Type | IEC 60320 C14 |
| Controls/Indicators | |
| Indicators & Controls | Multi-function LCD status and control console |
| Power Description | |
| Input Voltage | 120 V |
| Input Voltage | 100 V AC |
| Input Voltage | 208 V AC |
| Input Voltage | 200 V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 1200 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 75.5" |
| Width | 29" |
| Depth | 10" |
| Weight (Approximate) | 170.35 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | cUL Listed|CE|UL Listed|VDE |
| Green Premium | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65033146&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65033146&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVPEP1512008_EN |
| REACH free of SVHC | Yes |
| Lead Free | Yes |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year (parts only) |
