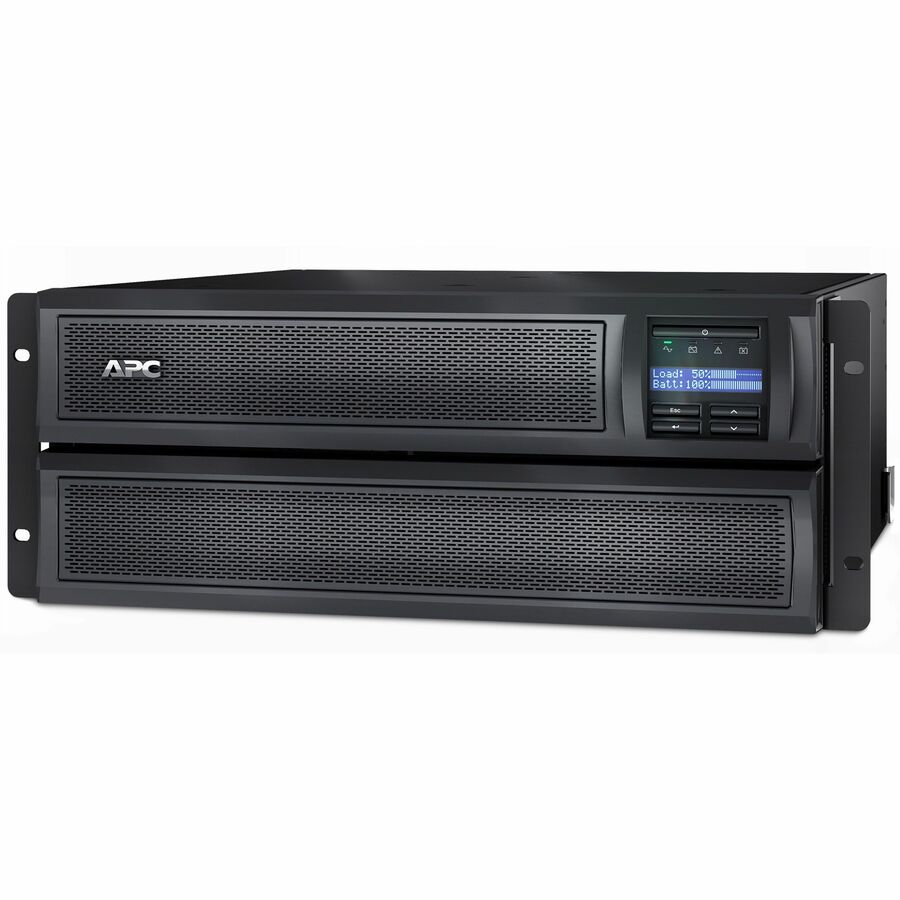

APC SMX2000LVNCUS SMART-UPS X 2000VA SHORT DEPTH RT LCD 100-127V W/ NETWORK CARD TAA

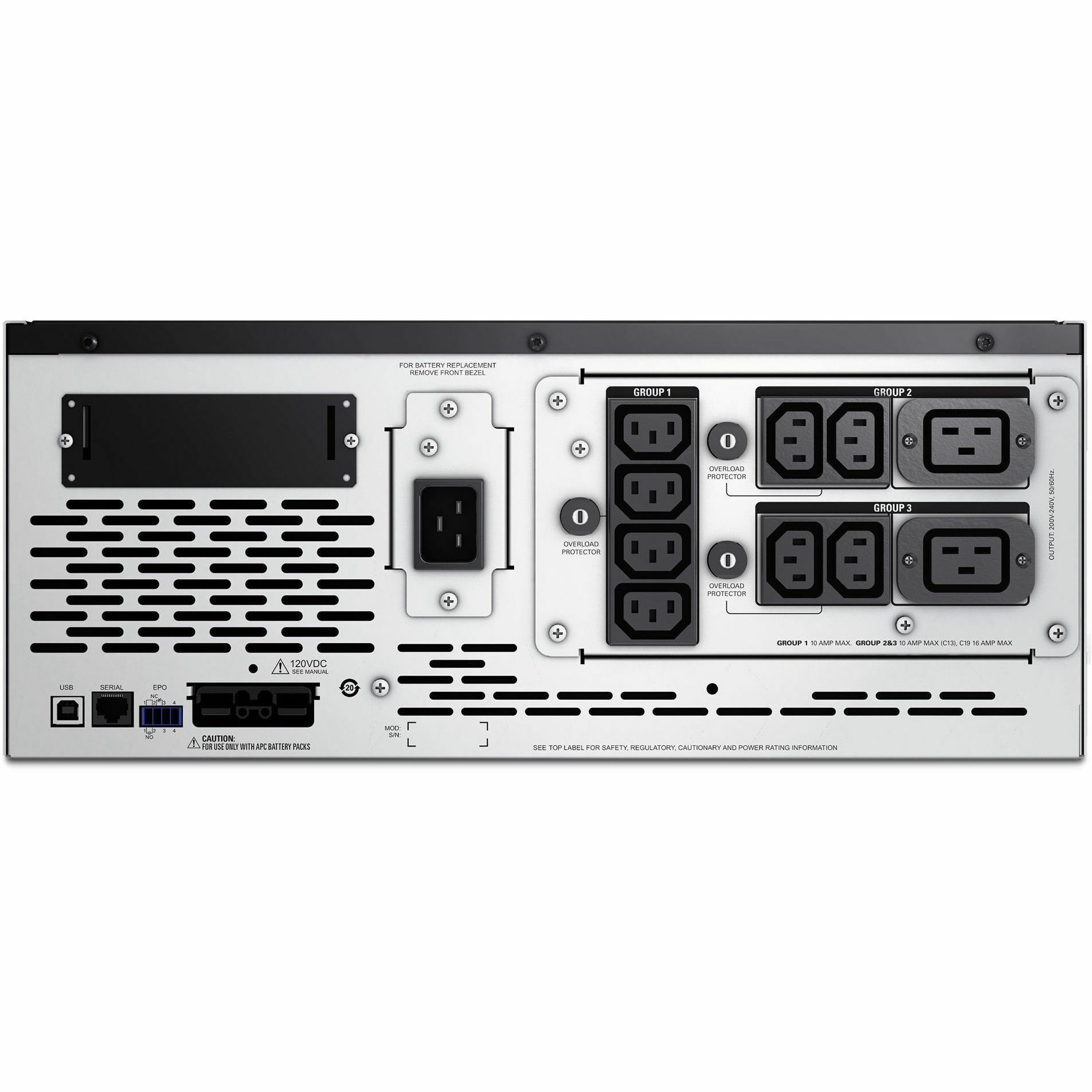

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX2000LVNCUS
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS X
Product Name	Smart-UPS X 1.92KVA Rack/Tower Convertible UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P
Receptacle Detail	1 x NEMA L5-20R
Receptacle Detail	6 x NEMA 5-15R
Receptacle Detail	3 x NEMA 5-20R
Number of Battery & Surge Outlets	10
Cord Length	8 ft
Transfer Time	8 ms
Application/Usage	Server
Application/Usage	Network Device
Application/Usage	Data Storage
Application/Usage	Network Hub
Application/Usage	Edge Computing
Application/Usage	Switch
Application/Usage	Security System
Application/Usage	POS Terminal
Application/Usage	Router
Power Description
Load Capacity (VA)	1920 VA
Load Capacity (Watt)	1800 W
Input Voltage	120 V
Input Voltage Range	70 V AC - 153 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave
Surge Energy Rating	540 J
Interfaces/Ports
Network (RJ-45)	Yes
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	10.90 Minute
Typical Battery Recharge Time	3 Hour
Physical Characteristics
Color Family	Black
Product Color	Black
Height	17"
Width	7"
Depth	19"
Rack Height	4U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	85.19 lb
Miscellaneous
Package Contents	Smart-UPS X 1.92KVA Rack/Tower Convertible UPS CD with software Documentation CD Installation guide Network management card Rack mounting brackets Rack mounting hardware Rack mounting support rails Smart UPS signalling RS-232 cable USB cable
Certifications & Standards	BSMI|CSA|NOM|TAA compliance|TÜV|VCCI Class A
Energy Star	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2000LVNCUS_ROHS_DECLARATION&p_FileName=SMX2000LVNCUSKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=490326954&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=490326954&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
REACH free of SVHC	No
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	$150000 Lifetime
