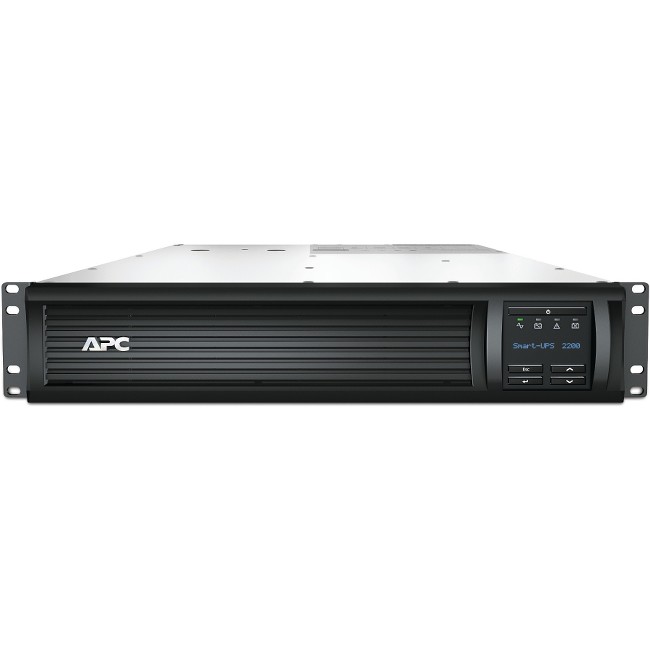

APC SMT2200RM2UC SMART UPS 2200VA LCD RM 2U 120V WITH SMARTCONNECT

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMT2200RM2UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Name	Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-20P
Receptacle Type	NEMA 5-20P
Receptacle Detail	2 x NEMA 5-20R
Receptacle Detail	6 x NEMA 5-15R
Number of Battery & Surge Outlets	8
Cord Length	8 ft
Transfer Time	10 ms
Power Description
Load Capacity (VA)	1920 VA
Load Capacity (Watt)	1980 W
Input Voltage	120 V
Input Voltage Range	75 V AC - 154 V AC
Output Voltage	120 V AC
Waveform Type	Sine Wave
Surge Energy Rating	530 J
Management
Network Management	SmartConnect
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	6.60 Minute
Typical Battery Recharge Time	3 Hour
Hot Swappable	Yes
Physical Characteristics
Color Family	Black
Product Color	Black
Height	3.4"
Width	17"
Depth	26.9"
Rack Height	2U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	93.28 lb
Miscellaneous
Package Contents	Smart-UPS 2200VA LCD RM 2U 120V with SmartConnect Rack mounting brackets Rack mounting support rails Smart UPS signalling RS-232 cable USB cable
Certifications & Standards	cULus|ENERGY STAR V2.0 (USA)
Software Included	Powerchute Serial Edition
Energy Star	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200RM2UC_ROHS_DECLARATION&p_FileName=SMT2200RM2UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940379&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940379&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
California Proposition 65 Warning	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	$150000 Lifetime

Specifications

• Mfr Part Number: SMT2200RM2UC
• Output:
  • Output Power Capacity: 1920 Watts / 1920 VA
  • Max Configurable Power: 1980 Watts / 2200 VA
  • Nominal Output Voltage: 120 V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Other Output Voltages: 110, 127
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: 6x NEMA 5-15R (Battery Backup); 2x NEMA 5-20R (Battery Backup)
  • Transfer Time: 6ms typical, 10ms maximum
• Input:
  • Nominal Input Voltage: 120 V
  • Input Frequency: 50/60 Hz +/-3Hz (auto sensing)
  • Input Connections: NEMA 5-20P
  • Cord Length: 8 ft / 2.44 m
  • Input voltage range for main operations: 82 ~ 143 V
  • Input voltage adjustable range for mains operation: 75 ~ 154 V
  • Number of Power Cords: 1
  • Other Input Voltages: 110, 127
• Batteries & Runtime:
  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte - leakproof
  • Typical recharge time: 3 hours
  • Expected Battery Life: 3 - 5
  • RBC Quantity: 1
• Communications & Management:
  • Interface Ports: RJ-45 Serial , SmartSlot , USB
  • Control panel: LED status display with On Line, On Battery, Replace Battery and Overload indicators, Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
  • Emergency Power Off (EPO): Yes
  • Available SmartSlot Interface Quantity: 1
• Surge energy rating: 530 Joules
• Audible noise at 1 meter from surface of unit: 55 dBA
• Online Thermal Dissipation: 215 BTU/hr
• Approvals: CSA, ENERGY STAR V1.1 (USA), FCC Part 15 Class A, UL 1778
• Rack Height: 2U
• Color: Black
• Dimensions(WxDxH): 18.90 x 26.89 x 3.39 inch / 480.0 x 683.0 x 86.0 mm
• Weight: 93.08 lbs / 42.31 kg
