APTF10KT01 APC - Step-Down 10kVA Rack-mountable Transformer
Mfg Part Number: APTF10KT01 , Item #: 500332
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.

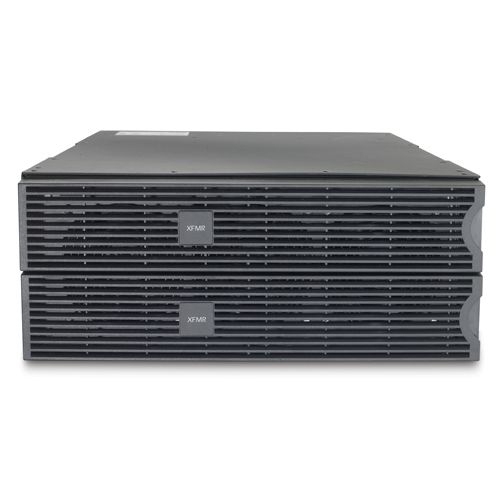

Image may not reflect the actual item.
Price: $2,644.30
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.
The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | APTF10KT01 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | Step-Down 10kVA Rack-mountable Transformer |
| Packaged Quantity | 1 Each |
| Product Type | Step Down Transformer |
| Technical Information | |
| Power Rating | 10000 VA |
| Input Receptacle Type | Hard Wire 3-wire (2PH + G) |
| Output Receptacle Type | NEMA L5-20R |
| Output Receptacle Type | NEMA L14-30R |
| Output Receptacle Type | Hard Wire 3-wire (2PH + G) |
| Output Receptacle Type | Hard Wire 4-wire (2PH+N+G) |
| Output Receptacle Detail | 2 x NEMA L14-30R |
| Output Receptacle Detail | 1 x Hard Wire 4-wire (2PH+N+G) |
| Output Receptacle Detail | 2 x NEMA L5-20R |
| Output Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G) |
| Power Description | |
| Input Voltage | 208 V |
| Output Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 120 V |
| Maximum Line Current | 60 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 17" |
| Depth | 29.5" |
| Weight (Approximate) | 220.46 lb |
| Miscellaneous | |
| Additional Information | Acceptable Input Voltage: 200-240 VAC |
| Package Contents | |
| Certifications & Standards | C-tick|CE|CSA|GOST|UL Listed|VDE |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APTF10KT01_ROHS_DECLARATION&p_FileName=APTF10KT01KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759846&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759846&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
