General Information | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | SUA5000R5TXFMR |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Smart-UPS |

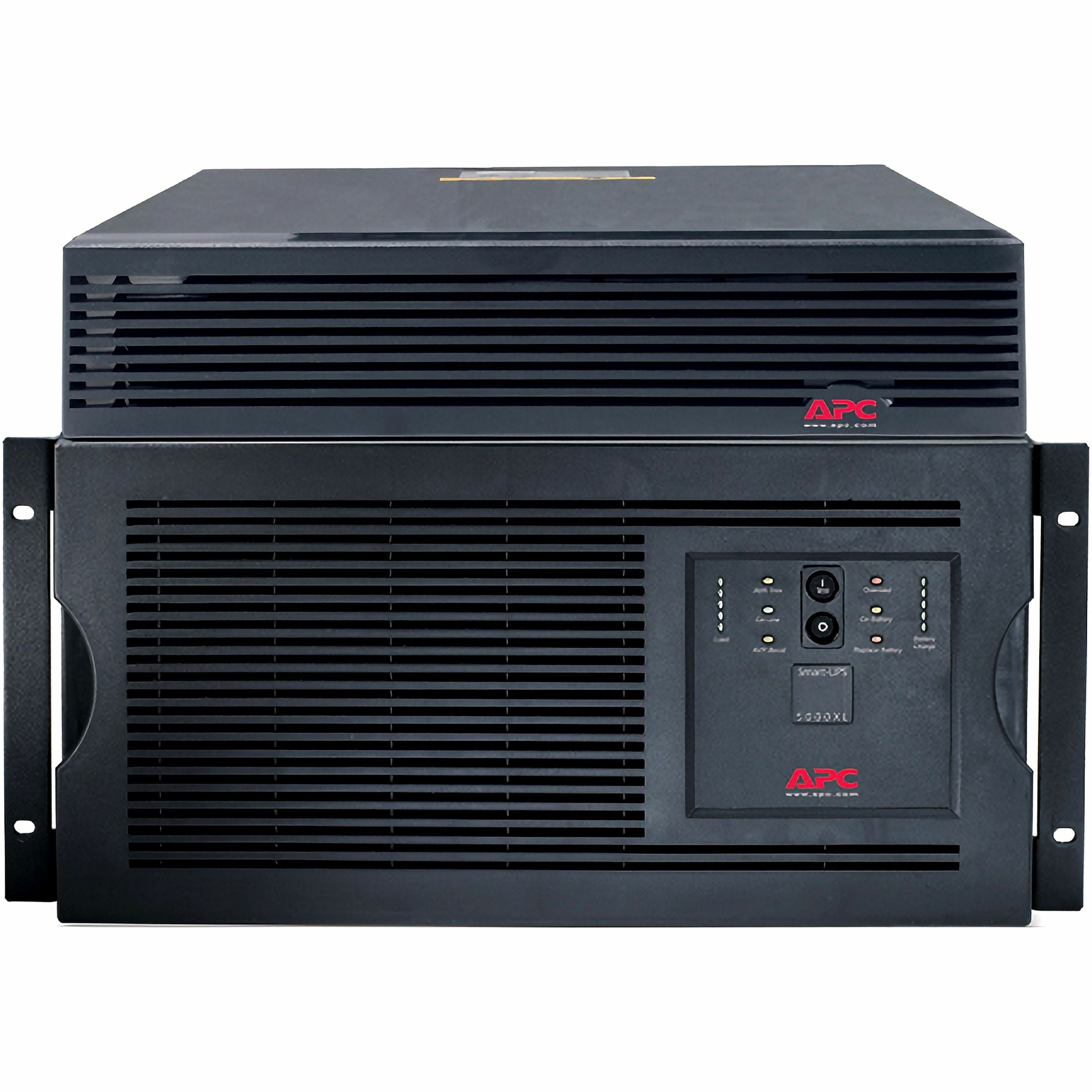

Product Name | Smart-UPS 5000VA Rack-mountable UPS |
Product Type | Line-interactive UPS |
Technical Information | |
Plug/Connector Type | NEMA L6-30P |
Receptacle Type | NEMA L6-30P |
Receptacle Detail | 1 x NEMA L6-30R |
Receptacle Detail | 2 x NEMA L6-20R |
Receptacle Detail | 12 x NEMA 5-20R |
Number of Battery & Surge Outlets | 15 |
Dataline Protection | RJ-45 |
Emergency Power OFF | Optional |
Cord Length | 8 ft |
Power Description | |
Load Capacity (VA) | 5000 VA |
Load Capacity (Watt) | 4000 W |
Input Voltage | 208 V |
Output Voltage | 120 V AC |
Output Voltage | 208 V AC |
Waveform Type | Sine Wave |
Surge Energy Rating | 1020 J |
Management | |
Network Management | SNMP Manageable |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Total Number of Expansion Slots | 1 |
Battery Information | |
Battery Characteristics | Spill-proof, Maintenance-free |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 9.40 Minute |
Backup/Run Time (Half Load) | 26.70 Minute |
Typical Battery Recharge Time | 3 Hour |
Physical Characteristics | |
Color Family | Black |
Product Color | Black |
Height | 12.2" |
Width | 19" |
Depth | 25" |
Rack Height | 7U |
Form Factor | Rack-mountable |
Mounting Preference | Lower |
Mounting Location | Front |
Weight (Approximate) | 320.66 lb |
Miscellaneous | |
Package Contents | |
Certifications & Standards | CSA |
Software Included | PowerChute Management Software |
Optimized Energy Efficiency | Yes |
Product Take Back Program | Yes |
Mercury Free | Yes |
RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA5000R5TXFMR_ROHS_DECLARATION&p_FileName=SUA5000R5TXFMRKIT_ROHS_DECLARATION_US.pdf |
REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035739&lang=en-us |
EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035739&lang=en-us |
Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN |
End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
REACH free of SVHC | No |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 2 Year |
Additional Warranty Information | 2 years repair or replace, optional on-site warranties available, optional extended warranties available |
Directly Connected Equipment Guarantee | $150000 Lifetime |
General Information | |
Power Rating | - |
Output Voltage Rating | - |
Number of Outputs | - |
Runtime-Full Load | - |
Runtime-Half Load | - |
