SYH4K6RMT APC Symmetra 4kVA Scalable to 6kVA Rack-mountable UPS

Highly available single phase UPS features redundant and scalable double-conversion on-line power protection

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYH4K6RMT
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Name	Symmetra 4kVA Scalable to 6kVA Rack-mountable UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	NEMA L6-30P
Plug/Connector Type	Hard Wire 3-wire
Receptacle Type	NEMA L6-30P 30A
Receptacle Detail	2 x NEMA L6-20R
Receptacle Detail	1 x NEMA L6-30R
Number of Battery & Surge Outlets	3
Cord Length	10 ft
Power Description
Load Capacity (VA)	4000 VA
Input Voltage	208 V AC
Output Voltage	208 V AC
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Management
Network Management	SNMP Manageable
Bypass Switch	Internal
Emergency Power OFF	Yes

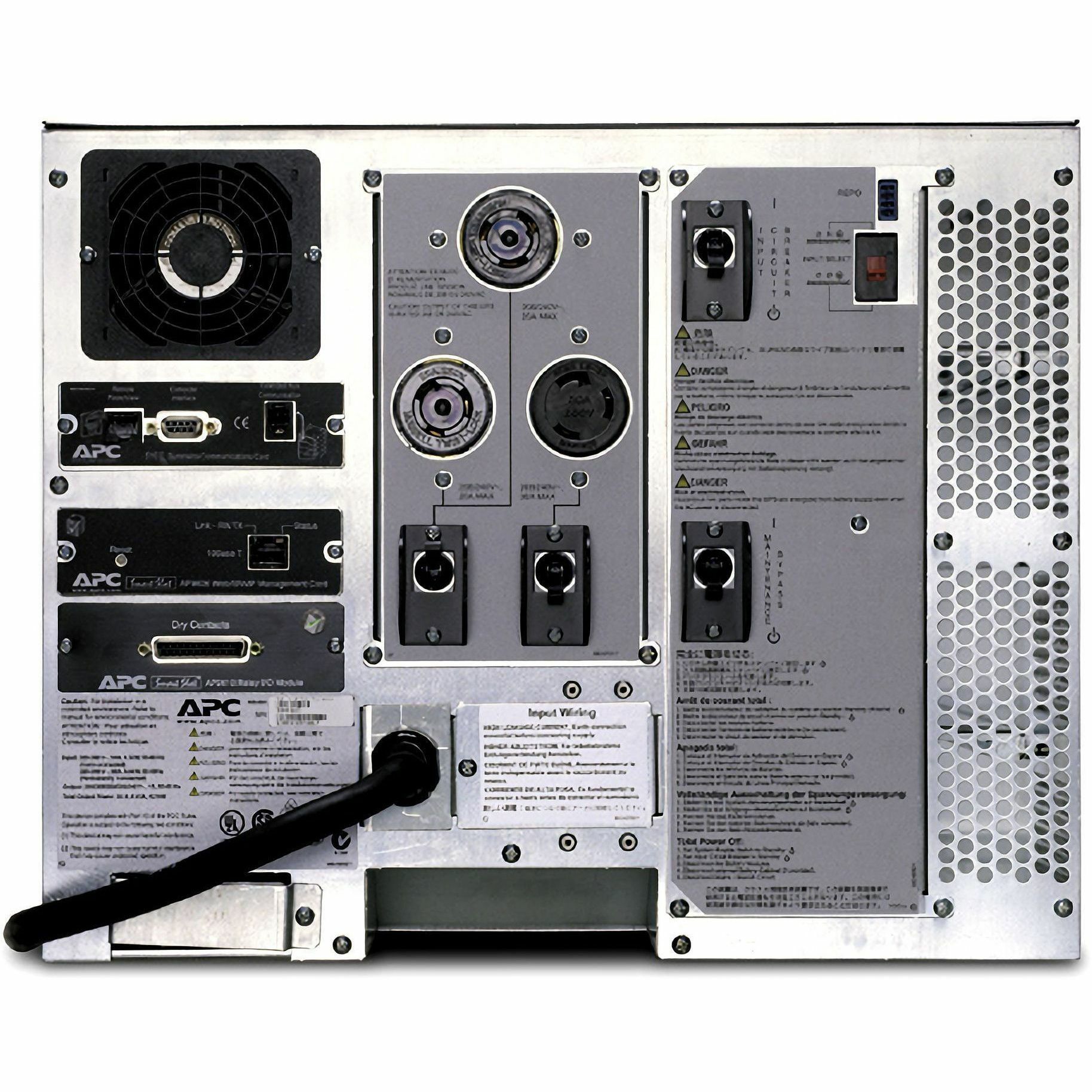

Interfaces/Ports
Serial Port	Yes
Network (RJ-45)	Yes
Modular Slots	2 x Battery
Modular Slots	1 x SmartSlot
Battery Information
Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	12.70 Minute
Backup/Run Time (Half Load)	30.20 Minute
Typical Battery Recharge Time	4 Hour
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Rack Height	8U
Mounting Location	Front
Mounting Preference	Lower
Height	14"
Width	19"
Depth	28.7"
Weight (Approximate)	229.48 lb
Miscellaneous
Package Contents	Symmetra 4kVA Scalable to 6kVA Rack-mountable UPS CD with software Rack mounting brackets Rack mounting support rails User manual
Certifications & Standards	CSA
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYH4K6RMT_ROHS_DECLARATION&p_FileName=SYH4K6RMTKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036261&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036261&lang=en-us
California Proposition 65 Warning	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC	No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace, optional on-site warranties available, optional extended warranties available

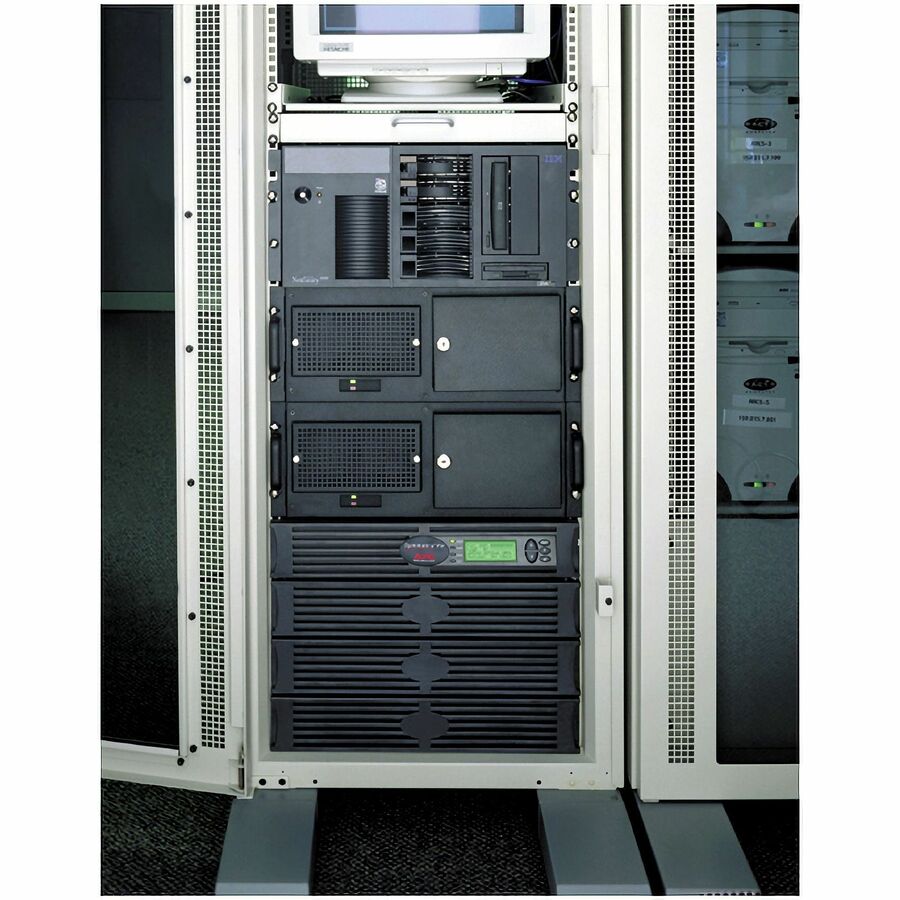

The Symmetra rackmount brings the proven and patented Symmetra Power Array technology in a rackmountable form. With more servers, storage products and other mission-critical IT equipment becoming rack-based, the need is increasing for innovative rack based power solutions. The Symmetra 4KVA rackmount can provide N+1 redundancy in just 8U of rack space.

The Symmetra Rack Mount is an ideal solution for branch office locations, mission-critical networking equipment, or any customer requiring a rack-based product within this power range. In addition to the advantages of hot-swappability and redundancy, rack users can also benefit from Symmetra's self-diagnosing, scaleable components and integrated Web/SNMP management features. The unit can also be used in a floor standing stand alone applications.
