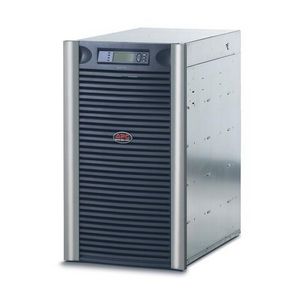

SYA8K16RMP APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA8K16RMP
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hard Wire 4-wire
Receptacle Type	NEMA L5-20R
Receptacle Type	NEMA L14-30R
Receptacle Detail	4 x NEMA L14-30R
Receptacle Detail	8 x NEMA L5-20R
Number of Battery & Surge Outlets	13
Overload Protection	Yes
Power Description
Load Capacity (VA)	8000 VA
Input Voltage	208 V AC
Output Voltage	120 V AC
Output Voltage	208 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	37 A
Waveform Type	Sine Wave
Management
Network Management	SNMP Manageable
Bypass Switch	Automatic
Bypass Switch	Manual
Bypass Switch	External (Optional)
Emergency Power OFF	Yes
Interfaces/Ports
Modular Slots	1 x SmartSlot
Battery Information
Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5.90 Minute
Backup/Run Time (Half Load)	17 Minute
Typical Battery Recharge Time	3 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	1463.89 W
Physical Characteristics
Color Family	Dual Color
Product Color	Black
Product Color	Silver
Form Factor	Rack-mountable
Rack Height	19U
Mounting Location	Front
Mounting Preference	Lower
Height	32.9"
Width	18.6"
Depth	27.1"
Weight (Approximate)	437.93 lb
Miscellaneous
Package Contents	Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown Audible and visible alarms prioritized by severity InfraStruXure Manager Compatible Plug-and-Play external batteries Configurable for 120/208 or 120/240 output voltage
Certifications & Standards	CSA
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K16RMP_ROHS_DECLARATION&p_FileName=SYA8K16RMPKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036092&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036092&lang=en-us
California Proposition 65 Warning	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace

•  Power array ( rack-mountable )
•  AC 208/240 V
•  8000 VA
•  UPS battery lead acid
•  EN
•  Fast EN
•  1 output connector(s)
•  19 U
•  19"


Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
