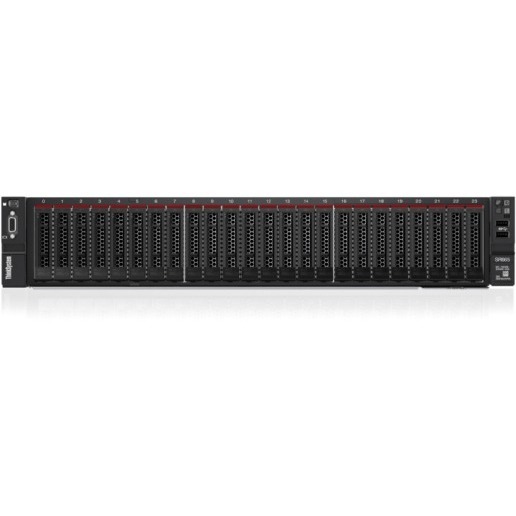

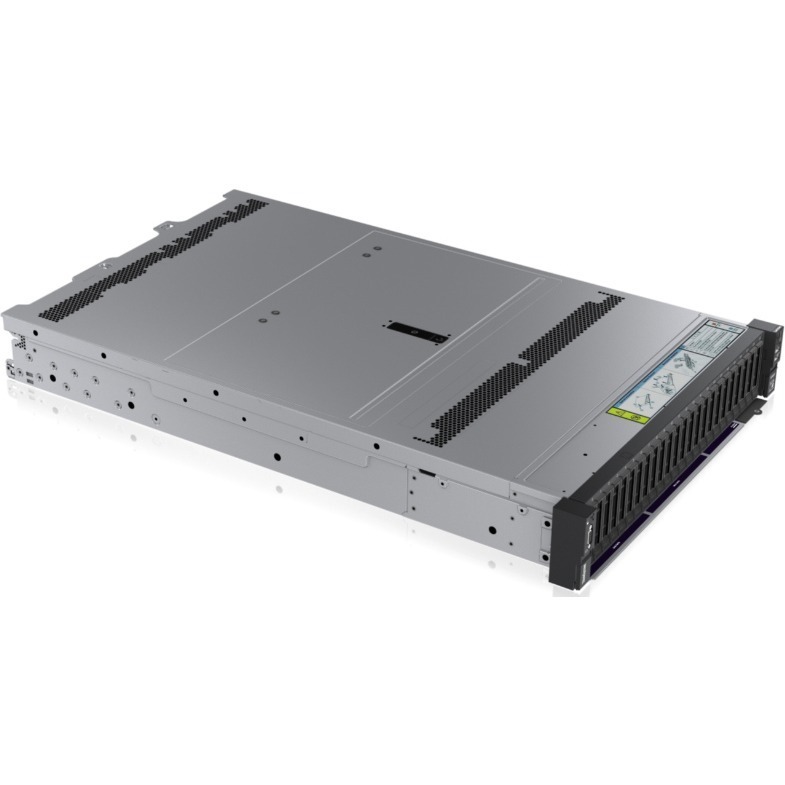

The Lenovo ThinkSystem SR665 7D2V1006NA is a 2-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With 48 cores per processor and support for the new PCIe 4.0 standard for I/O, the 7D2V1006NA offers the ultimate in two-socket server performance in a 2U form factor.
General Information | |
Manufacturer | Lenovo Group Limited |
Manufacturer Part Number | 7D2V1006NA |
Manufacturer Website Address | http://www.lenovo.com/us/en/ |
Brand Name | Lenovo |
Product Line | ThinkSystem |
Product Series | SR665 |
Product Model | 7D2V1006NA |
Product Name | ThinkSystem SR665 7D2V1006NA Server |
Product Type | Server |
Processor | |
Number of Processors Supported | 2 |
Number of Processors Installed | 1 |
Processor Type | EPYC |
Processor Generation | 3rd Gen |
Processor Model | 7643 |
Processor Core | Octatetraconta-core (48 Core) |
Processor Speed | 2.30 GHz |
Cache | 256 MB |
Chipset | |
Chipset Manufacturer | AMD |
Memory | |
Standard Memory | 32 GB |
Maximum Memory Supported | 8 TB |
Memory Technology | TruDDR4 |
Memory Clock Speed | 3.20 GHz |
Error Checking | ECC |
Total Number of Memory Slots | 32.0 |
Number of Occupied Memory Slots | 1 |
Signal Processing | Registered (Buffered) |
Storage | |
Number of Solid State Drives | 1 |
Total Solid State Drive Capacity | 1.92 TB |
Solid State Drive Interface | Serial ATA/600 |
Solid State Drive Configuration | 1 x 1.92TB |
Controllers | |
Controller Type | 12Gb/s SAS |
Controller Type | Serial ATA |
Controller Model | 930-16i |
RAID Supported | Yes |
I/O Expansions | |
Number of Total Expansion Bays | 16 |
Number of Internal 2.5" Bays | 16 |
Number of SFF Bays | 16 |
Hot Swappable Bays | Yes |
Total Number of Expansion Slots | 3.0 |
PCI Express Details | 3 (x16, x8, x8) Gen4 |
Display & Graphics | |
Graphics Controller Model | G200 |
Graphics Memory Capacity | 16 MB |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports | |
Total Number of USB Ports | 6 |
Number of USB 2.0 Ports | 1 |
Number of USB 3.1 Type-A Ports | 5 |
Network (RJ-45) | Yes |
VGA | Yes |
Number of VGA Ports | 2 |
Remote Management | Yes |
Remote Management Controller | XCC Enterprise |
Operating System | |
Operating System Supported | Red Hat Enterprise Linux 8.5 |
Operating System Supported | Red Hat Enterprise Linux 7.6 |
Operating System Supported | Red Hat Enterprise Linux 8.4 |
Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
Operating System Supported | Red Hat Enterprise Linux 9.1 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP4 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
Operating System Supported | Red Hat Enterprise Linux 9.2 |
Operating System Supported | Red Hat Enterprise Linux 8.8 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
Operating System Supported | Red Hat Enterprise Linux 8.2 |
Operating System Supported | Red Hat Enterprise Linux 8.1 |
Operating System Supported | Windows Server 2022 |
Operating System Supported | Red Hat Enterprise Linux 7.9 |
Operating System Supported | Windows Server 2019 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP5 |
Operating System Supported | Ubuntu 22.04 LTS x64 |
Operating System Supported | Red Hat Enterprise Linux 7.7 |
Operating System Supported | Red Hat Enterprise Linux 8.6 |
Operating System Supported | Red Hat Enterprise Linux 9.0 |
Operating System Supported | Red Hat Enterprise Linux 8.7 |
Operating System Supported | Red Hat Enterprise Linux 8.3 |
Operating System Supported | Red Hat Enterprise Linux 7.8 |
Operating System Supported | Windows Server 2016 |
Power Description | |
Input Voltage | 120 V AC |
Input Voltage | 230 V AC |
Number of Power Supplies Supported | 2 |
Number of Power Supplies Installed | 2 |
Plug/Connector Type | C13 |
Maximum Power Supply Wattage | 1100 W |
Redundant Power Supply | Yes |
Hot Swappable Power Supply | Yes |
Power Source | Power Supply |
Physical Characteristics | |
Form Factor | Rack |
Rack Height | 2U |
Height | 3.4" |
Width | 17.5" |
Depth | 30.1" |
Weight (Approximate) | 85.54 lb |
Miscellaneous | |
Package Contents |
|
Security Features |
|
Energy Star | Yes |
Environmentally Friendly | Yes |
Energy Efficiency Certification | ENERGY STAR 3.0 |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
