LENOVO Mfg Mini-Store
LENOVO 4Y37A09735 8GB RAID 940-16I FL INT
Mfg Part Number: 4Y37A09735 , Item #: 3843982
Image may not reflect the actual item.
Price: $3,511.63
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 25, 2025
No Sales Tax except these states
, PO and Wire.

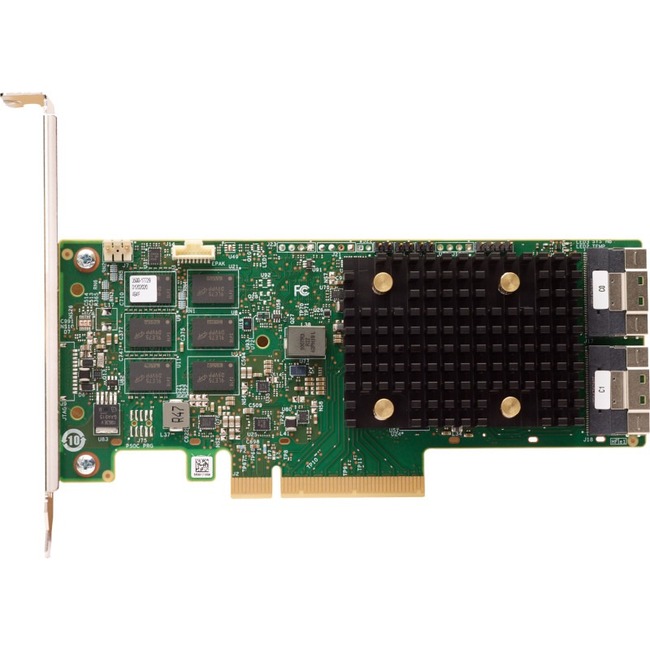

The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
Main Specification
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A09735 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Series | 940 |
| Product Model | 940-16i |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 50 |
| RAID Levels | 5 |
| RAID Levels | JBOD |
| RAID Levels | 10 |
| RAID Levels | 6 |
| RAID Levels | 60 |
| RAID Levels | 0 |
| Data Backup Type | Flash Backed Cache |
| Device Supported | Server |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported | Ubuntu 20.04 LTS |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Ubuntu 18.04 LTS |
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Operating System Supported | Red Hat Enterprise Linux 8.1 |
| Memory | |
| Cache Memory | 8 GB |
| Interfaces/Ports | |
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Four x8 SFF-8654 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades. |
