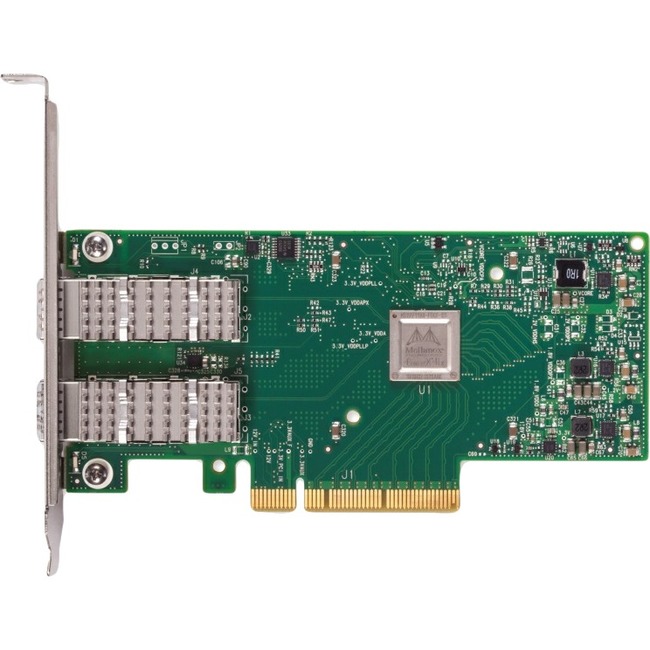

LENOVO 4XC7A08249 THINKSYSTEM MELLANOX CONNECTX4 LX 10/25GBE SFP28 2PORT PCIE ENET

ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapters support either InfiniBand or Ethernet. These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

Did you know?

Virtual Protocol Interconnect (VPI) enables standard networking, clustering, storage, and management protocols to seamlessly operate over any converged network by leveraging a consolidated software stack. Each port can operate on InfiniBand, Ethernet, or Data Center Bridging (DCB) fabrics, and supports Ethernet over InfiniBand (EoIB) as well as RDMA over Converged Ethernet (RoCE). VPI simplifies I/O system design and makes it easier for IT managers to deploy infrastructure that meets the challenges of a dynamic data center.

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	4XC7A08249
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ConnectX-4 Lx
Product Name	ThinkSystem Mellanox ConnectX-4 Lx 10/25GbE SFP28 2-port PCIe Ethernet Adapter
Packaged Quantity	1
Product Type	25Gigabit Ethernet Card
Interfaces/Ports
Host Interface	PCI Express 3.0 x8
Total Number of Ports	2
I/O Expansions
Expansion Slot Type	SFP28
Media & Performance
Media Type Supported	Optical Fiber
Network & Communication
Network Technology	25GBase-X
Network Technology	10GBase-X
Physical Characteristics
Form Factor	Plug-in Card
Miscellaneous
Device Supported	Server
