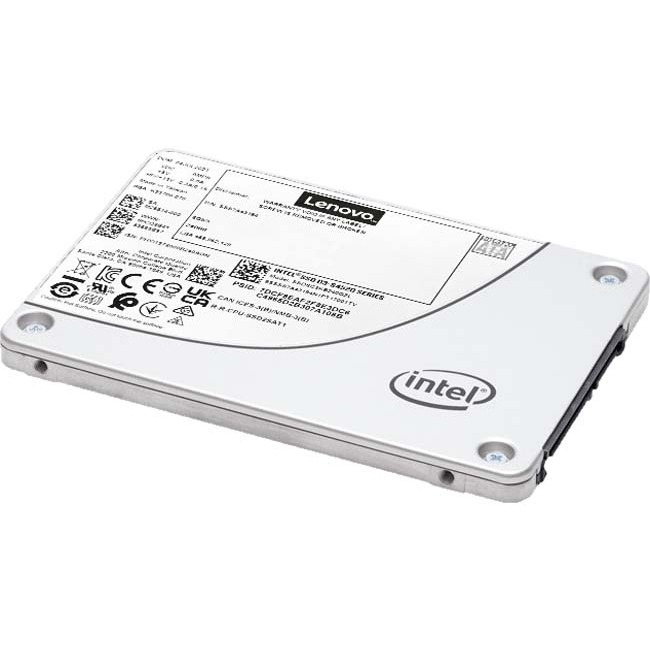

LENOVO 4XB7A17120 3.5 S4520 960GB RI SATA HS
Mfg Part Number: 4XB7A17120 , Item #: 4487484
, PO and Wire.
The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
Compared with the S4510 series, these new Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A17120 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Name | ThinkSystem 3.5" S4520 960GB Read Intensive SATA 6Gb HS SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 960 GB |
| Encryption Standard | 256-bit AES |
| Drive Performance | |
| Maximum Read Transfer Rate | 563200 MB/s |
| Maximum Write Transfer Rate | 522240 MB/s |
| Random 4KB Read | 90000IOPS |
| Random 4KB Write | 43000IOPS |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 5427.20 TB |
| Endurance Type | Read Intensive |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Hot Swappable | Yes |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Weight (Approximate) | 2.47 oz |
| Miscellaneous | |
| Compatibility | ThinkSystem Servers: ST250 V2 (7D8G / 7D8F) SR250 V2 (7D7R / 7D7Q) ST650 V2 (7Z75 / 7Z74) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) ST250 (7Y45 / 7Y46) SR250 (7Y52 / 7Y51) ST550 (7X09 / 7X10) SR530 (7X07 / 7X08) SR550 (7X03 / 7X04) SR570 (7Y02 / 7Y03) SR590 (7X98 / 7X99) SR630 (7X01 / 7X02) SR650 (7X05 / 7X06) |
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
