LENOVO Mfg Mini-Store
LENOVO 4Y37A78601 440-8I SAS SATA HBA
Mfg Part Number: 4Y37A78601 , Item #: 4535944
Image may not reflect the actual item.
Price: $757.59
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 07, 2025
No Sales Tax except these states
, PO and Wire.

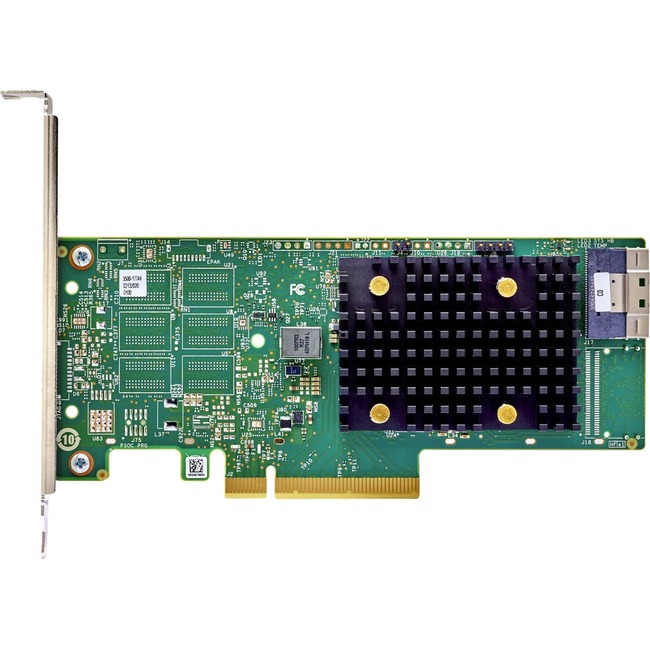

The ThinkSystem 440-8i and 440-16i SAS/SATA PCIe Gen4 12Gb HBAs are high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. The adapters integrate the latest enhancements SAS technology and offer 8 or 16 lanes of 12 Gbps SAS. The adapters are available in two form factors, low-profile PCIe and a custom form-factor design. The custom design adapter is cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.
Main Specification
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A78601 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Model | 440-8i |
| Product Name | ThinkSystem 440-8i SAS/SATA PCIe Gen4 12Gb HBA |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 4.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| RAID Levels | JBOD |
| Device Supported | Server |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Operating System Supported | SuSE Linux Enterprise Server 15 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP4 |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Operating System Supported | Red Hat Enterprise Linux 8.2 |
| Operating System Supported | VMware ESXi 6.7 |
| Operating System Supported | VMware ESXi 6.7 U1 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
| Operating System Supported | Red Hat Enterprise Linux 9.0 |
| Operating System Supported | Red Hat Enterprise Linux 8.3 |
| Operating System Supported | Red Hat Enterprise Linux 8.1 |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | VMware ESXi 7.0 U3 |
| Operating System Supported | VMware ESXi 6.7 U3 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP3 |
| Operating System Supported | Red Hat Enterprise Linux 8.6 |
| Operating System Supported | VMware ESXi 7.0 U1 |
| Operating System Supported | VMware ESXi 7.0 U2 |
| Operating System Supported | Ubuntu 18.04.5 LTS |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Operating System Supported | Windows 10 |
| Operating System Supported | Red Hat Enterprise Linux 7.7 |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| Operating System Supported | VMware ESXi 6.7 U2 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
| Operating System Supported | Ubuntu 20.04 LTS |
| Operating System Supported | Ubuntu 22.04 LTS |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 2 x4 SFF-8654 |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Miscellaneous | |
| Platform Supported | PC |
| Platform Supported | Linux |
