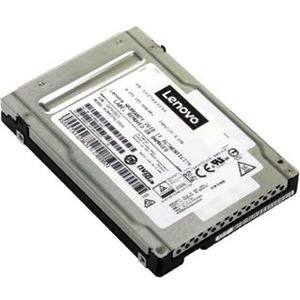

LENOVO 4XB7A38269 U.3 CM6-R 3.84TB EN NVME SSD SED
Mfg Part Number: 4XB7A38269 , Item #: 4218517
, PO and Wire.
The ThinkSystem Kioxia CM6-R Entry NVMe PCIe 4.0 x4 solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that adhere to the Trusted Computing Group Opal/Ruby Security Subsystem Class cryptographic standards (TCG Opal/Ruby SSC). They use Kioxia NAND flash memory technology with a PCIe 4.0 x4 NVMe interface to provide an high-performance solution for secure read-intensive workloads.
This product guide provides essential presales information to understand the CM6-R NVMe SED offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A38269 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Series | CM6-R |
| Product Name | ThinkSystem U.3 Kioxia CM6-R 3.84TB Entry NVMe PCIe 4.0 x4 Hot Swap SSD SED |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.84 TB |
| Drive Performance | |
| Maximum Read Transfer Rate | 6900 MB/s |
| Maximum Write Transfer Rate | 4200 MB/s |
| Random 4KB Read | 1400000IOPS |
| Random 4KB Write | 170000IOPS |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 7008 TB |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | U.3 |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Hot Swappable | Yes |
| Height | 0.6" |
| Width | 2.8" |
| Depth | 3.9" |
| Weight (Approximate) | 4.59 oz |
| Miscellaneous | |
| Compatibility | Lenovo ThinkSystem Servers:
|
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | The Kioxia CM6-R Entry NVMe SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
