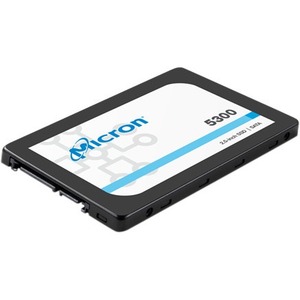

The ThinkSystem 5300 Entry SATA 6Gb solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that adhere to the Trusted Computing Group Enterprise Security Subsystem Class cryptographic standard (TCG Enterprise SSC or eSSC). They use Micron NAND flash memory technology with a SATA 6Gbps interface to provide an affordable solution for secure read-intensive workloads.
General Information | |
Manufacturer | Lenovo Group Limited |
Manufacturer Part Number | 4XB7A38141 |
Manufacturer Website Address | http://www.lenovo.com/us/en/ |
Brand Name | Lenovo |
Product Series | 5300 |
Product Name | ThinkSystem 2.5" 5300 960GB Entry SATA 6Gb Hot Swap SSD SED |
Product Type | Solid State Drive |
Technical Information | |
Storage Capacity | 960 GB |
Encryption Standard | 256-bit |
Drive Performance | |
Maximum Read Transfer Rate | 540 MB/s |
Maximum Write Transfer Rate | 520 MB/s |
Random 4KB Read | 95000IOPS |
Random 4KB Write | 35000IOPS |
Endurance (DWPD) | 1.5 |
Endurance (TBW) | 2628 TB |
Endurance Type | Read Intensive |
Network & Communication | |
Wireless LAN | No |
Interfaces/Ports | |
Drive Interface | SATA |
Drive Interface Standard | SATA/600 |
Physical Characteristics | |
Drive Type | Internal |
Form Factor | 2.5" |
Hot Swappable | Yes |
Height | 0.3" |
Width | 2.8" |
Depth | 3.9" |
Weight (Approximate) | 2.47 oz |
Miscellaneous | |
Compatibility | Lenovo ThinKSystem Servers:
|
Device Supported | Server |
