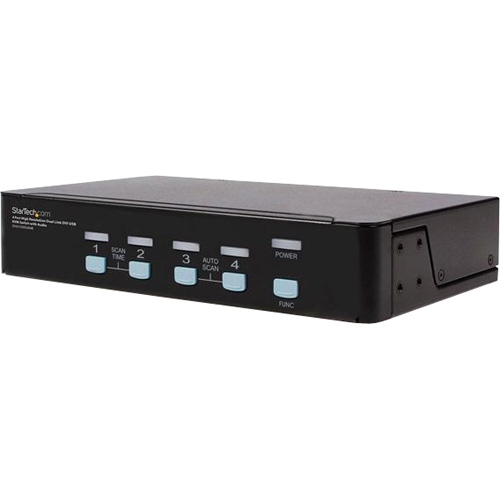

SV431DVIUAHR StarTech.com 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio

The SV431DVIUAHR 4 Port High Resolution USB DVI Dual Link KVM Switch with Audio provides simple, yet comprehensive KVM control of up to 4 directly connected computers with dual link DVI output and USB keyboard and mouse connections.

Audio switching capability and support for high resolution dual link DVI applications up to 2560x1600 @ 60Hz (up to 3840x2400 at lower refresh rates), make this KVM a superior switching solution that integrates perfectly into multimedia environments.

The DVI USB KVM Switch is compatible with all USB supported operating systems with no software or drivers to install, and features a built-in USB 2.0 hub that allows you to share up to 3 high speed USB devices between computers.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.

More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	SV431DVIUAHR
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	4 Port USB DVI Dual Link KVM Switch with Audio
Packaged Quantity	1
Product Type	KVM Switchbox
Technical Information
Number of Computers Supported	4
Number of Local Users Supported	1
Daisy Chain Supported	Yes
Video
Graphic Mode	WQXGA
Maximum Video Resolution	2560 x 1600
Interfaces/Ports
USB	Yes
DVI	Yes
Number of USB Ports	8
Number of DVI Ports	5
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Input Voltage Range	100V AC to 240V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Desktop
Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	8.7"
Depth	5.1"
Weight (Approximate)	3.86 lb
Miscellaneous
Package Contents	4 Port USB DVI Dual Link KVM Switch with Audio 1 x Rubber Foot Pad 1 x Power Adapter 1 x User Manual
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	3 Year

Supporting 1080p and Apple Cinema quality resolutions this 4 Port Dual Link DVI USB KVM Switch with Audio offers a superior switching solution for multimedia applications. Providing simple, yet comprehensive control of up to four directly connected computers, the SV431DVIUAHR KVM Switch offers DVI Dual Link connectivity with support for resolutions of up to 2560x1600, as well as audio switching and the convenience of a built-on USB hub.

Features

• All metal chassis for long-term durability
• Compatible with all USB supported Operating Systems
• Designed for high-resolution applications: 2560x1600 @ 60Hz: Higher resolutions (3840 x 2400) are supported at lower refresh rates.
• Front panel push button computer selection
• Integrated USB 2.0 hub allows you to share up to three high-speed USB devices between computers


Specifications

Warranty	3 Year warranty
Color	Black
Enclosure Type	Steel
KVM Audio	Yes
KVM Cascadable	Yes
KVM DVI	Yes
Supported Platforms	USB
KVM Rackmount	Yes
Maximum Cascaded Computers	16
Maximum Video Resolutions	2560x1600 @ 60Hz
Number of KVM Ports	4
Console Connectors	1 x DVI female
	1 x USB 2.0 hub Type A
	1 x 3.5mm Microphone
	1 x 3.5mm Speaker
Host Connectors	4 x DVI female
	4 x USB Type B female
	4 x 3.5mm Microphone
	4 x 3.5mm Speaker
Power Adapter Included	Yes
Power Adapter - DC Voltage	5
Power Adapter - Amperage	2.0
Operating Temperature	0 ~ 40
Center Tip Polarity	Positive
Product Height	1.73 in [4.4 cm]
Product Length	8.66 in [22 cm]
Product Width	5.12 in [13 cm]
Note:	Resolutions exceeding 2560x1600 can be obtained by using a lower refresh rate. Example 3840x2400 @30Hz
