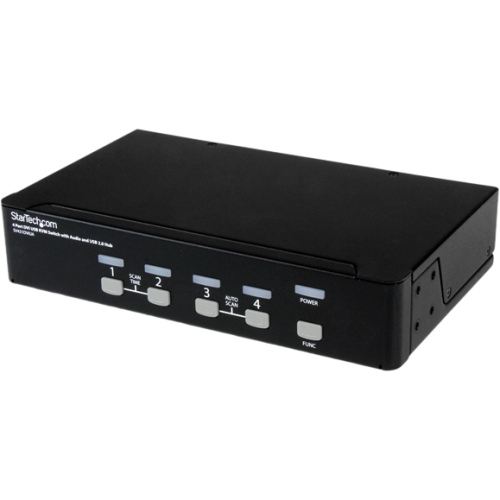

SV431DVIUA StarTech.com 4 Port DVI USB KVM Switch with Audio and USB 2.0 Hub

This 4 port DVI USB KVM Switch lets you control four USB enabled, DVI capable computers from a single USB keyboard and mouse peripheral set. Ideal for multimedia applications, the switch supports audio and microphone switching, allowing you to switch between audio/mic channels either independently or simultaneously when switching between computers for KVM control. The DVI USB KVM switch features an integrated USB 2.0 hub which allows you to use shared USB peripherals from the control point as if the devices were connected directly to the slave computers - an economical solution that lets you use USB peripherals between computers (when selected) without the expense of buying individual peripherals for each slave computer. Rackmount your KVM switch If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM. This product is TAA compliant and is backed by a Startech.com 3 year warranty with lifetine technical support. More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	SV431DVIUA
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	4 Port DVI USB KVM Switch with Audio
Packaged Quantity	1 Each
Product Type	KVM Switchbox
Technical Information
Number of Computers Supported	4
Number of Local Users Supported	1
Video
Graphic Mode	WUXGA
Maximum Video Resolution	2560 x 1600
Interfaces/Ports
USB	Yes
DVI	Yes
Number of USB Ports	8
Number of DVI Ports	5
Power Description
Input Voltage	5 V DC
Input Voltage Range	110V AC to 240V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Desktop
Form Factor	Rack-mountable
Height	4.5"
Width	1.8"
Depth	10"
Weight (Approximate)	2.20 lb
Miscellaneous
Package Contents	4 Port DVI USB KVM Switch with Audio 1 x Rubber Foot Pad 1 x Power Adapter 1 x User Manual
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
REACH Declaration URL	https://media.startech.com/cms/pdfs/sv431dviua_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/sv431dviua_rohs.pdf
End of Life Manual Availability	Yes
REACH free of SVHC	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/sv431dviua_weee.pdf
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	3 Year

The StarTech.com SV431DVIUA is a 4-port DVI USB KVM Switch with Audio and Microphone switching functions. It allows you to control 4 USB-enabled multimedia computers with DVI (Digital Video Interfaces), using only one USB keyboard, mouse, monitor and a set of speakers and microphone. You can select the computers, USB device hub ports and audio/mic channels either simultaneously or independently, using front-panel buttons. This DVI USB KVM Switch adopts the DVI interface technology that implements genuinely digital signal transmission over the cable to reduce undesired distortion from conventional analog/digital conversion.

Device Type	KVM / audio / USB switch
Enclosure Type	External
Built-in Devices	USB hub
Width	10 in
Depth	4.5 in
Height	1.8 in
Enclosure Color	Black
Networking
Ports Qty	4
Connectivity Technology	Wired
Status Indicators	Port status
KVM
KVM Local Users Qty	1 local user
Max Resolution	1920 x 1440 @ 70 Hz
Expansion / Connectivity
Interfaces	4 x Hi-Speed USB - 4 pin USB Type B Ý 4 x display / video - DVI-Digital - 23 pin combined DVI (Single-Link) Ý 4 x audio - line-out - mini-phone stereo 3.5 mm Ý 4 x microphone - input - mini-phone 3.5 mm
Connections	1 x keyboard - 4 pin USB Type A Ý 1 x mouse - 4 pin USB Type A Ý 1 x display / video - DVI-Digital - 23 pin combined DVI (Single-Link) Ý 2 x Hi-Speed USB - 4 pin USB Type A Ý 1 x audio - line-out - mini-phone stereo 3.5 mm Ý 1 x microphone - input - mini-phone 3.5 mm
Power
Power Device	Power adapter - external
Manufacturer Warranty
Service & Support	3 years warranty

Download DataSheet
