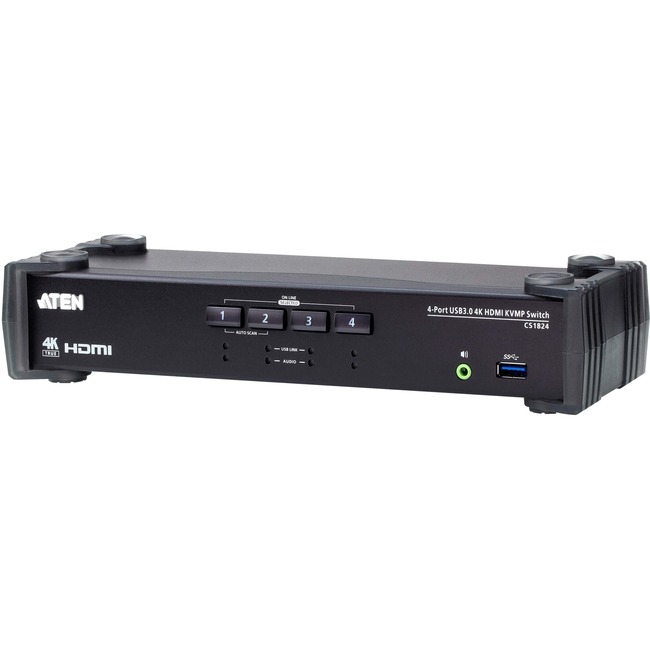

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology - Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What's more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.
| General Information | |
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1824 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | CS1824 |
| Product Name | 4-Port USB 3.0 4K HDMI KVMP Switch |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |

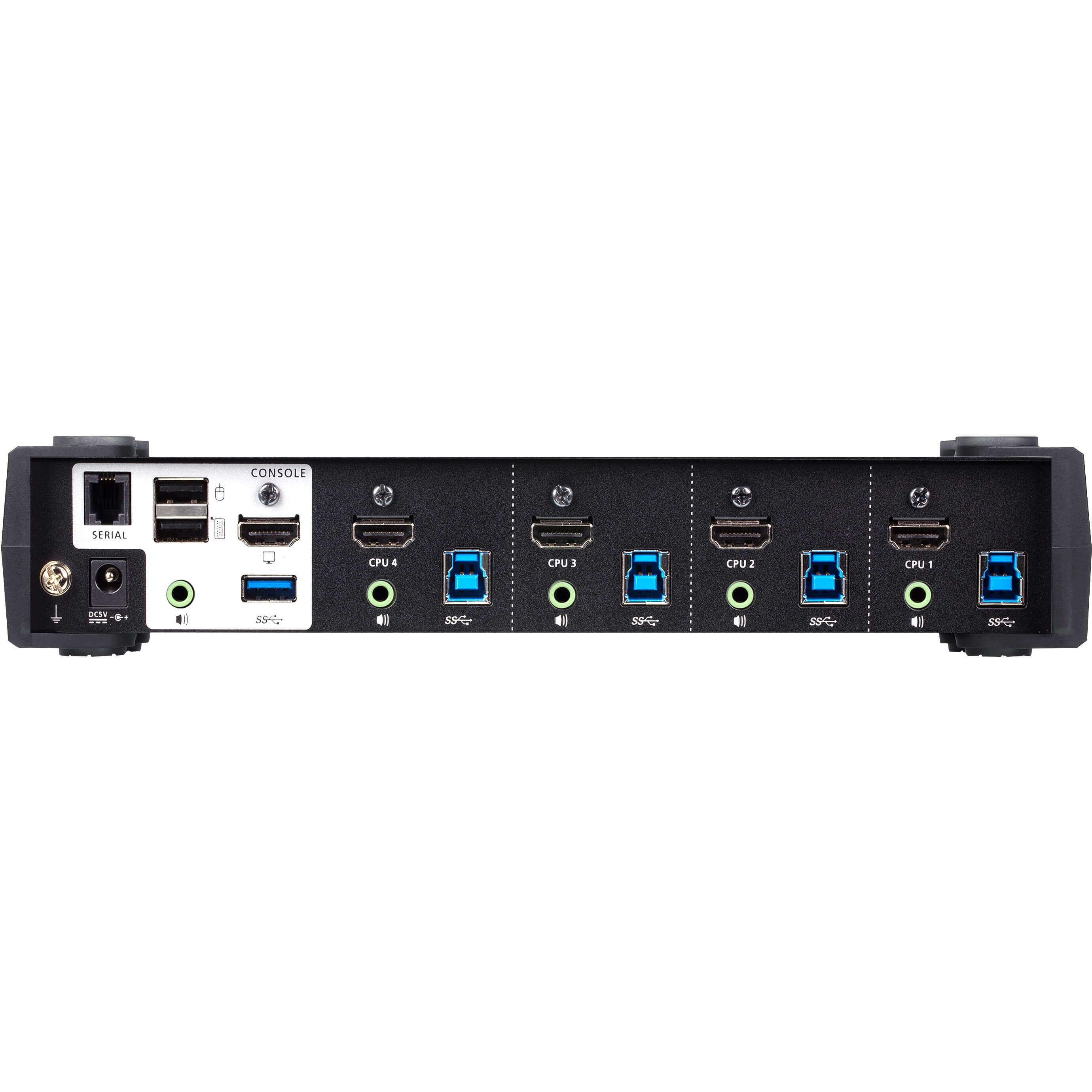

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 7 |
| Number of HDMI Ports | 5 |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Rack-mountable |
| Height | 2.2" |
| Width | 10.6" |
| Depth | 3.5" |
| Weight (Approximate) | 2.07 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
