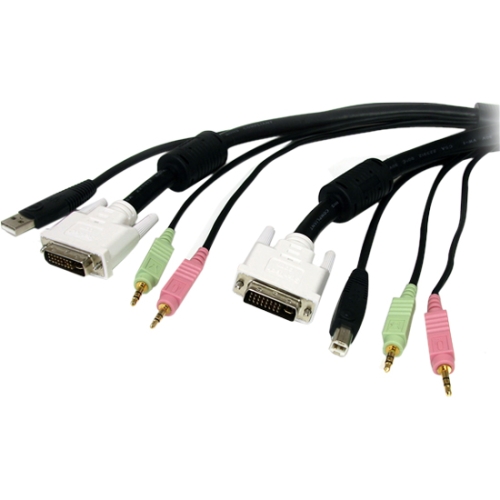

USBDVI4N1A6 StarTech.com 6 ft 4-in-1 USB DVI KVM Cable with Audio and Microphone

The USBDVI4N1A6 6 ft 4-in-1 USB DVI KVM Cable with Audio and Microphone integrates DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with:

Compatible StarTech.com KVMs can be found under the Accessories section.

Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	USBDVI4N1A6
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	USBDVI4N1A6
Product Name	6 ft 4-in-1 USB DVI KVM Cable with Audio and Microphone
Packaged Quantity	1 Each
Product Type	KVM Cable
Technical Information
Cable Type	USB
Cable Length	6 ft
Connector Type on First End	Mini-phone Audio - Male
Connector Type on First End	USB Type A - Female
Connector Type on First End	DVI-I Digital Video - Male
Connector on First End Details	1 x 3-pin USB Type A - Female
Connector on First End Details	1 x 29-pin DVI-I Digital Video - Male
Connector on First End Details	2 x 4-pin Mini-phone Audio - Male
Connector Type on Second End	DVI-I Digital Video - Male
Connector Type on Second End	USB Type B - Female
Connector Type on Second End	Mini-phone Audio - Male
Connector on Second End Details	2 x 4-pin Mini-phone Audio - Male
Connector on Second End Details	1 x 29-pin DVI-I Digital Video - Male
Connector on Second End Details	1 x 3-pin USB Type B - Female
Device Supported	KVM Switch
Device Supported	Keyboard/Mouse
Supported Resolution	1920 x 1200
Physical Characteristics
Color Family	Black
Product Color	Black
Weight (Approximate)	1.12 lb
Miscellaneous
Environmentally Friendly	Yes
Country of Origin	China
Warranty
Limited Warranty	Lifetime

This cable provides KVM connections to DVI and USB KVM switches in a single, compact cable. Connections provided are DVI video, USB mouse and keyboard, 3.5mm audio, and 3.5mm microphone connections. Like all StarTech.com cables, this cable features high-quality construction backed by a lifetime warranty.

• Backed by StarTech.com's lifetime cable warranty
  Compact 4-in-1 construction for reliable connections


Applications

• Connects a computer to a DVI + USB KVM switch with audio and mic support

Specifications

Warranty	Lifetime
Connector A	1 - DVI-I Dual Link Male
Connector A	2 - Phono 3.5 mm Male
Connector A	1 - USB A Female
Connector B	1 - DVI-I Dual Link Male
Connector B	2 - Phono 3.5 mm Male
Connector B	1 - USB B Female
Color	Black
Connector Types	1 - USB B Female
Connector Types	1 - USB A Female
Connector Types	2 - DVI-I Dual Link Male
Connector Types	2 - Phono 3.5 mm Male
Product Length	6 ft [1.83 m]
Carton Quantity	50

Download DataSheet
