STARTECH
STARTECH SV431DPDDUA2 4PORT KVM SWITCH 4K60 KVM SWITCH 4K60 4PORT
Mfg Part Number: SV431DPDDUA2 , Item #: 3021109
, PO and Wire.

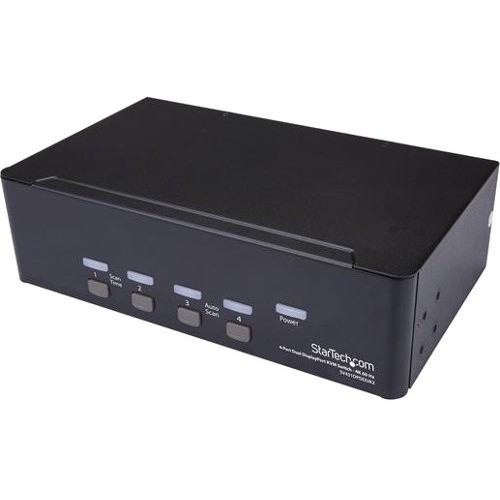

This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DPsystems.
Maximize productivity with dual video
With two DPvideo inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DPports supports resolutions up to 4K 60Hz, formaximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speakerports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV431DPDDUA2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 4-Port Dual DisplayPort KVM Switch - 4K 60Hz |
| Packaged Quantity | 1 Each |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 8 |
| Number of DisplayPorts | 10 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Rack Height | 2U |
| Height | 2.5" |
| Width | 8.5" |
| Depth | 5" |
| Weight (Approximate) | 2.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
Connector Cables
StarTech.com 10 ft Certified DisplayPort 1.2 Cable with Latches M/M ? DisplayPort 4k
StarTech.com 1 ft Short DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k
StarTech.com 6 ft Certified DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k
StarTech.com 10 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k
StarTech.com 3 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k
StarTech.com 6 ft Mini DisplayPort to DisplayPort 1.2 Adapter Cable M/M - DisplayPort 4k
StarTech.com High Speed Certified USB 2.0 - USB cable - 4 pin USB Type A (M) - 4 pin USB Type B (M) - 1.8 m ( USB / Hi-Speed USB )
