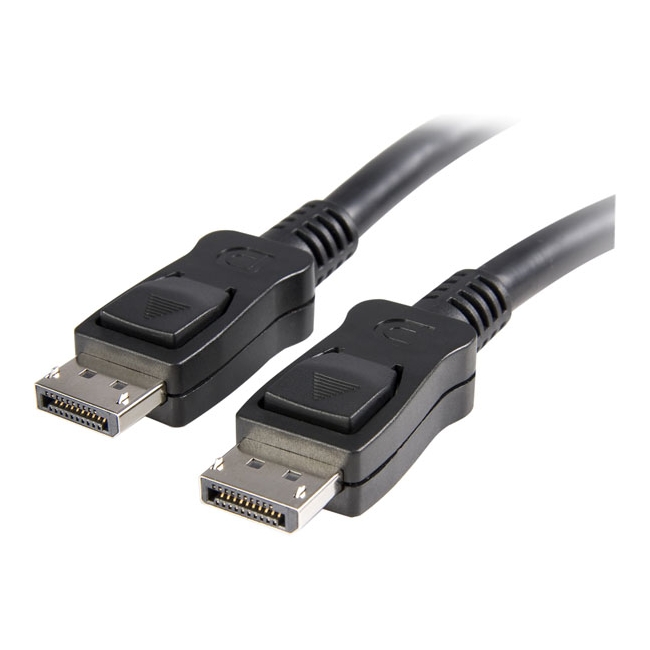

DISPLPORT6L StarTech.com 6 ft Certified DisplayPort 1.2 Cable with Latches M/M - DisplayPort 4k

This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI. The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors. The 6-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices. The DISPLPORT6L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability. More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	DISPLPORT6L
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	DisplayPort Cable - 6 ft / 2m - 4K DisplayPort 1.2 Cable - DP to DP Cable
Packaged Quantity	1 Each
Product Type	Video Cable
Technical Information
Cable Type	DisplayPort
Cable Length	6 ft
Connector Type on First End	DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on First End	Male
Connector on First End Details	1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End	DisplayPort 1.2 Digital Audio/Video - Male
Connector Gender on Second End	Male
Connector on Second End Details	1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Plating	Gold
Conductor	Copper
Shielding	Yes
Jacket Type	CMG
Device Supported	Notebook
Device Supported	Monitor
Device Supported	Graphics Card
Device Supported	Audio/Video Device
Device Supported	Projector
Device Supported	Workstation
American Wire Gauge	28 AWG
Data Transfer Rate	21.6 Gbit/s
Supported Resolution	4096 x 2160
Features	Molded
Features	HDCP
Features	Strain Relief
Features	Latching Connector
Features	EMI Protection
Features	DPCP
Features	Damage Resistant
Features	Multi-Stream Transport (MST) Support
Features	Fray Resistant
Physical Characteristics
Color Family	Black
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Miscellaneous
Additional Information	DisplayPort offers full digital audio support (up to eight channels) in the same cable as video
Compatibility	AMD Graphic Cards FirePro S9000 7000 W8100 7100 5100 R5000
Certifications & Standards	HDCP DPCP (DisplayPort Content Protection)
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
REACH free of SVHC	Yes
REACH Declaration URL	https://media.startech.com/cms/pdfs/displport6l_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/displport6l_rohs.pdf
End of Life Manual Availability	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/displport6l_weee.pdf
Country of Origin	China
Warranty
Limited Warranty	Lifetime

StarTech.com's DisplayPort cables feature a small USB-sized latching connector, two-way display connectivity, optional audio support, higher performance than dual link DVI at 10.8 Gigabits per second, and a unique micro-packet architecture that enables new display features. DisplayPort supports a maximum of 10.8 Gbit/s data rate and WQXGA (2560×1600) resolution over a 15 meter cable

Warranty	Lifetime warranty
Color	Black
Carton Quantity	50
Cable Length	6 ft [1.83 m]
Connector A	1 - 20 pin DisplayPort Male
Connector B	1 - 20 pin DisplayPort Male

Download DataSheet
