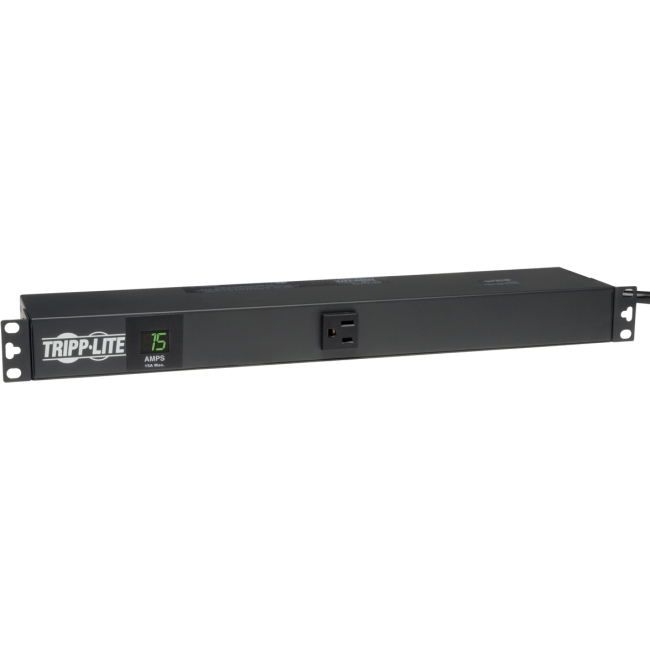

Tripp Lite PDUMH15 PDU Metered 120V 15A 13 Outlet

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.

More from the Manufacturer

MODEL- PDUMH15            VENDOR- TRIPPLITE

FEATURES- Metered PDU/Power Distribution Unit
       Safe, reliable power distribution with digital current meter.
       1U rackmount PDU; Digital current monitoring display; 12 rear facing
        outlets, 1 front facing outlet; 15-ft cord; 15-amp breaker;
        Switchless design.
       Tripp Lite's PDUMH15 AC power distribution unit offers a digital
        current monitor and provides 15 amps of 120 volt capacity in a
        versatile multi-mount cabinet. Detachable mounting flanges are
        configurable for wallmount, under-counter, or 1U/0U rackmount
        installation. Uses only 1U of rack space when installed in any
        19-inch rack, with the potentional for zero U mounting in the cable
        management area of most rack enclosures.
       Built-in digital ammeter display offers continuous visual power
        consumption data for the entire PDU. Attractive rackmount housing
        with 1 front and 12 rear facing outlets measures only 4.5 inches in
        depth. Unfiltered electrical pass-through without a power switch
        makes the PDUMH15 ideal for distributing alternate waveform UPS or
        generator power in rack enclosures, network closets, and more.
       Includes 12 rear facing NEMA 5-15R and one front facing outlet,
        15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged
        all metal rackmount case design.
* 120V 15A Metered rackmount AC power distribution unit with 15 amp
  capacity and 13 AC receptacles.
* Front panel digital current montoring display shows power consumption of
  connected equipment.
* Versital all-metal rackmount cabinet with detachable mounting flanges
  allows wall-mount, under-counter, and 19-inch rackmount mounting in both
  1U and zero U formats.
* Unfiltered electrical pass-through reliably distributes alternate
  waveform AC power from UPS or generator to supported equipment.
* 13 NEMA 5-15R output receptacles accept common NEMA5-15P equipment plugs
* 15 foot AC power cord with NEMA5-15P plug connection
* Switch-free design prevents the potential for accidental shutoff of
  connected loads.
* 15 amp electrical capacity with circuit breaker
* 120 VAC, 50/60 Hz electrical compatibility

  -- SPECIFICATIONs -----------------------------------
OUTPUT       - Nominal voltage    : 120V
               Outlets            : (13) NEMA 5-15R
               Overload protection: 15A
INPUT        - Input amps         : 15A
               Connection type    : NEMA 5-15P
               Cord length        : 15 ft.
LEDs, ALARMS & SWITCHES-
               Front panel LEDs   : Digital LED current monitor display
MATERIAL     - Sheet metal
FORM FACTOR  - 1U rackmount, 0U vertical rackmount, wall-mount, and under-
                 counter installation.
TVSS GROUND  - Rear grounding lug
APPROVALS    - Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03
                  (Canada), RoHS Compliant.
DIMENSIONS   - 17.5"w x 1.75"h x 4.5"d          WT.- 4.5 lbs.
www.tripplite.com
