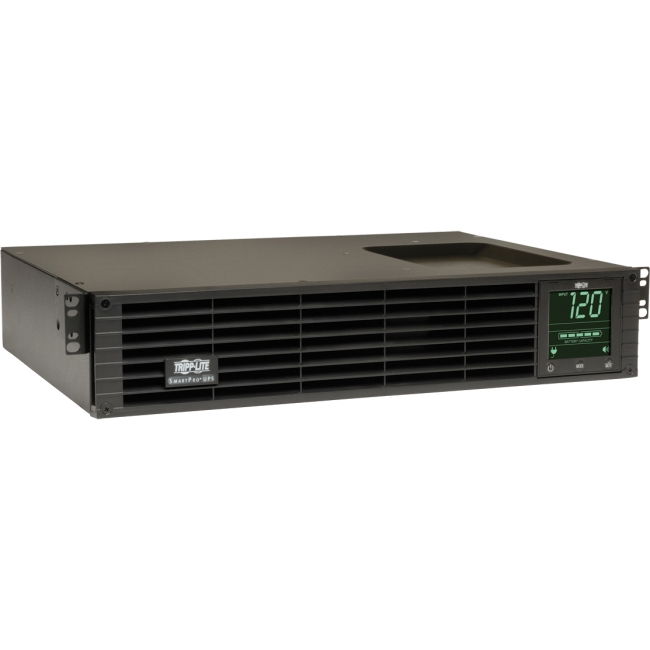

Tripp Lite SmartPro SMART750RMXL2U 750VA Tower/Rack-mountable UPS
Mfg Part Number: SMART750RMXL2U , Item #: 355086
, PO and Wire.
This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART750RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART750RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD monitoring screen features ten selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750RMXL2U |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART750RMXL2U |
| Product Name | SMART750RMXL2U UPS System |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Emergency Power OFF | Yes |
| Transfer Time | 4 ms |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Input Current | 6.80 A |
| Output Voltage | 110 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| USB | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 21 Minute |
| Typical Battery Recharge Time | 4.50 Hour |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 17.4" |
| Depth | 13.2" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Power Rating | - |
| Output Voltage Rating | - |
| Number of Outputs | - |
| Runtime-Full Load | - |
| Runtime-Half Load | - |
| Main Specifications |
| Product Description | Tripp Lite SmartPro 750RMXL2U - UPS - 750 VA - UPS battery |
| Device Type | UPS |
| Form Factor | External 2 U |
| Dimensions (WxDxH) | 17.5 in x 14.3 in x 3.5 in |
| Weight | 35.1 lbs |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ( 60 Hz ) |
| Power Provided | 750 VA |
| Output connector(s) | 6 x power NEMA 5-15 |
| Battery | UPS battery - expandable |
| Run Time (Up To) | 16 min at full load |
| Manufacturer Warranty | 2 years warranty |
| General | |
| Device Type | UPS |
| Form Factor | External |
| Height (Rack Units) | 2 U |
| Width | 17.5 in |
| Depth | 14.3 in |
| Height | 3.5 in |
| Weight | 35.1 lbs |
| Enclosure Color | Black |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 83 - 147 V |
| Frequency Required | 60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Output Voltage | AC 120 V ( 60 Hz ) |
| Output connector(s) | 6 x power NEMA 5-15 |
| Power Provided | 750 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Standard |
| Surge Response Time | 0 ms |
| Circuit Protection | Circuit breaker |
| Battery | |
| Type | UPS battery - expandable |
| Run Time (Up To) | 16 min at full load |
| Recharge Time | 4 hour(s) |
| Expansion / Connectivity | |
| Interfaces | 1 x USB - 4 pin USB Type B 1 x management - RS-232C - 9 pin D-Sub (DB-9) |
| Expansion Slots Total (Free) | 1 ( 1 ) x expansion slot |
| Miscellaneous | |
| Cables Included | 1 x power cable - 10 ft 1 x USB cable 1 x serial cable |
| Rack Mounting Kit | Included |
| Equipment Protection Value | 250000 US Dollars |
| Features | Audible alarm |
| Compliant Standards | FCC Class B certified, cUL, NOM, UL 1778 |
| Software / System Requirements | |
| Software Included | TrippLite PowerAlert |
| Manufacturer Warranty | |
| Service & Support | 2 years warranty |
| Service & Support Details | Limited warranty - 2 years |
