Tripp Lite PDUV15 PDU Basic 120V 15A 14 Outlet
Mfg Part Number: PDUV15 , Item #: 824041
, PO and Wire.

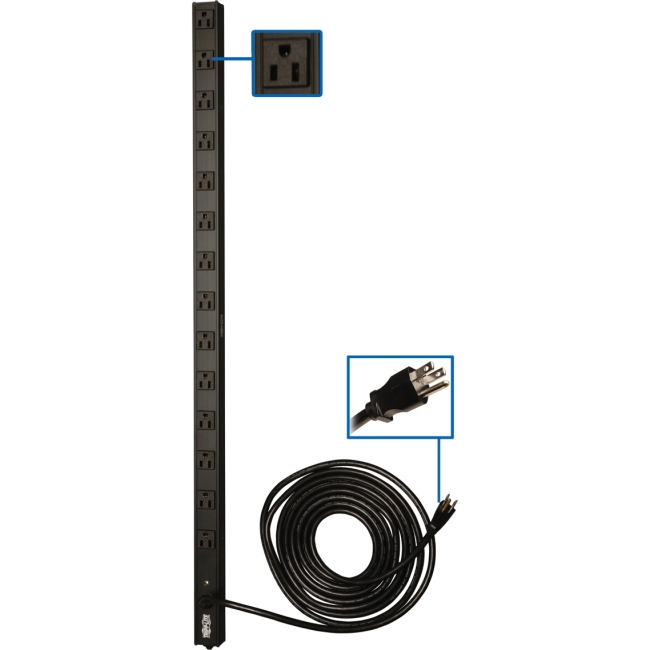

Tripp Lite's PDUV15 Basic Vertical Power Distribution Unit offers 15-amp, 120V multi-outlet AC power distribution in a convenient 36-inch mountable housing. It offers vertical power distribution in rackmount, raceway and workbench applications. Includes 14 NEMA 5-15R output receptacles, 15-ft. AC line cord and lighted power switch with locking transparent cover to prevent accidental shutoff. Sturdy all-metal aluminum housing stands up to demanding network, laboratory or factory environments. Unfiltered electrical pass-through makes the PDUV15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Included 14 NEMA5-15R outlets, 15-ft. AC power cord with 5-15P plug, 15-amp circuit breaker in rugged metal case design with universal and button mounting options. PLUG/OUTLETS - Input: NEMA 5-15P; Output: 14 NEMA 5-15R; ELECTRICAL - 120V AC, 50/60Hz, 15A; FORMAT - 36-inch mountable strip.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUV15 |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PDUV15 |
| Product Name | PDUV15 PDU Basic 120V 15A 14 Outlet |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 14 x NEMA 5-15R |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1800 VA |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Width | 36" |
| Depth | 1.3" |
| Weight (Approximate) | 3.30 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Product | - |
| Number of Outlets | - |
| Surge Energy Rating | - |
| Data Line Protection | - |
| Cord Length | - |
| Mounting Style | - |
| Output Voltage | - |
| Current Rating | - |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Width | 36 in |
| Depth | 1.3 in |
| Height | 1.7 in |
| Power Device | |
| Input Voltage | AC 120 V |
| Frequency Required | 50/60 Hz |
| Input Connector(s) | 1 x power NEMA 5-15 |
| Output Voltage | AC 120 V ( 50/60 Hz ) |
| Output connector(s) | 12 x power NEMA 5-15 |
| Max Electric Current | 15 A |
| Circuit Protection | Circuit breaker |
| Miscellaneous | |
| Cables Included | 1 x power cable - 150 ft |
| Rack Mounting Kit | Included |
| Compliant Standards | UL 60601-1, RoHS, CSA C22.2 No. 60950-1-03 |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 40.2 in |
| Shipping Depth | 2.8 in |
| Shipping Height | 3 in |
