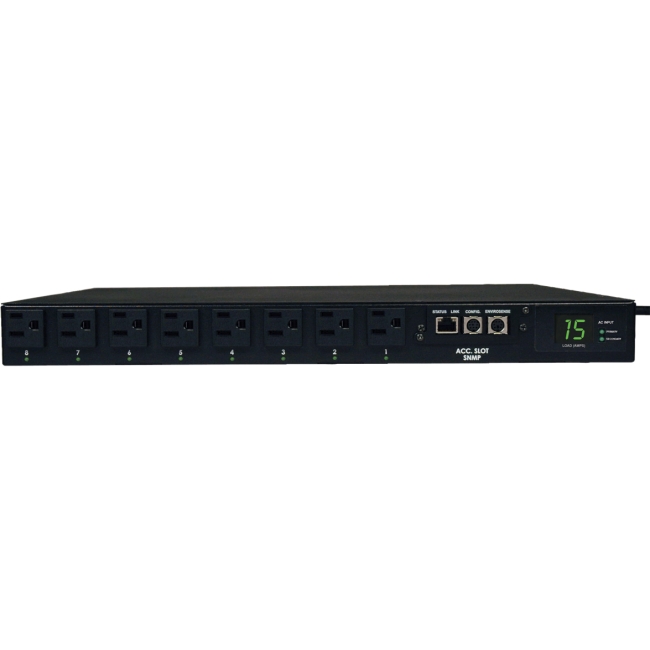

Tripp Lite PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet

Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. The built-in Java-free HTML5-based LX Platform interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP and NTP. Switched PDU features include individually controllable output receptacles. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMH15ATNET
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	PDUMH15ATNET
Product Name	PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet
Product Type	PDU
Technical Information
PDU Type	Switched
Plug/Connector Type	NEMA 5-15P
Plug/Connector Detail	2 x NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (VA)	1800 VA
Management
Management	Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails Sequential outlet power-on prevents inrush-related equipment interaction on startup Programmable or real-time outlet power control via web/network monitoring and control card
Physical Characteristics
Color Family	Black
Product Color	Black
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	1U
Number of Cord/Cable	2
Height	1.8"
Width	1.8"
Depth	14.5"
Weight (Approximate)	11 lb
Miscellaneous
Package Contents	PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet PDU with attached 5-15P input power cord Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input User manuals with warranty information
Certifications & Standards	60950 Class A RoHS compliant
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

General Information
Product	-
Number of Outlets	8
Surge Energy Rating	-
Data Line Protection	-
Cord Length	-
Mounting Style	-
Output Voltage	-
Current Rating	-

Tripp Lite Metered PDUMH15ATNET 15A PDU system with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned on at 250 millisecond intervals when the PDU is first energized from non-powered state to prevent inrush-related equipment interaction on startup. Installed web/network monitoring card enables remote power monitoring and control. Remotely displays status of input power, load capacity, and outlet power condition via secure network or web browser interface. Offers individual outlet control to power on, off, or cycle AC output to regain control of locked-up servers and other network devices. Load ramping and shedding provides automatic power management to any type of network configuration. Supports notification and logging of input power status, event notification, output power and PDU loading conditions.

Input Receptacles:	2 x NEMA 5-15P
Output Receptacles:	8 x NEMA 5-15R

Input Voltage:	120 V AC
Output Voltage:	120 V AC
Current:	15A Input Current
Frequency:	50 Hz 60 Hz
Power Rating:	1.8kVA

Management:

Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails Sequential outlet power-on prevents inrush-related equipment interaction on startup Programmable or real-time outlet power control via web/network monitoring and control card

Status Indicators:

10 x Front Panel LEDs display Power On/Off Status for each outlet 2 x LEDs for Power Status on each Input Line Cord Digital Current Meter Display

Temperature:	0 °C (32 °F) to 40 °C (104 °F) Operating
Humidity:	95% Non-condensing

Color:	Black
Form Factor:	1U Rack-mountable Zero U Vertical Rackmount
Power Cord/Cable:	2 x 12ft
Dimensions:	1.75" Height x 1.75" Width x 14.5" Depth

Pallet Qty :	99999
Shipping Dimensions :	6.25" Height x 23.5" Width x 22.5" Depth
Case Pack Qty :	1

Package Contents:	Metered PDUMH15ATNET 15A PDU Attached NEMA 5-15P Input Power Cord Detachable C13 to NEMA 5-15P 12 ft Power Cord for Optional Secondary Input User Manual with Warranty Information
Certifications & Standards:	60950 Class A RoHS compliant

Standard Warranty:

2 Year
