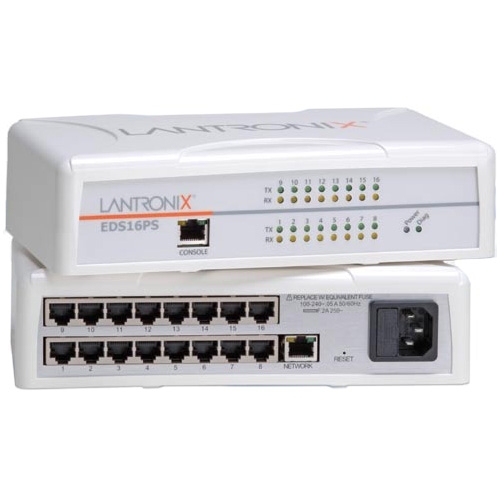

EDS016PS-02 Lantronix EDS16PS Device Server

The EDS16PS Device Server are unique, hybrid Ethernet terminal/multiport device servers which allow remote access to and management of virtually any IT/networking equipment or edge device like medical equipment, POS terminals or security equipment.

Featuring Lantronix' powerful Evolution OS, EDS delivers an unprecedented level of intelligence and safety. With AES, SSH and SSL built in, EDS provides enterprise-level security allowing safe remote access and management from practically anywhere.

General Information
Manufacturer	Lantronix, Inc
Manufacturer Part Number	EDS016PS-02
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Model	EDS16PS
Product Name	EDS16PS Device Server
Product Type	Device Server
Media & Performance
Media Type Supported	Twisted Pair
Network & Communication
Ethernet Technology	Fast Ethernet
Network Standard	10/100Base-TX
Interfaces/Ports
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Physical Characteristics
Form Factor	Desktop
Height	1.7"
Width	8.9"
Depth	5"
Weight (Approximate)	1.10 lb
Miscellaneous
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year

Mechanical
Dimensions: WxHxD (mm)	560 x 480 x 200
Mounting	Rack Mount
Enclosure	Metal
Interface
Serial interface	RS232
Serial interface number of ports	16
Serial Interface type of connector	RJ45
Network interface	1 Port Ethernet RJ45 Connector
Network interface number of ports	1
Network interface type of connector	RJ45
Power
Power Input Type	Single AC / Plug
Operating Supply Voltage	100 to 240 VAC
Power Consumption	20W
Reliability
Operating Temperature	0 to 50C
Isolation Protection	-
Surge Protection	-
Standards and Certifications	-

The EDS8PS is a unique, hybrid Ethernet terminal/multiport device server which allows remote access to and management of virtually any IT/networking equipment or edge device like medical equipment, POS terminals or security equipment. Featuring Lantronix's powerful Evolution OS, EDS delivers an unprecedented level of intelligence and safety. With AES, SSH and SSL built in, EDS provides enterprise-level security allowing safe remote access and management from practically anywhere. With no special software required, setup is a breeze with Lantronix's Windows-based DeviceInstaller, which can be used locally or remotely using Telnet, a web browser or XML. Evolution OS provides 'data-center grade' protection so each networked device carries the same level of security as corporate data center equipment and provides robust defenses to hostile Internet attacks. A "Cisco-like" command line interface (CLI) simplifies configuration and control, making it easier to integrate edge devices or data center equipment into the network.

• Quickly connect any device with a serial port to the network using robust SSH or SSL enterprise-level security
• Easily customize and enhance the EDS for your unique application with Evolution OS
• Simple device set-up, configuration and monitoring with powerful, industry-standard management tools (Web, CLI, XML, SNMP)
• Sleek design (with desktop or wall-mount capability) appropriate for installation in medical or other high visibility applications

Device Type	Device server
Width	8.9 in
Depth	5 in
Height	1.7 in
Processor / Memory / Storage
Processors Installed	1 x Intel IXP420 266 MHz
Max Supported Qty	1
RAM Installed ( Max )	64 MB SDRAM
Flash Memory Installed (Max)	8 MB flash
Networking
Form Factor	External
Ports Qty	8
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, RS-232
Network / Transport Protocol	TCP/IP, UDP/IP, ICMP/IP, LPR/LPD, ARP, SMTP, FTP, BOOTP, DHCP, DNS
Remote Management Protocol	SNMP 2, Telnet, HTTP, HTTPS, SSH-2
Status Indicators	Link activity, power, transmit, receive
Features	DHCP support, ARP support, IP address filtering
Encryption Algorithm	AES, SSL 3.0, 128-bit AES
Authentication Method	Secure Shell v.2 (SSH2)
Compliant Standards	IEEE 802.3, IEEE 802.3u
Expansion / Connectivity
Interfaces	8 x serial - RS-232 - RJ-45 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x management - RJ-45
Miscellaneous
Compliant Standards	CE, VCCI, C-Tick, EN55022, ICES-003, EN55024, EN55022 Class A, FCC Part 15 B, UL 60950-1, CSA C22.2 No. 60950-1-03
Power
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Power Consumption Operational	20 Watt
Software / System Requirements
OS Required	Microsoft Windows 98/ME/NT/2000/XP
Manufacturer Warranty
Service & Support	2 years warranty
Service & Support Details	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	131 °F
Humidity Range Operating	5 - 95%
