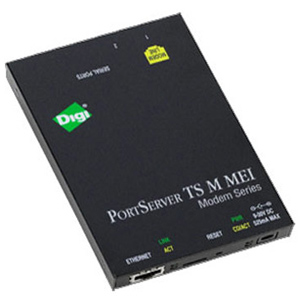

The PortServer TS 3 M MEI Serial Server allows users to create connections from serial devices to Ethernet networks and over standard phone lines. It combines the inherent benefits of data networking with proven asynchronous connectivity to deliver powerful yet simple Ethernet connectivity for any serial device.
TS 3 M MEI Serial Server is ideal for facilities that need local serial-to-Ethernet connectivity, with the added ability to establish a PPP link using a dial-up connection. The modem extends TCP/IP communications over a standard phone line, which creates a backup connection in case the primary Ethernet connection fails. This remote dial-up functionality allows users from a central location to maintain access to remote serial devices at all times. Other applications include remote site console management for small branches and remote log-in via a TCP/IP network for easy troubleshooting, monitoring, configuration or control.
General Information | |
Manufacturer | Digi International |
Manufacturer Part Number | 70001986 |
Manufacturer Website Address | http://www.digi.com |
Brand Name | Digi |
Product Line | PortServer |
Product Series | TS |
Product Model | TS 3 M MEI |
Product Name | PortServer TS 3 M MEI Serial Server |
Product Type | Device Server |
Media & Performance | |
Media Type Supported | Twisted Pair |
Network & Communication | |
Ethernet Technology | Fast Ethernet |
Network Standard | 10/100Base-TX |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Phone Line (RJ-11) | Yes |
Number of Network (RJ-45) Ports | 1 |
Physical Characteristics | |
Form Factor | Desktop |
Height | 5.3" |
Width | 3.3" |
Depth | 1" |
Weight (Approximate) | 2.25 oz |
Miscellaneous | |
Package Contents |
|
Warranty | |
Limited Warranty | 5 Year |
Digi PortServer TS 3 M. 10/100Base-T Ethernet support, RJ-45 modem serial port connection, RS-232/422/485 RJ-45 switch selectable serial port(s), Baud rates up to 230 Kbps (serial ports), Internal v.90/v.92 modem, Full modem and hardware flow control, DHCP/RARP/ARP-Ping for IP address assignment, Low latency TCP/UDP Socket Services, UDP Multicast, Telnet and Reverse Telnet, Patented RealPort technology for COM and TTY ports. Power Cord NOT included.
General Information | |
Manufacturer: | Digi International |
MFG Part #: | 70001986 |
Product Line: | PortServer |
Product Series: | TS |
Product Model: | TS 3 M MEI |
Product Type: | Device Server |
Interfaces/Ports | |
Interfaces/Ports: | 3 x RJ-45 Serial RS-232 1 x RJ-45 10/100Base-TX LAN 1 x RJ-11 Modem WAN |
Media & Performance | |
Data Transfer Rate: | 230 Kbps Serial 10 Mbps Ethernet 100 Mbps Fast Ethernet |
Management & Protocols | |
Management: | Web Based Management Telnet SNMP v1 DHCP |
Security Features: | SSH v2 |
Miscellaneous | |
Package Contents: | PortServer TS 3 M MEI Serial Server RJ-45/DB-9F Crossover Cable |
Additional Information: | Internal v.90/v.92 Modem Patented RealPort technology for COM and TTY ports |
Physical Characteristics | |
Form Factor: | External |
Dimensions: | 5.25" Height x 3.30" Width x 0.95" Depth |
Warranty | |
Standard Warranty: | 5 Year |
