TP LINK S7500-24Y4C Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots

Mfg Part Number:  S7500-24Y4C

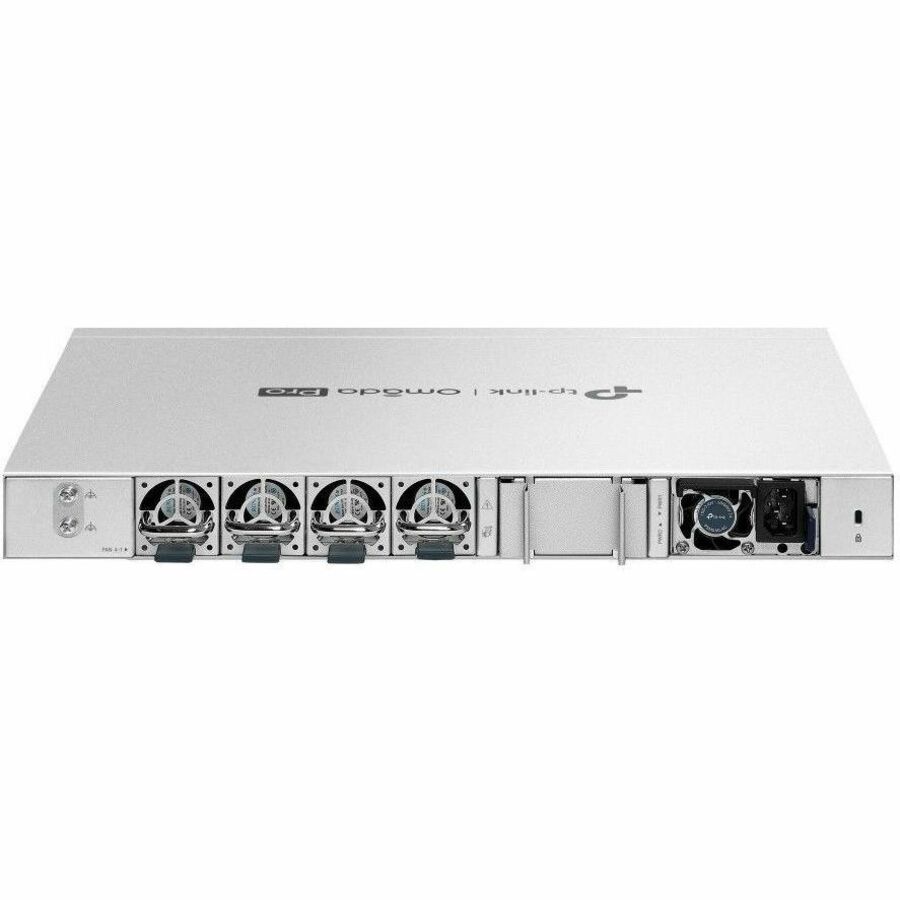

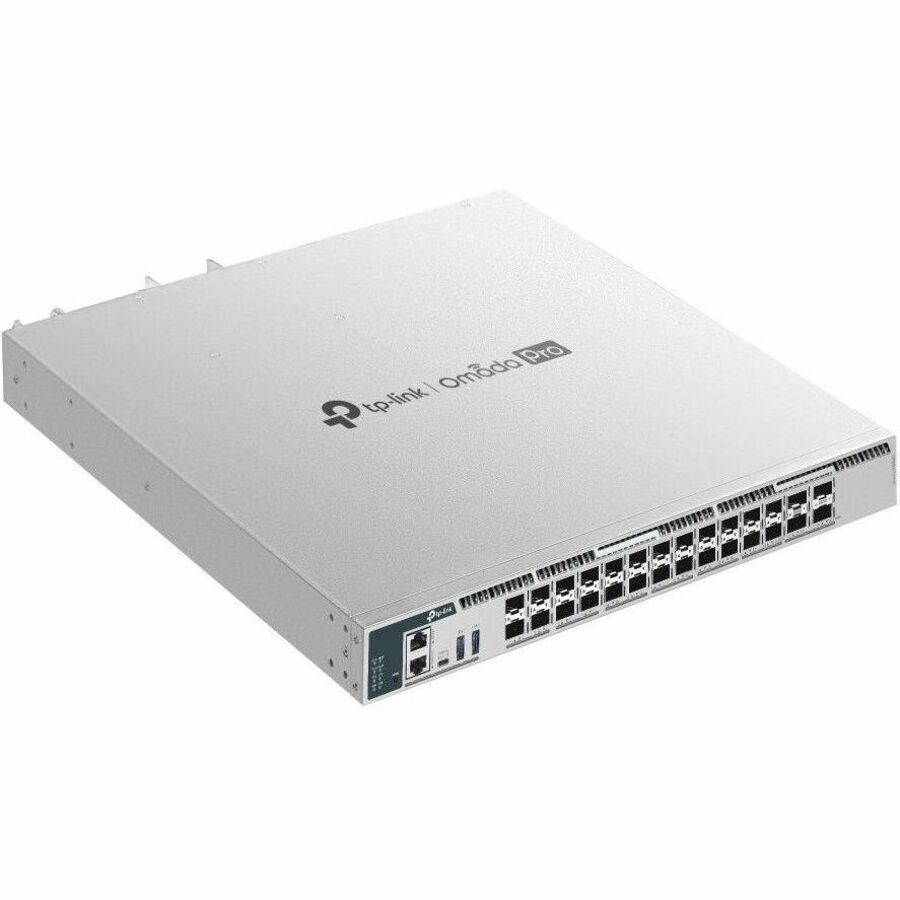

Image may not reflect the actual item.
Price: $21,158.68
Quantity:
More to Come
Last Updated: Oct 18, 2025
No Sales Tax except these states
, PO and Wire.

Omada Pro is an intelligent cloud solution for enterprise networking, offering enterprise-grade product line designed to meet the high-capacity, security, and management needs of various industries, such as MDUs, hospitality, K-12 education, public works, and more.

Main Specification
General Information
Manufacturer TP-LINK Technologies Co., Ltd
Manufacturer Part Number S7500-24Y4C
Manufacturer Website Address http://www.tp-link.com/us
Brand Name TP-Link
Product Line Omada Pro
Product Model S7500-24Y4C
Product Name Omada Pro 24-Port 25G Stackable L3 Managed Aggregation/Core Switch with 4 100G Slots
Product Type Ethernet Switch
Technical Information
Features Surge Protection
Features Secure Boot
Features DHCP Snooping
Features Loop Protection
Features Hot-swappable
Interfaces/Ports
Uplink Port Yes
Stack Port Yes
Port/Expansion Slot Details 2 × USB 3.0 USB Port
Port/Expansion Slot Details 4 × 40/100 Gigabit Ethernet QSFP28 Expansion Slot
Port/Expansion Slot Details 1 x USB Type C Console Port
Port/Expansion Slot Details 1 × RJ-45 Console Port
Port/Expansion Slot Details 1 × RJ-45 Management Port
Port/Expansion Slot Details 24 × 1/10/25 Gigabit Ethernet SFP28 Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 40 Gigabit Ethernet
Ethernet Technology 25 Gigabit Ethernet
Ethernet Technology Gigabit Ethernet
Ethernet Technology 100 Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Network Technology 25GBase-X
Network Technology 40GBase-X
Network Technology 10GBase-X
Network Technology 100GBase-X
Network Technology 1000Base-X
Maximum Data Transfer Rate 12.50 GB/s
I/O Expansions
Total Number of Expansion Slots 28
Expansion Slot Type SFP28
Expansion Slot Type QSFP28
Network & Communication
Layer Supported 3
Networking Standards IEEE 802.3ad
Networking Standards IEEE 802.1p
Networking Standards IEEE 802.1s
Networking Standards IEEE 802.1x
Networking Standards IEEE 802.3x
Networking Standards IEEE 802.1Q
Networking Standards IEEE 802.1D
Networking Standards IEEE 802.1ab
Networking Standards IEEE 802.1w
Management & Protocols
Manageable Yes
Reliability
MTBF 382117 Hour
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Frequency 50 Hz
Frequency 60 Hz
Power Source AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Power Consumption 137.63 W
Physical Characteristics
Color Family Gray
Product Color Gray
Form Factor Rack-mountable
Height 1.7"
Width 17.3"
Depth 15"
Miscellaneous
Application/Usage Enterprise
Application/Usage Retail
Application/Usage Network
Application/Usage Education
Application/Usage Security
