TP LINK

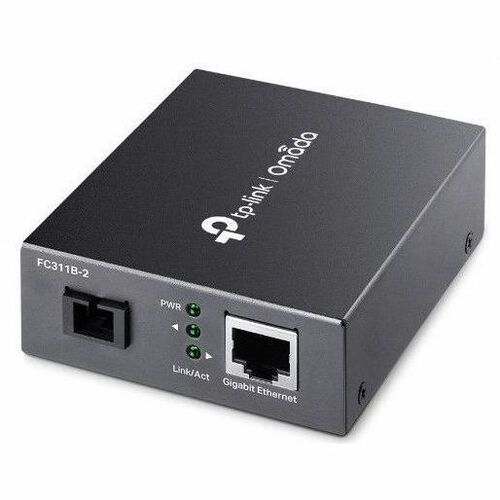

TP LINK TP-Link Network FC311B-2 Gigabit WDM Media Converter Retail
Mfg Part Number: FC311B-2 , Item #: 5166786
Image may not reflect the actual item.
Price: $31.40
Quantity:
More to Come
Last Updated: Jan 08, 2026
No Sales Tax except these states
, PO and Wire.
What This Product Does
FC311B-2 (TL-FC311B-2) is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.How This Product Works
FC311B-2 (TL-FC311B-2) adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC311B-2 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC311B-2 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter FC311A-2 is one of the products that can cooperate with FC311B-2.Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | FC311B2 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Model | FC311B-2 |
| Product Name | Gigabit WDM Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1550 nm |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 100Base-TX |
| Network Technology | 1000Base-TX |
| Physical Characteristics | |
| Form Factor | Standalone |
| Form Factor | Rack-mountable |
| Height | 1.1" |
| Width | 3.7" |
| Depth | 2.9" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Network |
| Application/Usage | Building |
| Application/Usage | Industrial Automation Equipment |
| Application/Usage | Surveillance System |
