TP LINK

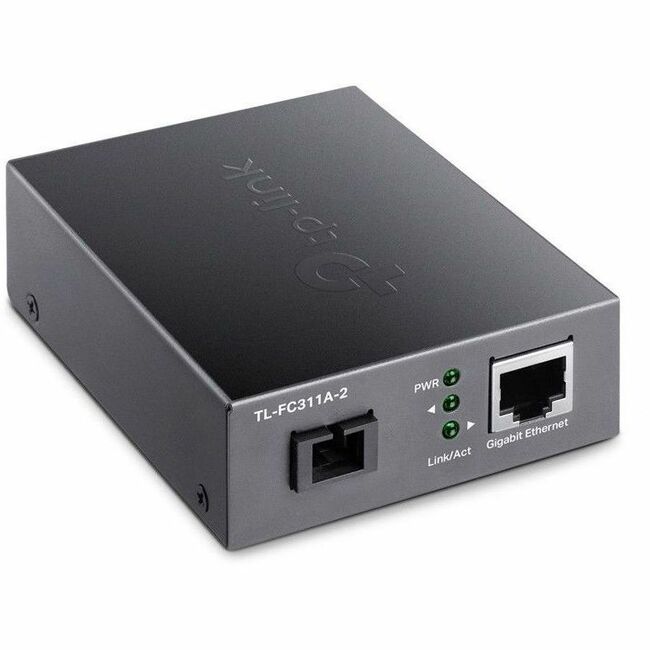

TP LINK TP-Link Network FC311A-2 Gigabit WDM Media Converter Retail
Mfg Part Number: FC311A-2 , Item #: 5166726
, PO and Wire.
What This Product Does
TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as remote video surveillance system and wireless networking.
How This Product Works
TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only one single mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | FC311A2 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Model | FC311A-2 |
| Product Name | Gigabit WDM Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 100Base-TX |
| Network Technology | 1000Base-TX |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Standalone |
| Height | 1.1" |
| Width | 3.7" |
| Depth | 2.9" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Surveillance System |
| Application/Usage | Building |
| Application/Usage | Network |
| Application/Usage | Industrial Automation Equipment |
