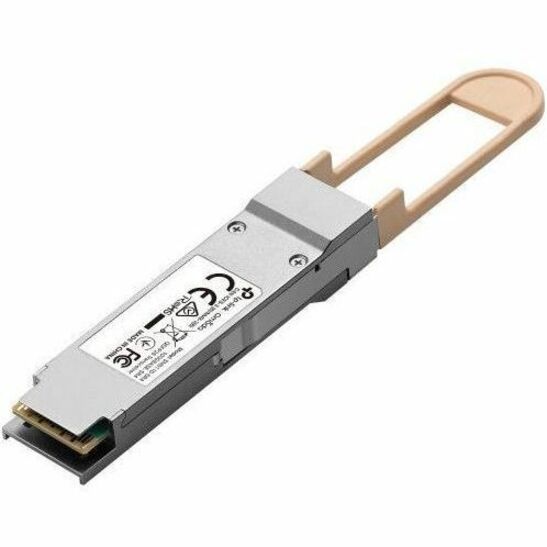

TP LINK TP-Link NT SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver Retail
Mfg Part Number: SM9110-SR4 , Item #: 5812544
Image may not reflect the actual item.
Price: $90.54
Quantity:
More to Come
Last Updated: Jan 31, 2026
No Sales Tax except these states
, PO and Wire.
What This Product Does
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SM9110-SR4 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | Omada |
| Product Model | SM9110-SR4 |
| Product Name | 100GBASE-SR4 QSFP28 Transceiver |
| Product Type | QSFP28 |
| Technical Information | |
| Application/Usage | Data Networking |
| Application/Usage | Optical Network |
| Features | Clock Data Recovery (CDR) |
| Features | Digital Diagnostics Monitoring Interface (DDMI) |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Connector Type | MTP/MPO-12 |
| Interfaces/Ports Details | 1 x MTP/MPO-12 100GBase-SR4 Ethernet Network |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
| Fiber Optic Cable Wavelength | 850 nm |
| Fiber Mode Supported | Multi-mode |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-SR4 |
| Maximum Distance Supported | 0.10 km |
| Maximum Data Transfer Rate | 103.12 Gbit/s |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Power Description | |
| Input Voltage | 3.3 V |
| Physical Characteristics | |
| Form Factor | Hot-pluggable |
| Form Factor | Hot-swappable |
| Height | 0.5" |
| Width | 4.9" |
| Depth | 0.7" |
| Weight (Approximate) | 0.05 lb |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | MSA compliant |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
