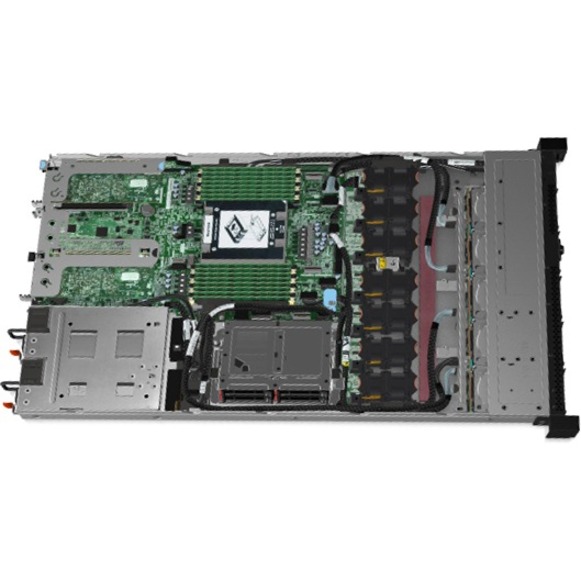

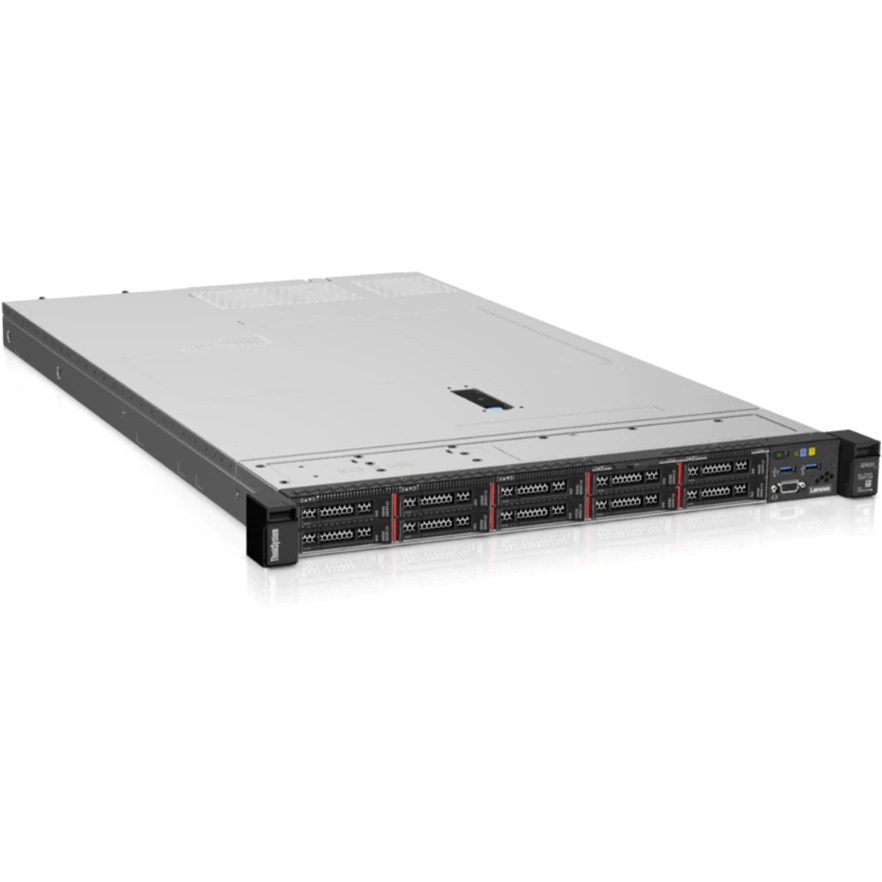

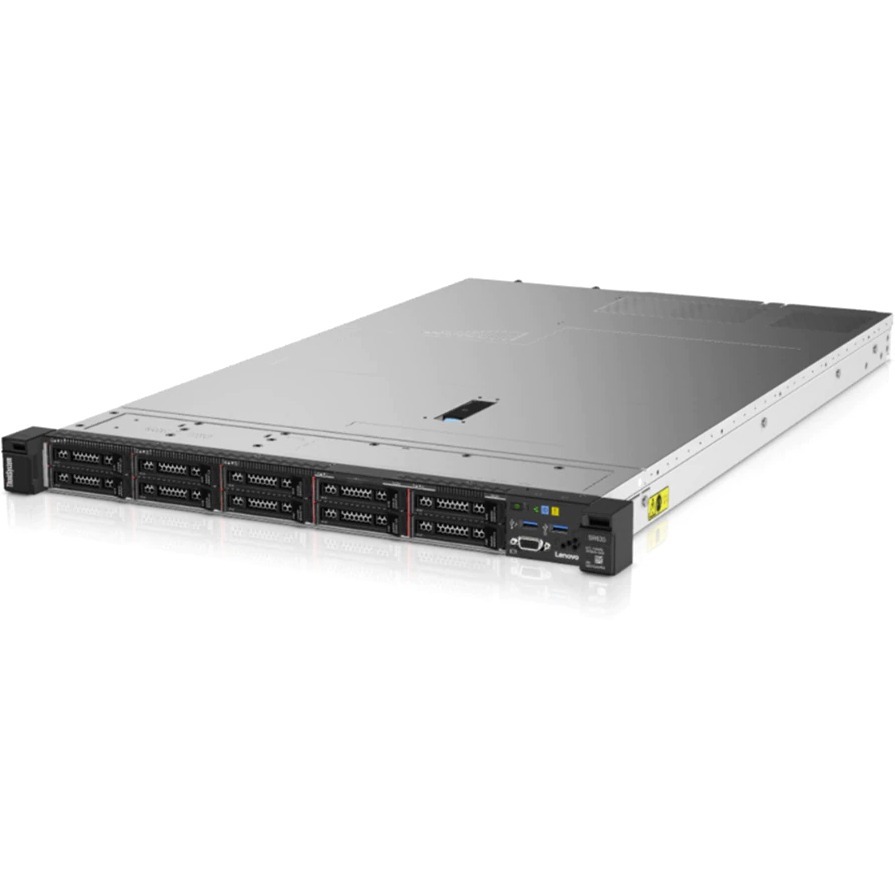

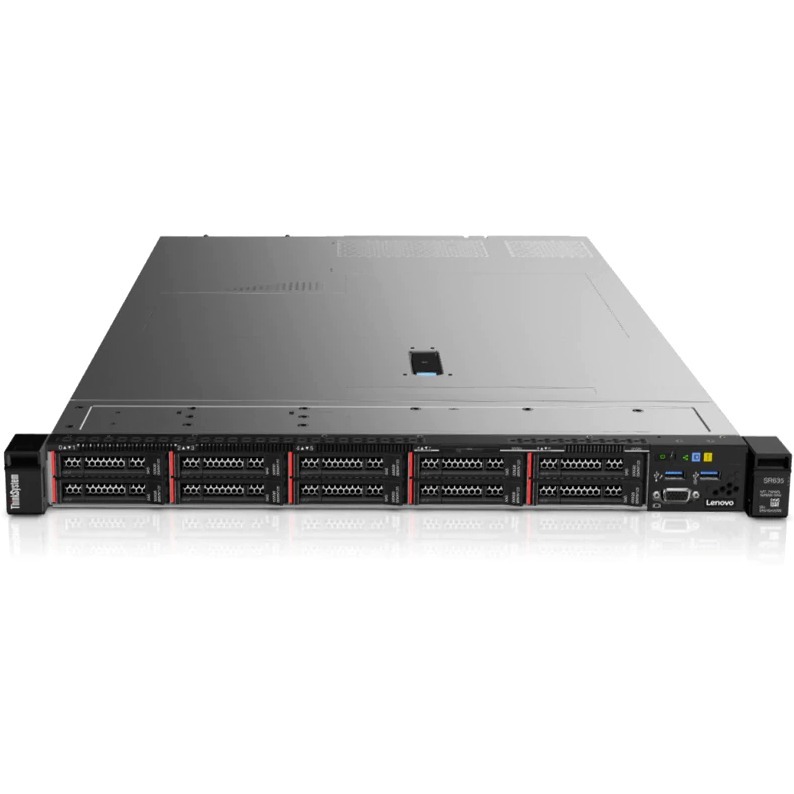

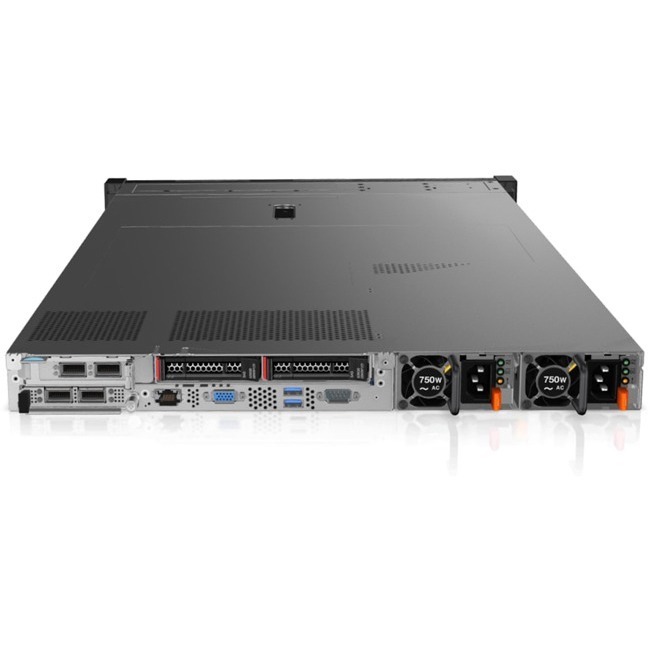

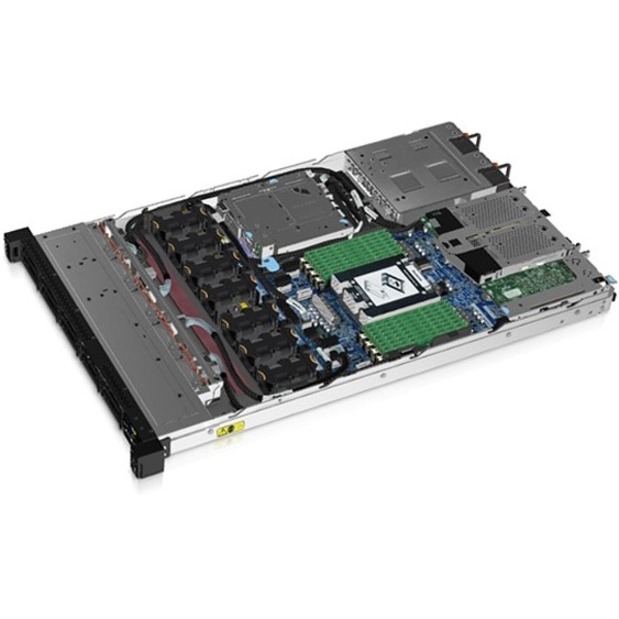

The Lenovo ThinkSystem SR635 7Y991005NA is a 1-socket 1U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With 8 cores per processor and support for the PCIe 4.0 standard for I/O, the 7Y991005NA offers the ultimate in single-socket server performance in a space-saving 1U form factor.
General Information | |
Manufacturer | Lenovo Group Limited |
Manufacturer Part Number | 7Y991005NA |
Manufacturer Website Address | http://www.lenovo.com/us/en/ |
Brand Name | Lenovo |
Product Line | ThinkSystem |
Product Series | SR635 |
Product Model | 7Y991005NA |
Product Name | ThinkSystem SR635 7Y991005NA Server |
Product Type | Server |
Processor | |
Number of Processors Supported | 1 |
Number of Processors Installed | 1 |
Processor Type | EPYC |
Processor Generation | 3rd Gen |
Processor Model | 7203P |
Processor Core | Octa-core (8 Core) |
Processor Speed | 2.80 GHz |
Cache | 64 MB |
Chipset | |
Chipset Manufacturer | AMD |
Memory | |
Standard Memory | 64 GB |
Maximum Memory Supported | 1 TB |
Memory Technology | TruDDR4 |
Memory Clock Speed | 3.20 GHz |
Error Checking | ECC |
Number of Occupied Memory Slots | 2 |
Signal Processing | Registered (Buffered) |
Controllers | |
Controller Type | Serial ATA |
RAID Supported | No |
I/O Expansions | |
Hot Swappable Bays | Yes |
Display & Graphics | |
Graphics Controller Model | AST2500 |
Graphics Memory Capacity | 512 MB |
Network & Communication | |
Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports | |
Total Number of USB Ports | 4 |
Network (RJ-45) | Yes |
Number of Network (RJ-45) Ports | 1 |
VGA | Yes |
Number of VGA Ports | 2 |
Remote Management | Yes |
Remote Management Controller | Lenovo XClarity |
Operating System | |
Operating System Supported | Windows Server 2019 |
Operating System Supported | Windows Server 2022 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
Operating System Supported | Red Hat Enterprise Linux 8.8 |
Operating System Supported | Red Hat Enterprise Linux 9.2 |
Operating System Supported | Red Hat Enterprise Linux 9.3 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP2 |
Operating System Supported | Red Hat Enterprise Linux 9.1 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP4 |
Operating System Supported | Red Hat Enterprise Linux 8.5 |
Operating System Supported | Windows Server 2016 |
Operating System Supported | Red Hat Enterprise Linux 8.3 |
Operating System Supported | Red Hat Enterprise Linux 8.7 |
Operating System Supported | Red Hat Enterprise Linux 9.0 |
Operating System Supported | Ubuntu 22.04 LTS x64 |
Operating System Supported | Red Hat Enterprise Linux 8.6 |
Operating System Supported | SUSE Linux Enterprise Server 15 SP5 |
Operating System Supported | Red Hat Enterprise Linux 8.4 |
Operating System Supported | SUSE Linux Enterprise Server 12 SP5 |
Operating System Supported | Red Hat Enterprise Linux 8.9 |
Power Description | |
Input Voltage | 120 V AC |
Input Voltage | 230 V AC |
Number of Power Supplies Supported | 2 |
Number of Power Supplies Installed | 1 |
Plug/Connector Type | C13 |
Maximum Power Supply Wattage | 1100 W |
Hot Swappable Power Supply | Yes |
Power Source | Power Supply |
Physical Characteristics | |
Form Factor | Rack |
Rack Height | 1U |
Height | 1.7" |
Width | 17.3" |
Depth | 29.7" |
Weight (Approximate) | 42.30 lb |
Miscellaneous | |
Package Contents |
|
Security Features |
|
Energy Star | Yes |
Environmentally Friendly | Yes |
Energy Efficiency Certification | ENERGY STAR 3.0 |
Warranty | |
Limited Warranty | 3 Year |
Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
