LENOVO 7Y71A002WW THINKSYSTEM DE2000H 10BASE T HYBRID FLASH ARRAY SFF

Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

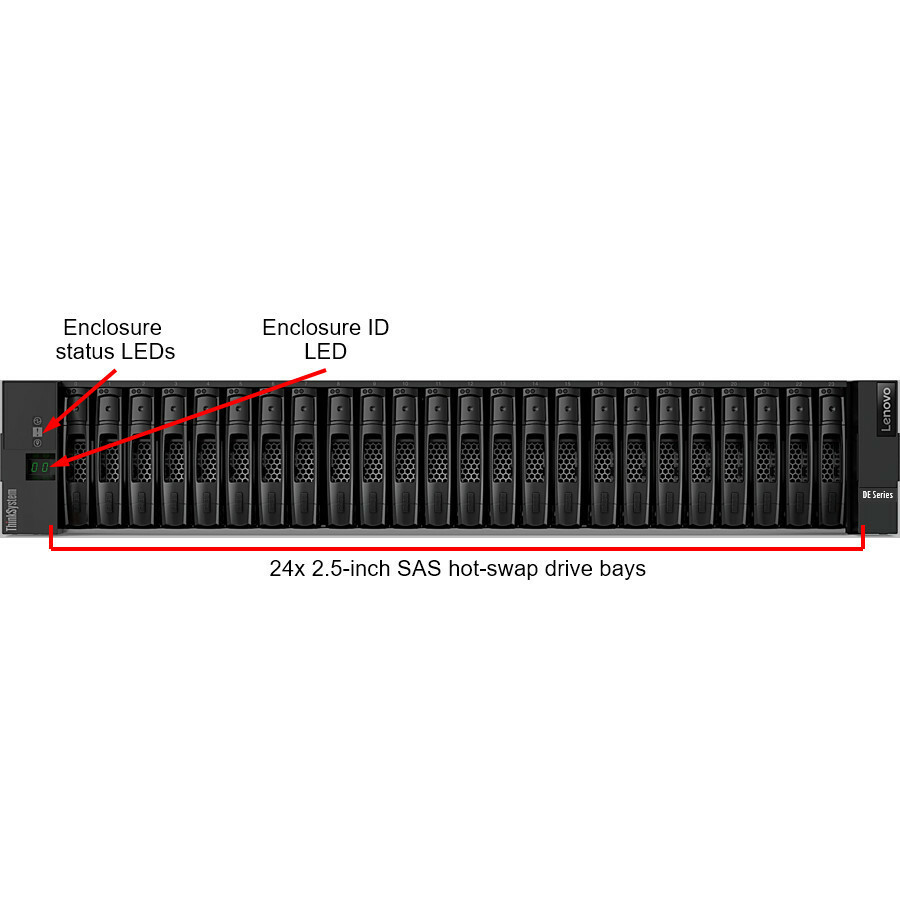

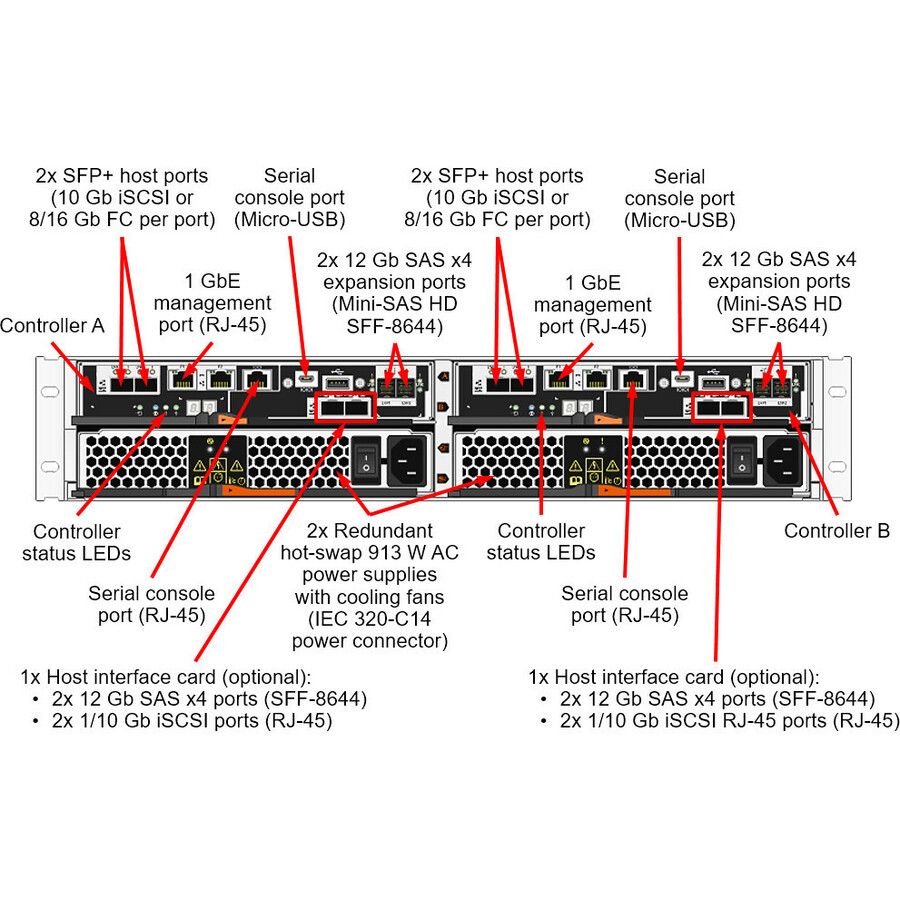

ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.

The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Y71A002WW
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	DE
Product Model	DE2000H
Product Name	ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF
Packaged Quantity	1
Product Type	SAN Storage System
Storage
Number of Hard Drives Supported	24
Number of Hard Drives Installed	No
Number of Solid State Drive Supported	24
Number of Solid State Drive Installed	No
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays	24
Number of 2.5" Bays	24
Controllers
Number of Controllers	2
Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 3, 5, 6, 10
Interfaces/Ports
Number of SAS Ports (External)	4
Total Number of USB Ports	2
Network (RJ-45)	Yes
Management & Protocols
Protocols	iSCSI
Protocols	SMI-S
Protocols	LDAP
Protocols	SSL
Protocols	SNMP
Protocols	SSH
Power Description
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	913 W
Redundant Power Supply	Yes
Physical Characteristics
Height	3.3"
Width	17.7"
Depth	21.8"
Form Factor	Rack-mountable
Rack Height	2U
Miscellaneous
Package Contents	ThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF 4 x 1 m MiniSAS HD 8644/MiniSAS HD 8644 Cables Lenovo ThinkSystem Storage Rack Mount Kit Quick Installation Guide Electronic Publications Flyer 2 x Power Cables
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
