LENOVO  Mfg Mini-Store

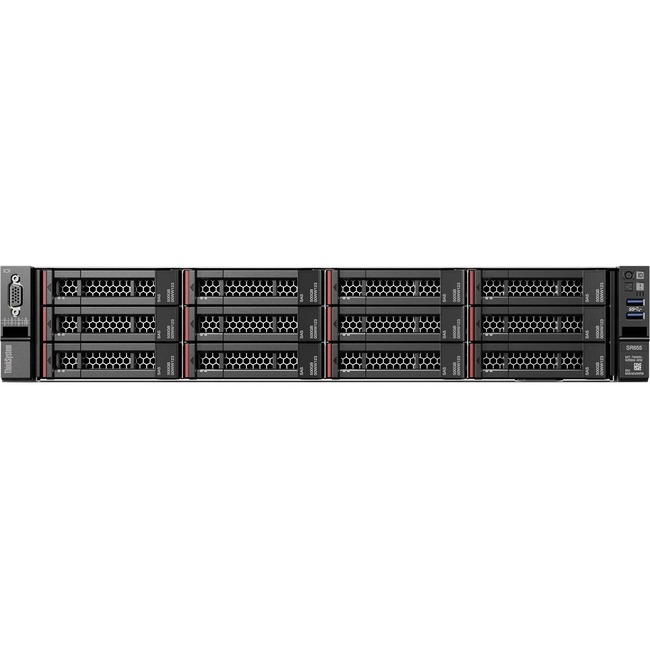

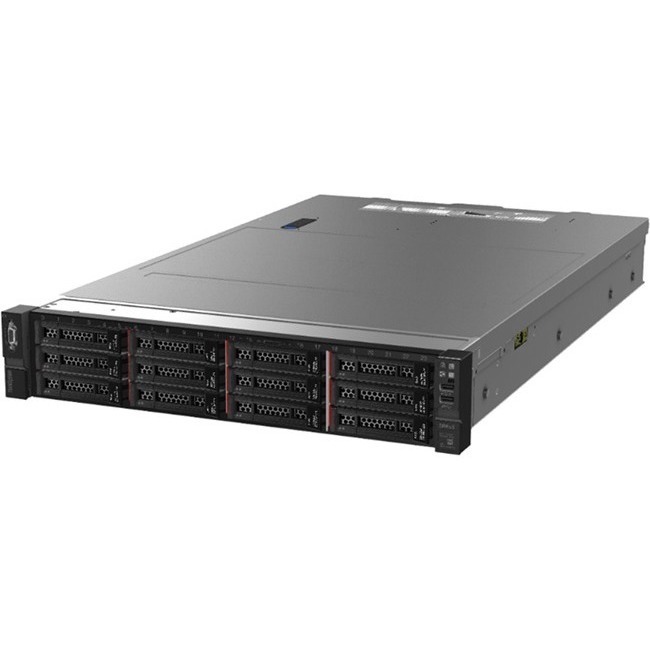

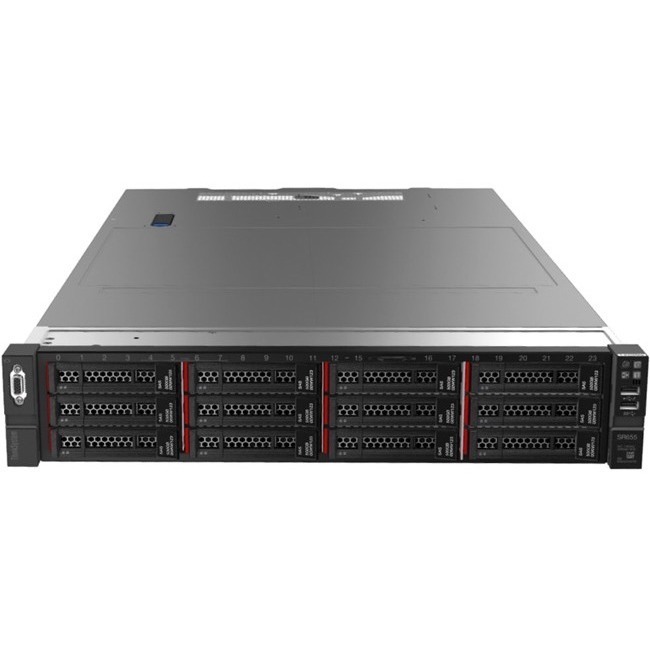

LENOVO 7Z01A053NA THINKSYSTEM SR655 7402 32GB

Mfg Part Number:  7Z01A053NA
Image may not reflect the actual item.
Price: $7,949.71 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 05, 2025
No Sales Tax except these states
, PO and Wire.

The Lenovo ThinkSystem SR655 is a 1-socket 2U server that features the AMD EPYC 7002 "Rome" and AMD EPYC 7003 "Milan" families of processors. With up to 64 cores per processor and support for the PCIe 4.0 standard for I/O, the SR655 offers the ultimate in single-socket server performance.

Main Specification
General Information
Manufacturer Lenovo Group Limited
Manufacturer Part Number 7Z01A053NA
Manufacturer Website Address http://www.lenovo.com/us/en/
Brand Name Lenovo
Product Line ThinkSystem
Product Series SR655
Product Model 7Z01A053NA
Product Name ThinkSystem SR655 7Z01A053NA Server
Product Type Server
Processor
Number of Processors Supported 1
Number of Processors Installed 1
Processor Type EPYC
Processor Generation 2nd Gen
Processor Model 7402P
Processor Core Tetracosa-core (24 Core)
Processor Speed 2.80 GHz
Cache 128 MB
Chipset
Chipset Manufacturer AMD
Memory
Standard Memory 32 GB
Maximum Memory Supported 2 TB
Memory Technology TruDDR4
Memory Clock Speed 3.20 GHz
Error Checking ECC
Total Number of Memory Slots 16
Number of Occupied Memory Slots 1
Signal Processing Registered (Buffered)
Storage
Total Hard Drive Capacity No
Optical Drive Type No
Controllers
Controller Type Serial ATA
I/O Expansions
Hot Swappable Bays Yes
Display & Graphics
Graphics Controller Model AST2500
Graphics Memory Capacity 512 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 3.1 Type-A Ports 4
Network (RJ-45) Yes
VGA Yes
Number of VGA Ports 2
Remote Management Yes
Remote Management Controller Lenovo XClarity
Operating System
Operating System Supported Red Hat Enterprise Linux 8.5
Operating System Supported SUSE Linux Enterprise Server 15 SP2
Operating System Supported Red Hat Enterprise Linux 8
Operating System Supported SUSE Linux Enterprise Server 15 SP3
Operating System Supported SUSE Linux Enterprise Server 15 SP1
Operating System Supported SUSE Linux Enterprise Server 12 SP4
Operating System Supported Red Hat Enterprise Linux 8.2
Operating System Supported Red Hat Enterprise Linux 8.1
Operating System Supported Windows Server 2022
Operating System Supported Windows Server 2019
Operating System Supported SUSE Linux Enterprise Server 12 SP5
Operating System Supported Red Hat Enterprise Linux 8.4
Operating System Supported Red Hat Enterprise Linux 7.6
Operating System Supported Red Hat Enterprise Linux 7.9
Operating System Supported Red Hat Enterprise Linux 7.7
Operating System Supported Red Hat Enterprise Linux 8.3
Operating System Supported Red Hat Enterprise Linux 7.8
Operating System Supported Windows Server 2016
Operating System No
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type C13
Maximum Power Supply Wattage 750 W
Hot Swappable Power Supply Yes
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4"
Width 17.5"
Depth 30.1"
Weight (Approximate) 78 lb
Miscellaneous
Package Contents
  • ThinkSystem SR655 7Z01A053NA Server
  • Slide Rail Kit
Security Features
  • Administrator and power-on password
  • Integrated Trusted Platform Module (TPM) supporting TPM 2.0
  • Optional Nationz TPM 2.0, available only in China (CTO only)
  • Optional chassis intrusion switch (CTO only)
  • Optional lockable front security bezel
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification ENERGY STAR 3.0
Warranty
Limited Warranty 3 Year
