LENOVO  Mfg Mini-Store

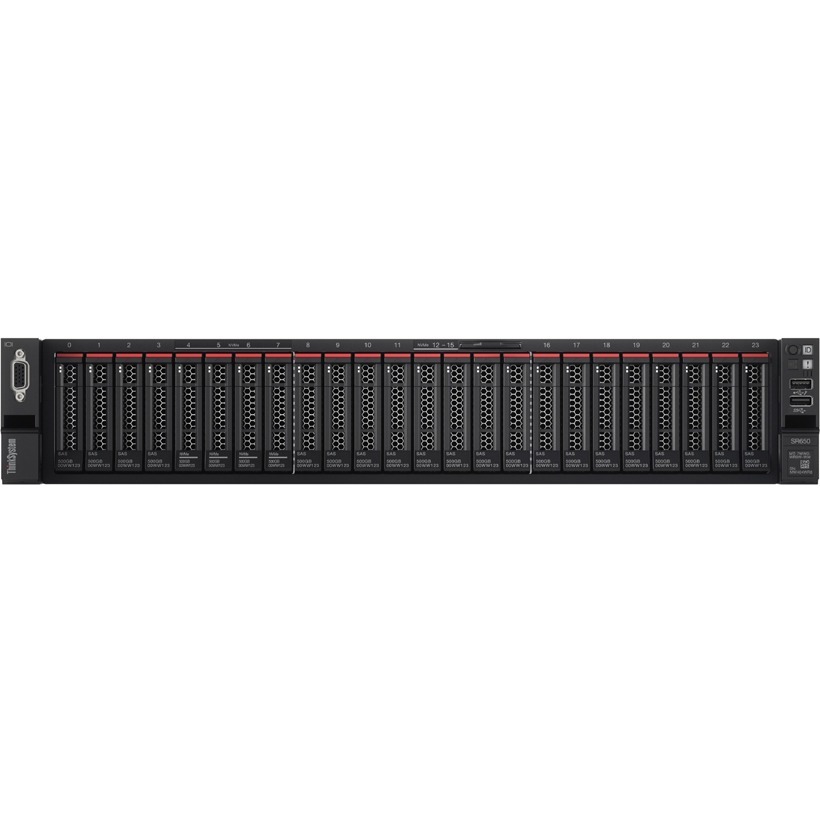

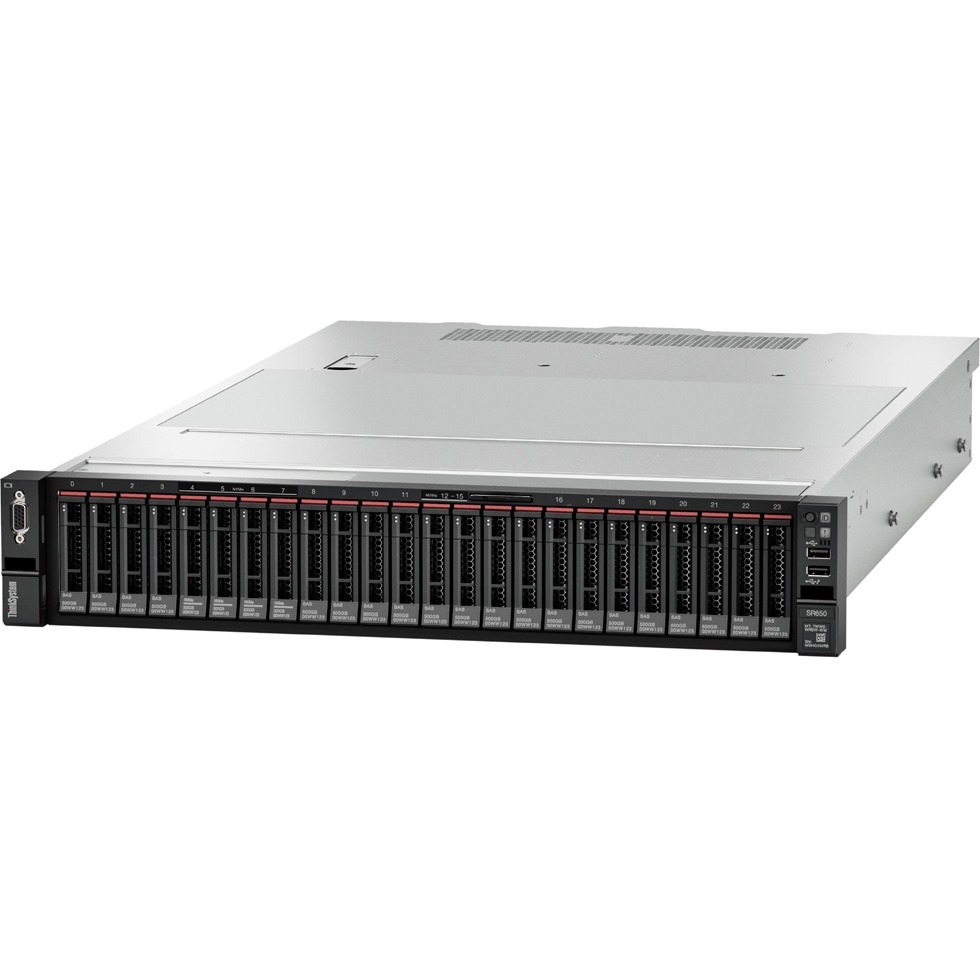

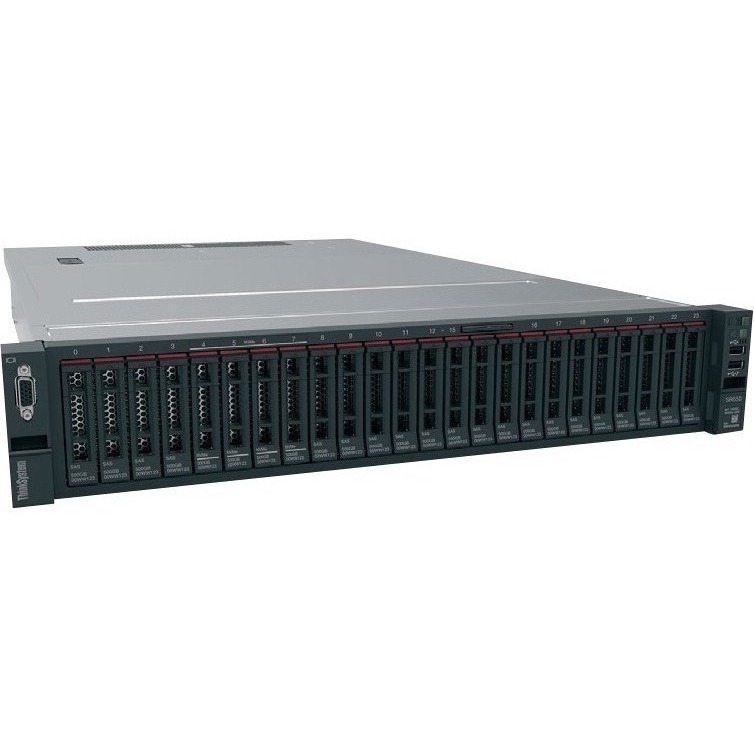

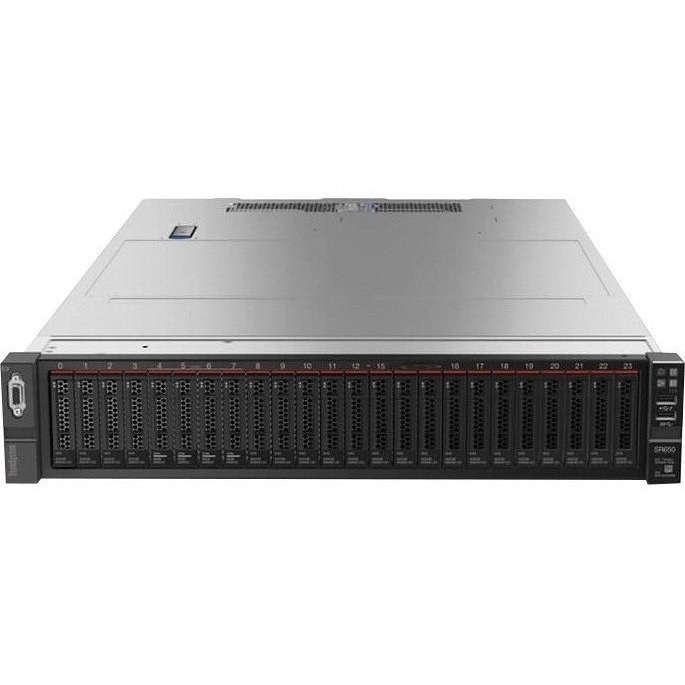

LENOVO 7X06A0NANA THINKSYSTEM SR650 5218 32GB

Mfg Part Number:  7X06A0NANA
Image may not reflect the actual item.
Price: $7,056.19 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 07, 2025
No Sales Tax except these states
, PO and Wire.

Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.

Main Specification
General Information
Manufacturer Lenovo Group Limited
Manufacturer Part Number 7X06A0NANA
Manufacturer Website Address http://www.lenovo.com/us/en/
Brand Name Lenovo
Product Line ThinkSystem
Product Series SR650
Product Model 7X06A0NANA
Product Name ThinkSystem SR650 7X06A0NANA Server
Product Type Server
Processor
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon Gold
Processor Generation 2nd Gen
Processor Model 5218
Processor Core Hexadeca-core (16 Core)
Processor Speed 2.30 GHz
Cache 22 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C624
Memory
Standard Memory 32 GB
Maximum Memory Supported 3 TB
Memory Technology TruDDR4
Memory Clock Speed 2.93 GHz
Error Checking ECC
Total Number of Memory Slots 24
Number of Occupied Memory Slots 1
Intel Optane Memory Ready Yes
Storage
Total Hard Drive Capacity No
Optical Drive Type No
Controllers
Controller Type Serial ATA/600
Controller Type 12Gb/s SAS
RAID Supported No
I/O Expansions
Total Number of Expansion Slots 2
PCI Express x8 (Gen 3.x) Slots 2
PCI Express Details 2x PCIe x8
Display & Graphics
Graphics Controller Model G200e
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 4
Number of USB 2.0 Ports 1
Number of USB 3.0 Ports 3
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 4
VGA Yes
Number of VGA Ports 2
Remote Management Yes
Remote Management Controller XClarity Controller (XCC)
Operating System
Operating System Supported SUSE Linux Enterprise Server 15 SP1
Operating System Supported SUSE Linux Enterprise Server 15 SP3
Operating System Supported SUSE Linux Enterprise Server 12 SP5
Operating System Supported Red Hat Enterprise Linux 8
Operating System Supported SUSE Linux Enterprise Server 15 SP2
Operating System Supported Red Hat Enterprise Linux 8.4
Operating System Supported Red Hat Enterprise Linux 7.6
Operating System Supported Red Hat Enterprise Linux 8.5
Operating System Supported Red Hat Enterprise Linux 7.9
Operating System Supported Red Hat Enterprise Linux 7.7
Operating System Supported SUSE Linux Enterprise Server 12 SP4
Operating System Supported Red Hat Enterprise Linux 8.2
Operating System Supported Red Hat Enterprise Linux 8.1
Operating System Supported Windows Server 2022
Operating System Supported Windows Server 2019
Operating System Supported SuSE Linux Enterprise Server 15
Operating System Supported Red Hat Enterprise Linux 8.3
Operating System Supported Red Hat Enterprise Linux 7.8
Operating System Supported Windows Server 2016
Operating System No
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 1
Plug/Connector Type C13/C14
Maximum Power Supply Wattage 750 W
Hot Swappable Power Supply Yes
Physical Characteristics
Form Factor Rack
Rack Height 2U
Height 3.4"
Width 17.5"
Depth 30.1"
Weight (Approximate) 70.55 lb
Miscellaneous
Package Contents
  • ThinkSystem SR650 7X06A0NANA Server
  • Slide Rail Kit
Security Features
  • Power-on password
  • Administrator's password
  • Secure firmware updates
  • Onboard Trusted Platform Module (TPM)
  • Self-encrypting drives (SEDs) with support for enterprise key managers - see the SED encryption key management section
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification ENERGY STAR 3.0
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
