HANWHA TECHWIN

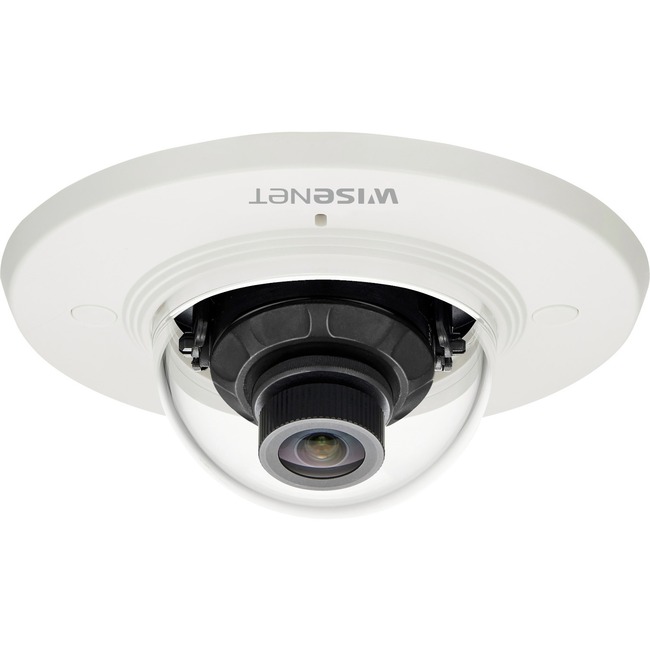

HANWHA TECHWIN XND-8020F WiseNet X powered by WiseNet 5 network flush mount dome camera 5MP @ 30fps WDR off/on(120dB) 3.7mm fixed lens (97.5 ) H.265/H.264/MJPEG WiseStream II compression technology 120dB WDR USB port for easy installation
Mfg Part Number: XND-8020F , Item #: 2922168
Image may not reflect the actual item.
Price: $357.36
+ Free Shipping
Quantity:
More to Come
Last Updated: Dec 14, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XND8020F |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XND-8020F |
| Product Name | 5MP Indoor Flush Mount Compact Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 97.5°/ V : 71.9°/D: 126.2° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.264 (MPEG-4 Part 10/AVC) |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3.70 mm |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Flush Mount |
| Form Factor | Dome |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | Ivory |
| Height | 5.1" |
| Diameter | 3.9" |
| Weight (Approximate) | 9.70 oz |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Defog |
| Features | Day/Night |
| Features | Digital Image Stabilization |
| Features | Wide Dynamic Range |
| Features | Automatic White Balance |
| Features | Privacy Masking |
| Features | 3D Digital Noise Reduction |
| Features | Highlight Compensation (HLC) |
| Features | Audio Detection |
| Features | Audio Compression |
| Features | 2D Digital Noise Reduction (2DNR) |
| Features | Back Light Compensation (BLC) |
| Features | SD Card Local Storage |
| Features | Auto Gain Control |
| Indoor/Outdoor | Indoor |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
