HANWHA TECHWIN

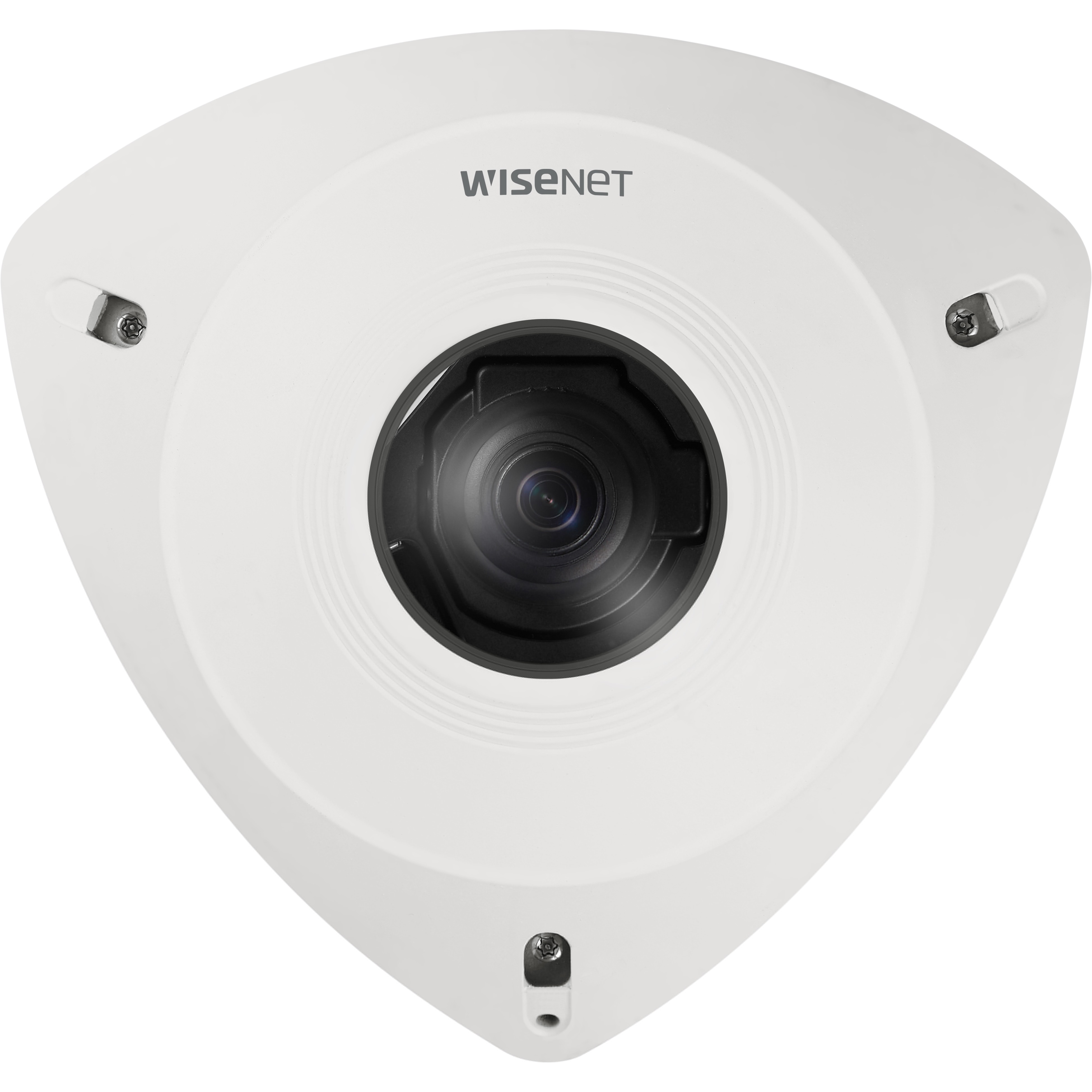

HANWHA TECHWIN TNV-8011C COMPACT CORNER MOUNT CAMERA, 5MP @ 30FPS, TRIPLE CODEC, WDR 120DB, 2.3MM FIXED,
Mfg Part Number: TNV-8011C , Item #: 4605170
Image may not reflect the actual item.
Price: $681.61
+ Free Shipping
Quantity:
More to Come
Last Updated: Mar 05, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNV-8011C |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | T |
| Product Model | TNV-8011C |
| Product Name | 5MP Vandal Corner Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H: 131° / V: 93.4° / D: 174° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | H.264M |
| Video Formats | H.265H |
| Video Formats | MJPEG |
| Video Formats | H.264H |
| Video Formats | H.265B |
| Video Formats | H.265M |
| Video Formats | H.264B |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.30 mm |
| Lens Included | Yes |
| Maximum Aperture | f/2.3 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Corner Mount |
| Durability | Vandal Resistant |
| Color Family | White |
| Product Color | White |
| Height | 6.5" |
| Width | 6.7" |
| Depth | 3.1" |
| Weight (Approximate) | 1.83 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Alarm Triggering |
| Features | Wide Dynamic Range |
| Features | Built-in Mechanical ICR |
| Features | Enter/Exit Detector |
| Features | Audio Detection |
| Features | Auto Gain Control |
| Features | Digital Noise Reduction |
| Features | Privacy Masking |
| Features | Automatic White Balance |
| Features | Back Light Compensation (BLC) |
| Features | SD Card Local Storage |
| Features | Audio Compression |
| Features | Tamper Detection |
| Features | Digital Image Stabilization |
| Features | Microphone In |
| Features | Day/Night |
| Features | Defog |
| Features | Motion Detection |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP6K9K |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 3 Year |
