HANWHA TECHWIN

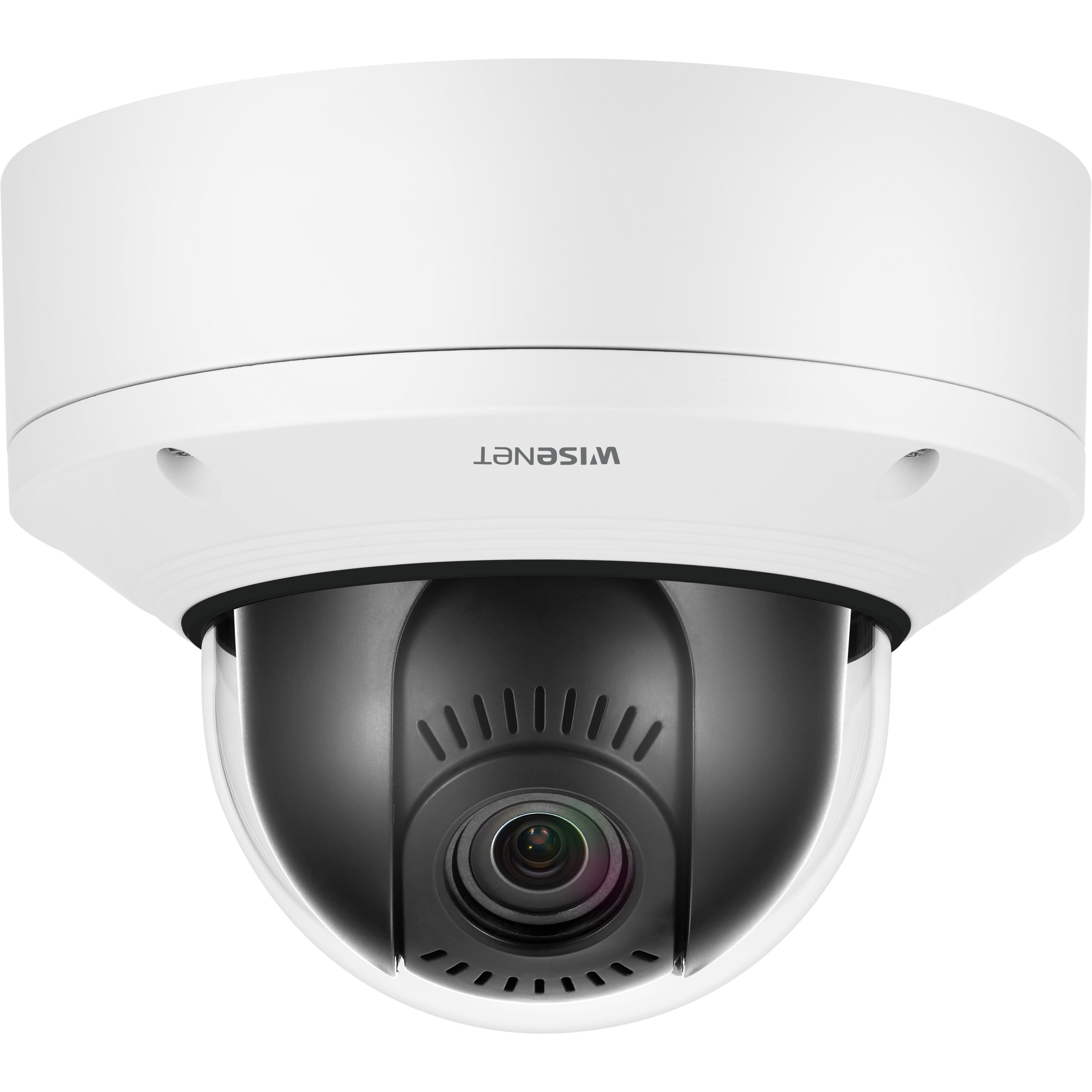

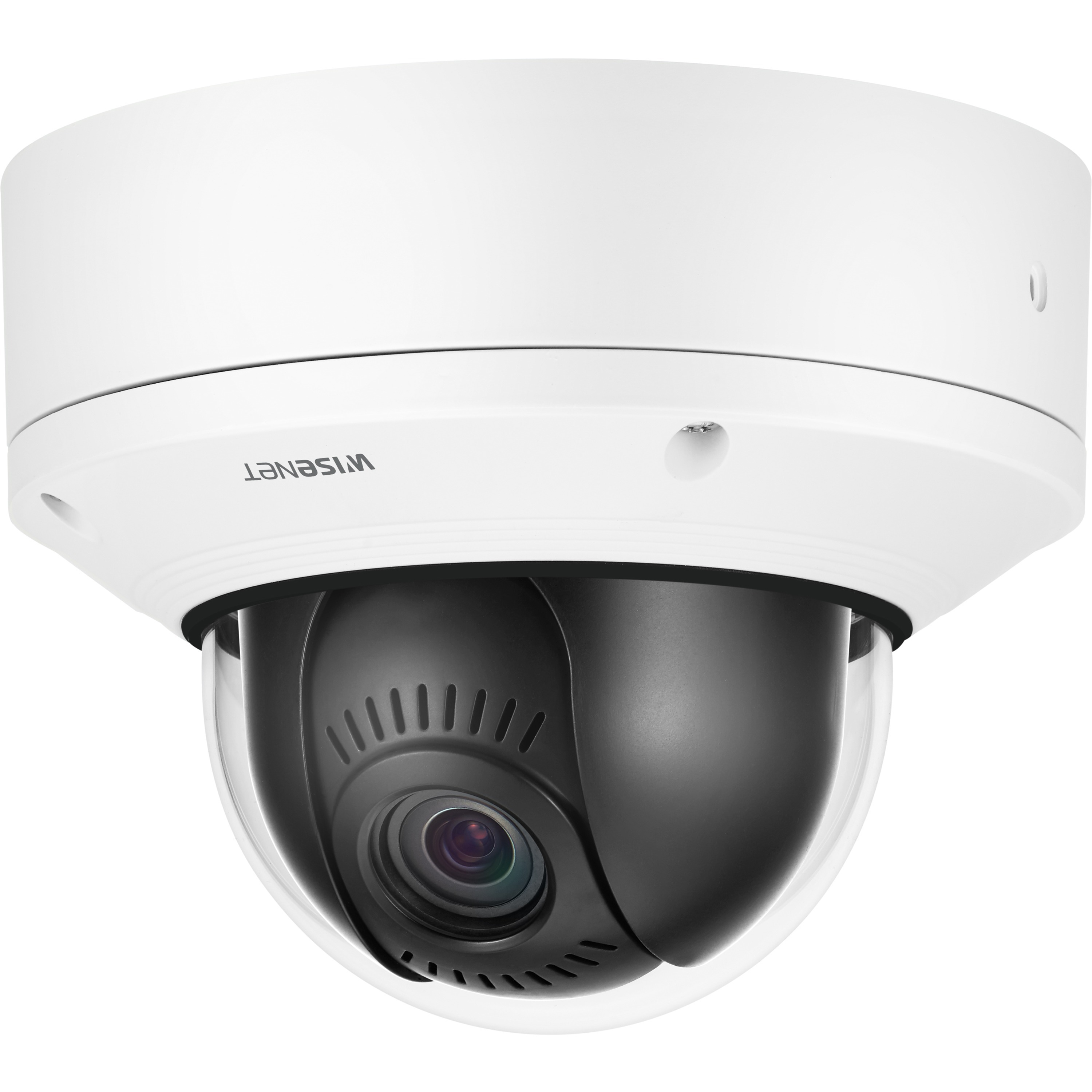

HANWHA TECHWIN XND-8081VZ Wisenet X Plus powered by Wisenet 5 network indoor vandal dome camera
Mfg Part Number: XND-8081VZ , Item #: 3565559
Special Note: Jun 18, 2019
NCNR
, PO and Wire.
The Wisenet X Plus powered by Wisenet 5 network indoor vandal dome camera features a modular structure, 5MP, Full HD(1080p) @ 60fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, IP52, IK10, white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XND8081VZ |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XND-8081VZ |
| Product Name | 5MP Vandal-Resistant Indoor Network Dome PTRZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | HD |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome |
| Color Supported | Color |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Zoom |
| Minimum Focal Length | 3.60 mm |
| Maximum Focal Length | 9.40 mm |
| Optical Zoom | 2.6x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Hanging Mount |
| Form Factor | Dome |
| Product Color | White |
| Height | 4.9" |
| Width | 6.3" |
| Diameter | 6.3" |
| Weight (Approximate) | 3.20 lb |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Package Contents |
|
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
