VIVOTEK

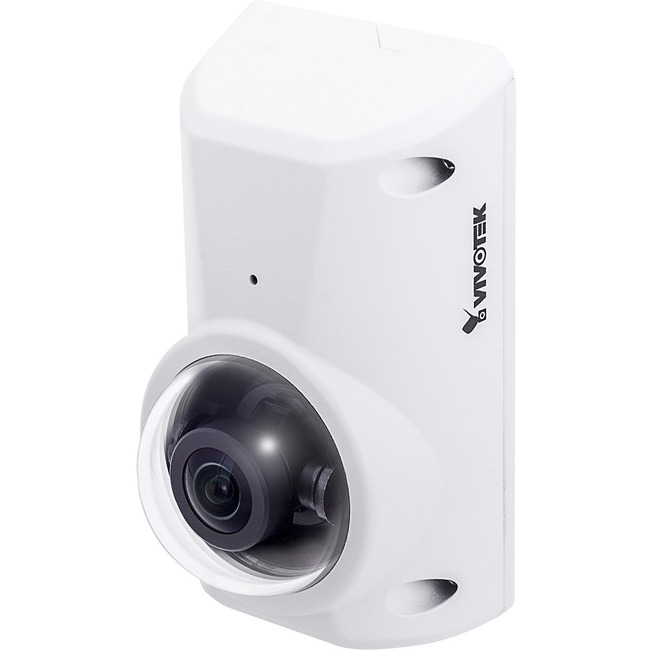

Vivotek C Series CC9380-HV - Network panoramic camera - dome - outdoor, indoor - vandal / weatherproof - color (Day&Night) - 5 MP - 2560 x 1920 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - PoE
Mfg Part Number: CC9380-HV , Item #: 4333626
, PO and Wire.
VIVOTEK's CC9380-HV is an update on the widely popular CC8370-HV, now available in 5MP with H.265 compression.
The CC9380-HV is a true day/night camera, with a removable IR-cut filter. Through the use of a single fisheye lens set to a 180° panoramic view, the seemless image provides a very large vertical field of view. This allows for amazing close range surveillance coverage in a low profile design.
To meet the demands of any harsh outdoor application, the CC9380-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and high pressure water jets from any direction, while its IK10- rated housing provides robust protection against acts of vandalism. In addition the CC9380-HV continues the trend of its predecessor CC8370-HV and has an anti-ligature housing, to reduce chances of suicide and/or self inflicted harm.
| General Information | |
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | CC9380-HV |
| Manufacturer Website Address | http://www.vivotek.com |
| Brand Name | Vivotek |
| Product Series | C |
| Product Model | CC9380-HV |
| Product Name | Anti-Ligature Fisheye Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Color Supported | Monochrome |
| Field of View | 180° (Horizontal) 120° (Vertical) 180° (Diagonal) |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 1.45 mm |
| Lens Included | Yes |
| Maximum Aperture | f/2.2 |
| Exposure | |
| Shortest Shutter Speed | 1/32000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mount Type | Bracket Mount |
| Form Factor | Fisheye |
| Durability | Dust Resistant |
| Durability | Water Resistant |
| Durability | Vandal Proof |
| Durability | Weather Proof |
| Color Family | White |
| Product Color | White |
| Height | 4.5" |
| Width | 2.6" |
| Depth | 2.3" |
| Weight (Approximate) | 11.92 oz |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Password Protection |
| Features | Wide Dynamic Range |
| Features | Privacy Masking |
| Features | Highlight Compensation (HLC) |
| Features | Tamper Detection |
| Features | Audio Detection |
| Features | Back Light Compensation (BLC) |
| Features | 3D Noise Reduction |
| Features | Audio Compression |
| Features | SD Card Local Storage |
| Features | Built-in Microphone |
| Features | Motion Detection |
| Features | HTTPS Encryption |
| Features | Defog |
| Features | Day/Night |
| Indoor/Outdoor | Indoor/Outdoor |
| Package Contents |
|
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 4 Year |
